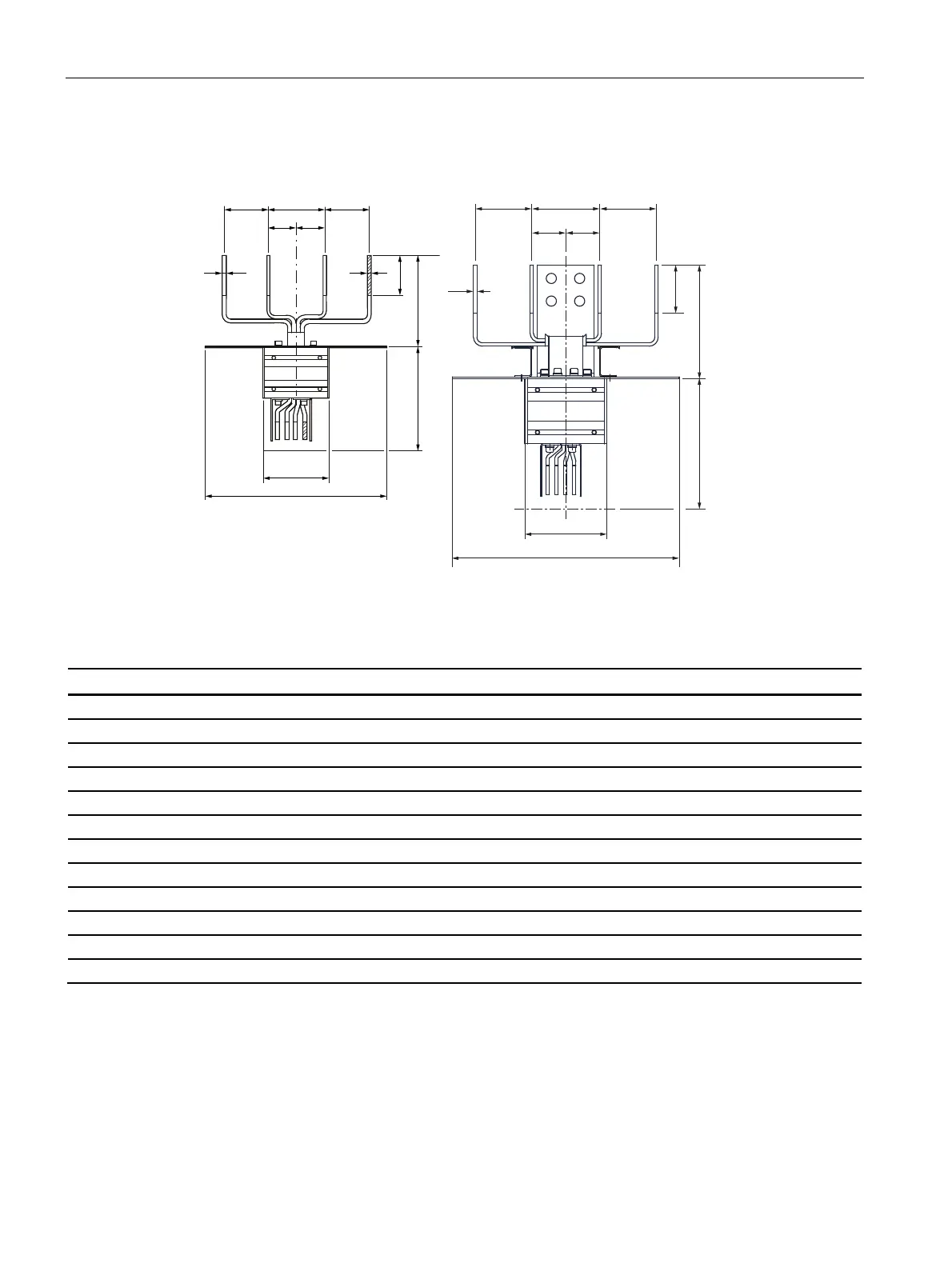

Dimension drawings
8.3 Feeder units
SIVACON 8PS - Configuring with LX system
176 Configuration Manual, 10/2011, A5E02194899-02
LX.0141 to LX.1041, LX.0151 to LX.1051
O
N
P
/
K
H
I
L
G
/
/
T
Q
169B
3(11
I
Q
T
G
K
N
O
P
H
/ / / 1
LX.0141 to LX.1041 LX.0151 to LX.1051
FA, FL.
Type d e f h
1)
i
1)
k
2)
l m n q
LXA(C)0141(51)-FA(FL.) 100 120 100 6 6 85 200 230 145 400
LXA(C)0241(51)-FA(FL.) 100 120 100 8 8 85 200 230 145 400
LXC0341(51)-FA(FL.) 100 120 100 6 6 85 200 230 145 400
LXA(C)0441(51)-FA(FL.) 100 120 100 8 8 85 200 230 145 400
LXC0541(51)-FA(FL.) 100 120 100 6 6 85 200 230 145 400
LXA0541(51)-FA(FL.) 100 120 100 8 8 85 200 230 145 400
LXA(C)0641(51)-FA(FL.) 100 120 100 6 6 85 200 230 145 400
LXA(C)0741(51)-FA(FL.) 100 120 100 8 8 85 200 230 145 400
LXA(C)0841(51)-FA(FL.) 100 120 100 8 8 85 200 230 145 400
LXA(C)0941(51)-FA(FL.) 100 120 100 6 6 85 200 230 145 400
LXA1041(51)-FA(FL.) 100 120 100 8 8 85 200 230 145 400
LXC1041(51)-FA(FL.)
3)
- - - - - - - - - -
Dimensioning of the connections for copper-plating see Distribution board connection units
(Page 182)
1)
The PE connection (broken line in the figure) has a thickness of 6 mm
2)
Termination surface, not isolated
3)
On request
