Siemens SIVACON 8PS User Manual

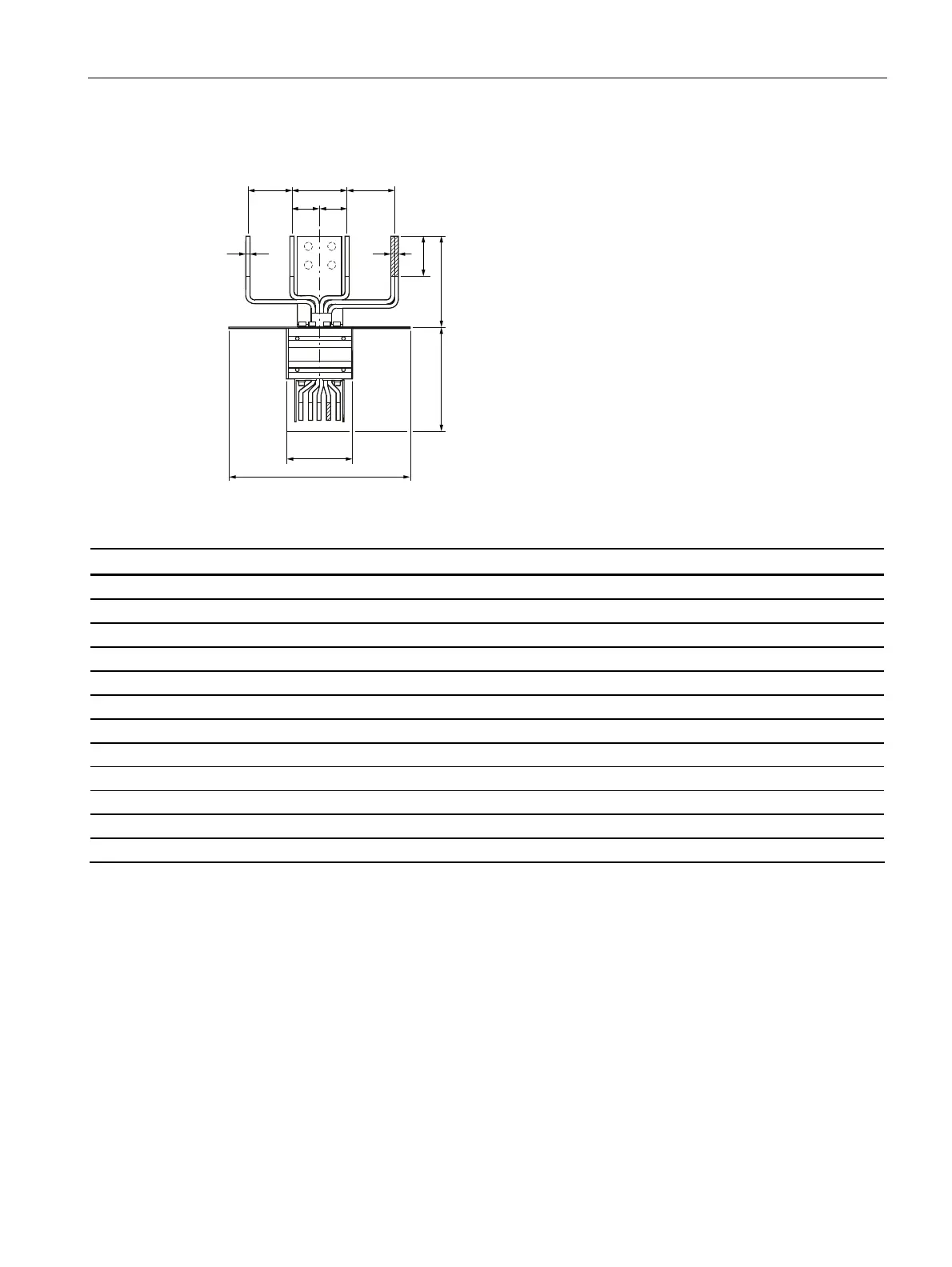

Dimension drawings
8.3 Feeder units
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
177
LX.0152 to LX.1052
O
N
P
/
K
H
I
L
G
/
/
1
T
Q
169B
FA, FL.
Type d e f h
1)
i
1)
k
2)
l m n q
LXA(C)0152-FA(FL.) 100 120 103.5 6 12 85 200 230 145 400
LXA(C)0252-FA(FL.) 100 120 104.5 8 16 85 200 230 145 400
LXA(C)0352-FA(FL.) 100 120 103.5 6 12 85 200 230 145 400
LXA(C)0452-FA(FL.) 100 120 104.5 8 16 85 200 230 145 400
LXC0552-FA(FL.) 100 120 103.5 6 12 85 200 230 145 400
LXA0552-FA(FL.) 100 120 104.5 8 16 85 200 230 145 400
LXA(C)0652-FA(FL.) 100 120 103.5 6 12 85 200 230 145 400
LXA(C)0752-FA(FL.) 100 120 104.5 8 16 85 200 230 145 400
LXA(C)0852-FA(FL.) 100 120 104.5 8 16 85 200 230 145 400
LXA(C)0952-FA(FL.) 100 120 103.5 6 12 85 200 230 145 400
LXA1052-FA(FL.) 100 120 104.5 8 16 85 200 230 145 400
LXC1052-FA(FL.)
3)
- - - - - - - - - -
Dimensioning of the connections for copper-plating see Distribution board connection units
(Page 182)
1)
The PE connection (broken line in the figure) has a cross-section of 6 mm
2)
Termination surface, not isolated
3)
On request
