Dimension drawings
8.3 Feeder units
SIVACON 8PS - Configuring with LX system
178 Configuration Manual, 10/2011, A5E02194899-02

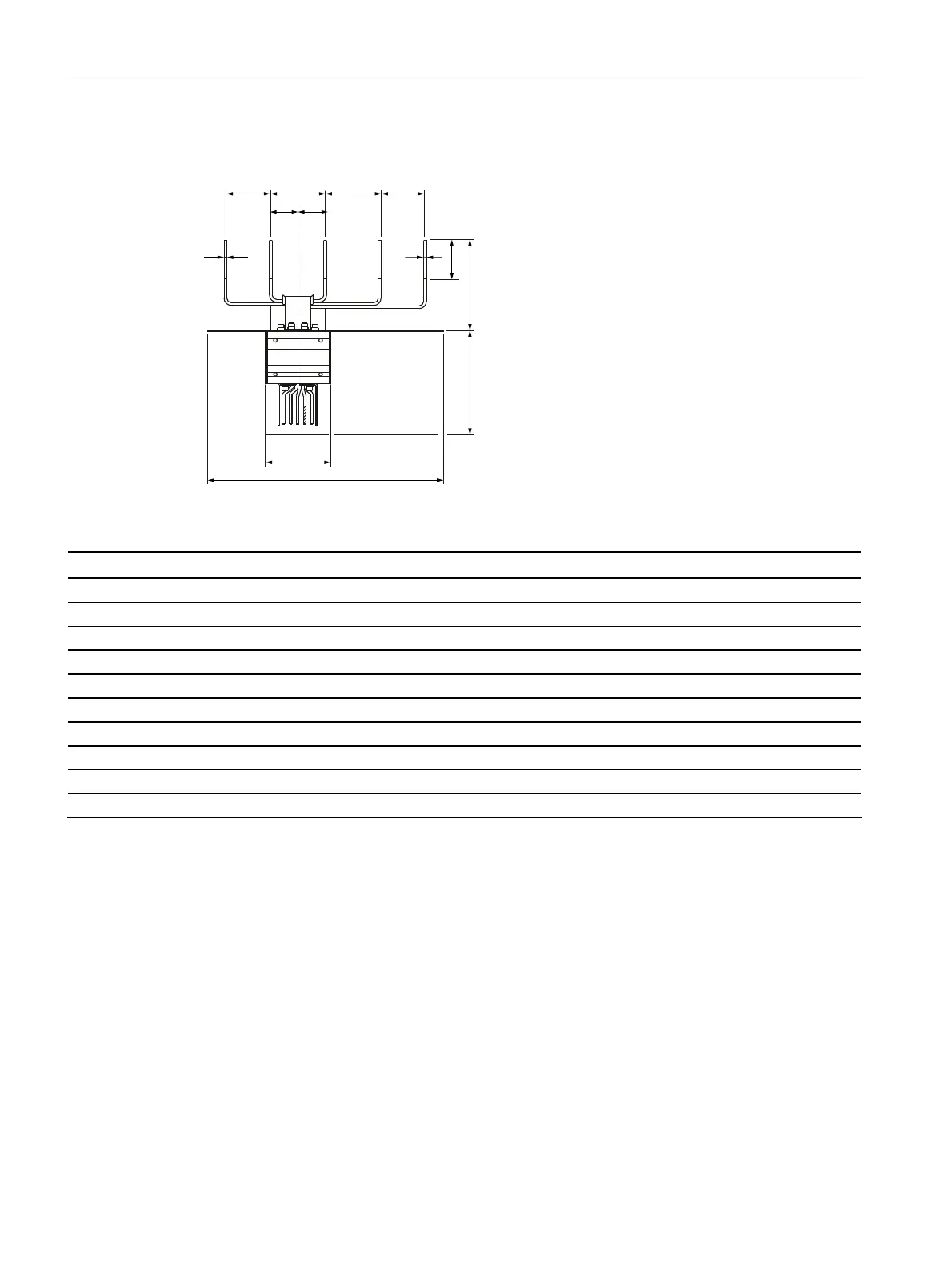

LXC.0153 to LXC.1053
O
N
P
/
K
H
I
J
L
G
/
/
1
3(
T
Q
FA, FL.
Type d e f g h i j k
1)
l m n q
LXC0153-FA(FL.) 100 120 120 100 6 6 6 85 200 230 145 520
LXC0253-FA(FL.) 100 120 120 100 8 8 8 85 200 230 145 520
LXC0353-FA(FL.) 100 120 120 100 6 6 6 85 200 230 145 520
LXC0453-FA(FL.) 100 120 120 100 8 8 8 85 200 230 145 520
LXC0553-FA(FL.) 100 120 120 100 6 6 6 85 200 230 145 520
LXC0653-FA(FL.) 100 120 120 100 6 6 6 85 200 230 145 520
LXC0753-FA(FL.) 100 120 120 100 8 8 8 85 200 230 145 520
LXC0853-FA(FL.) 100 120 120 100 8 8 8 85 200 230 145 520
LXC0953-FA(FL.) 100 120 120 100 6 6 6 85 200 230 145 520
LXC1053-FA(FL.)
2)
- - - - - - - - - - - -
Dimensioning of the connections for copper-plating see Distribution board connection units
(Page 182)
1)
Termination surface, not isolated
2)
On request
