Siemens SIVACON 8PS User Manual

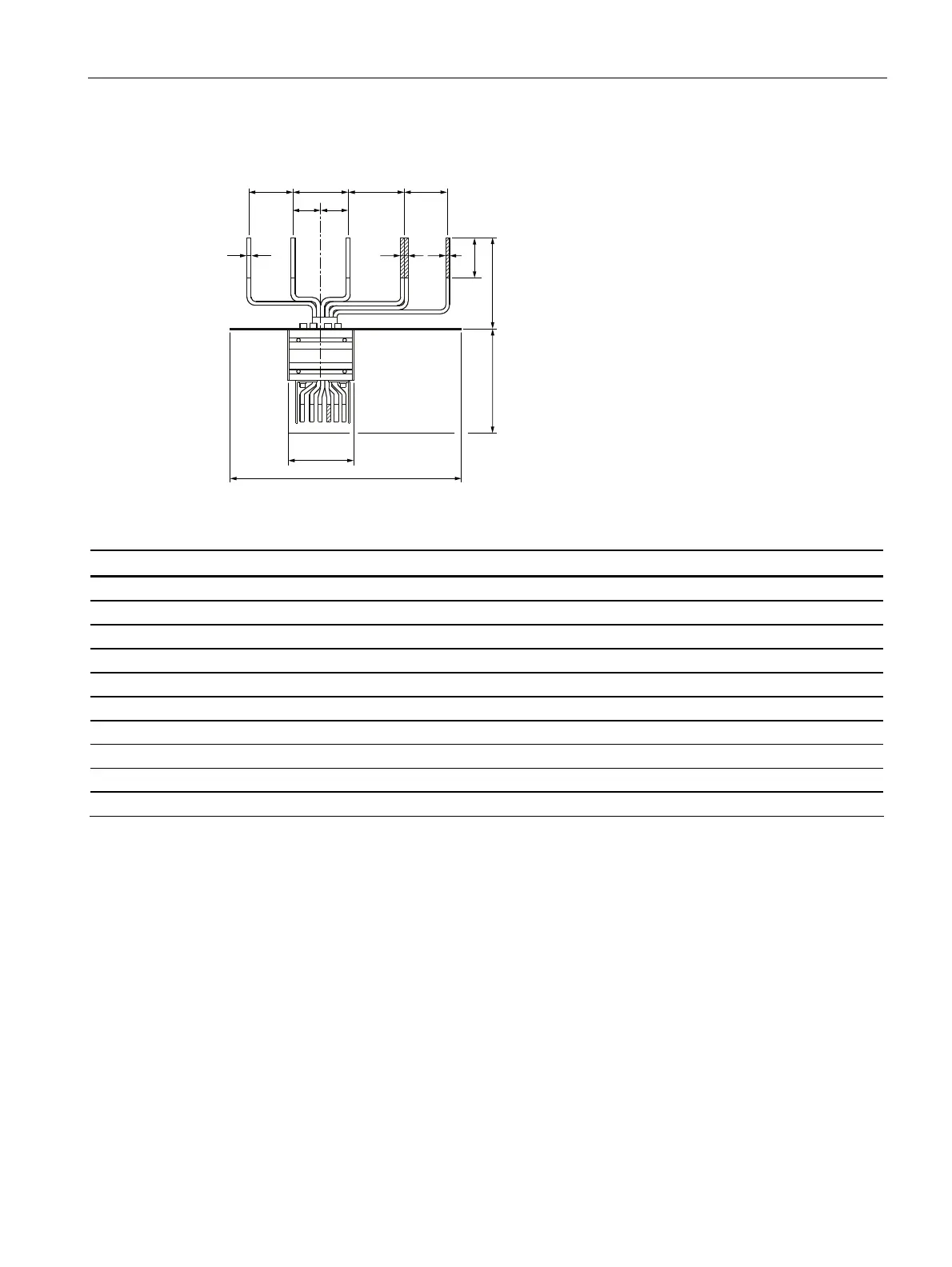

Dimension drawings
8.3 Feeder units
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
179
LXC.0154 to LXC.1054
O
N
P
/
K
H
I
J
L
M
G
/
/
1
T
Q
169B
3(
FA, FL.
Type d e f g h i j k
1)
l m n q
LXC0154-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXC0254-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXC0354-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXC0454-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXC0554-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXC0654-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXC0754-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXC0854-FA(FL.) 100 120 124.5 95.5 8 16 8 85 200 230 145 520
LXC0954-FA(FL.) 100 120 123.5 96.5 6 12 6 85 200 230 145 520
LXC1054-FA(FL.)
2)
- - - - - - - - - - - -
Dimensioning of the connections for copper-plating see Distribution board connection units
(Page 182)
1)
Termination surface, not isolated
2)
On request
