Dimension drawings
8.5 Additional equipment
SIVACON 8PS - Configuring with LX system
192 Configuration Manual, 10/2011, A5E02194899-02


D


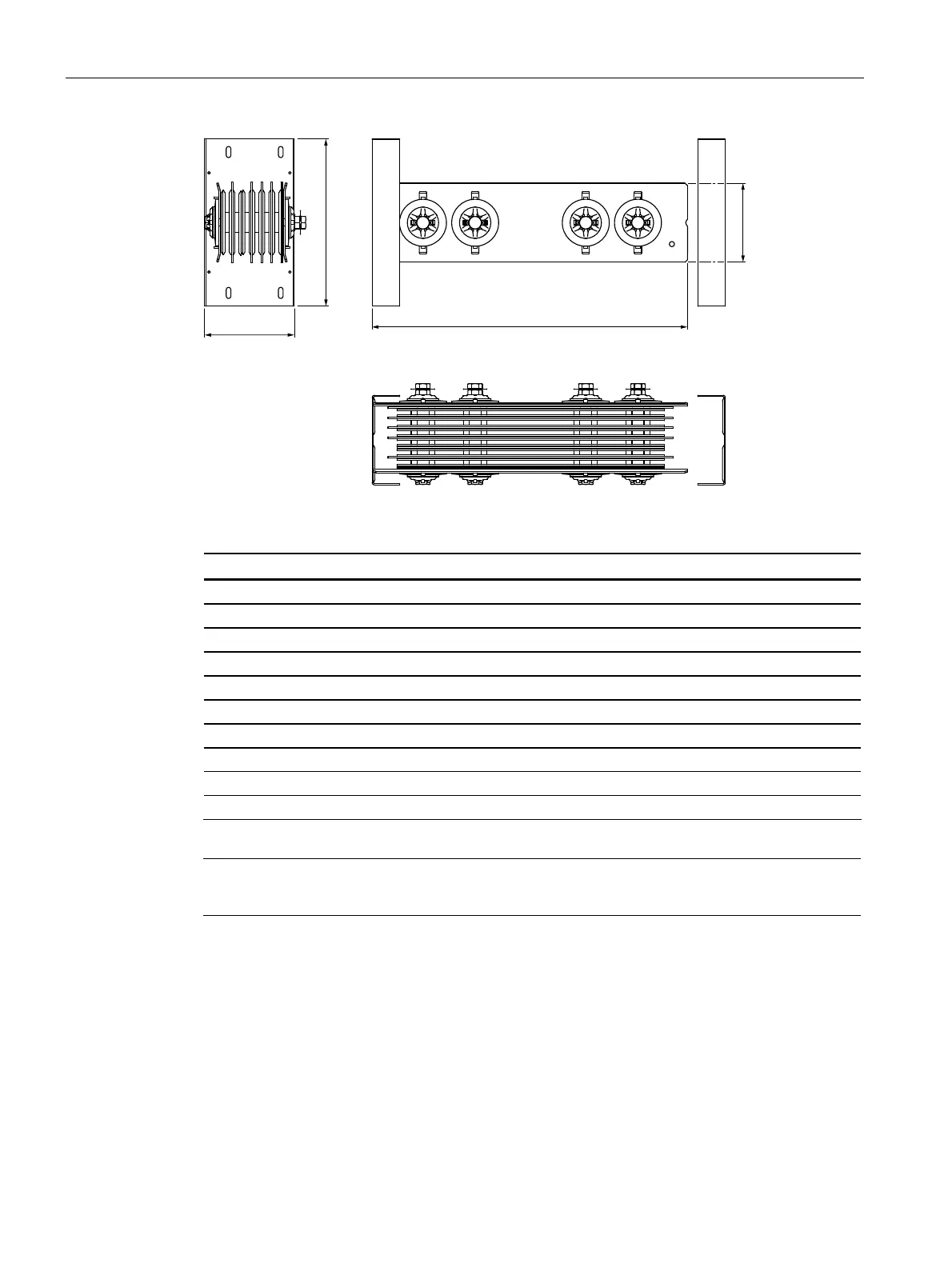

Figure 8-25 LX.08 to LX.10
Type a
LX.01..-KB 137
LX.02..-KB 137
LX.03..-KB 162
LX.04..-KB 162
LX.05..-KB 207
LX.06..-KB 287
LX.07..-KB 287
LX.08..-KB 139
LX.09..-KB 599
LX.10..-KB 599
Note
You can obtain the dimensions of the joint blocks for tap-off units (800 to 1250 A) on request.
