Dimension drawings
8.5 Additional equipment
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
193

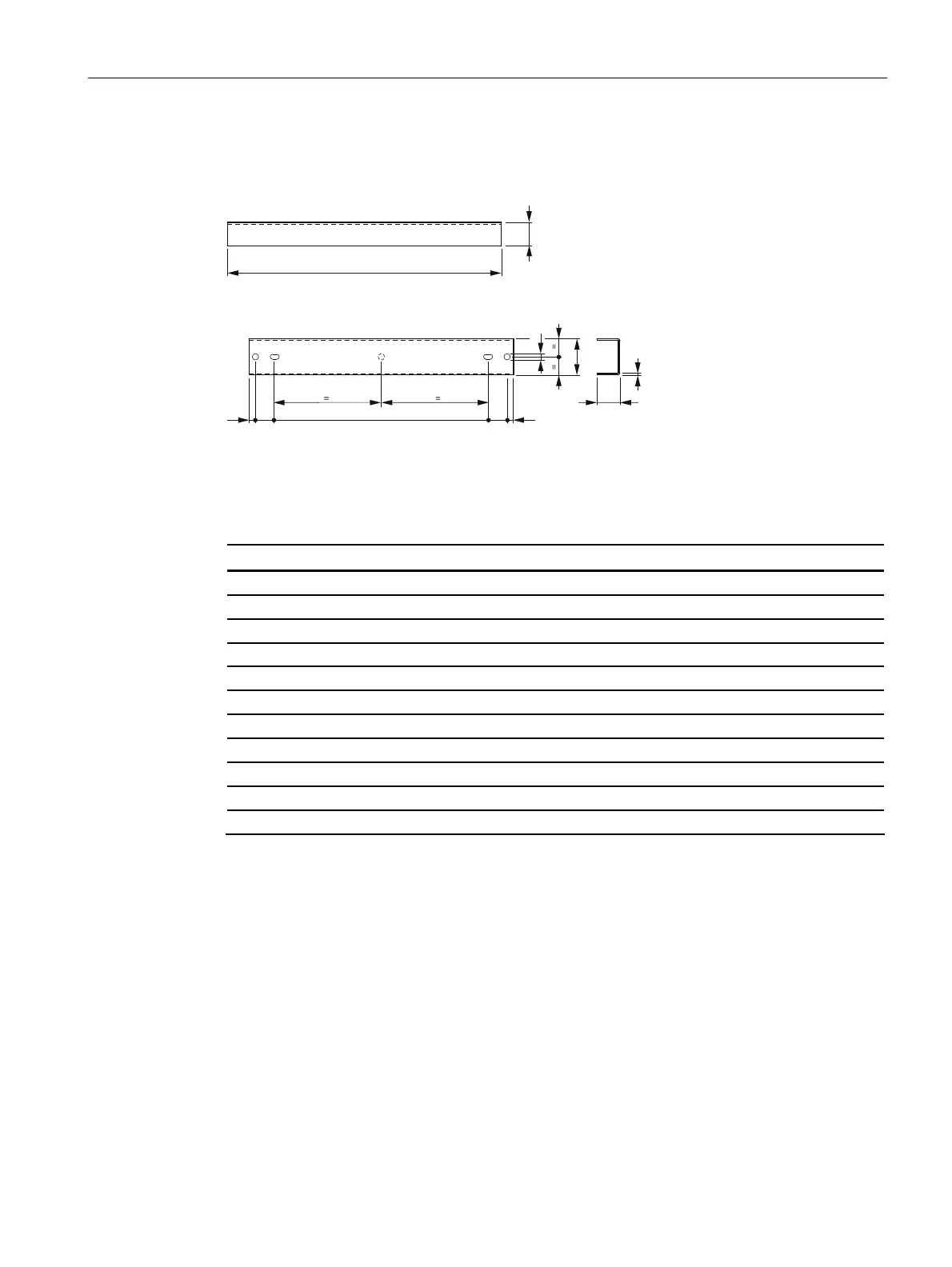

Fixing bracket
The LX-K fixing hooks are included in the scope of supply of the fixing brackets.

D





E


LX-BH(F)
LX..-BF(F)
Type a b
LX-BH(F) 285 172
LX01..-BH(F) 285 172
LX02..-BH(F) 285 172
LX03..-BH(F) 307 194
LX04..-BH(F) 307 194
LX05..-BH(F) 362 239
LX06..-BH(F) 432 319
LX07..-BH(F) 432 319
LX08..-BH(F) 584 471
LX09..-BH(F) 744 631
LX10..-BH(F) 744 631
