Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
42 Configuration Manual, 10/2011, A5E02194899-02

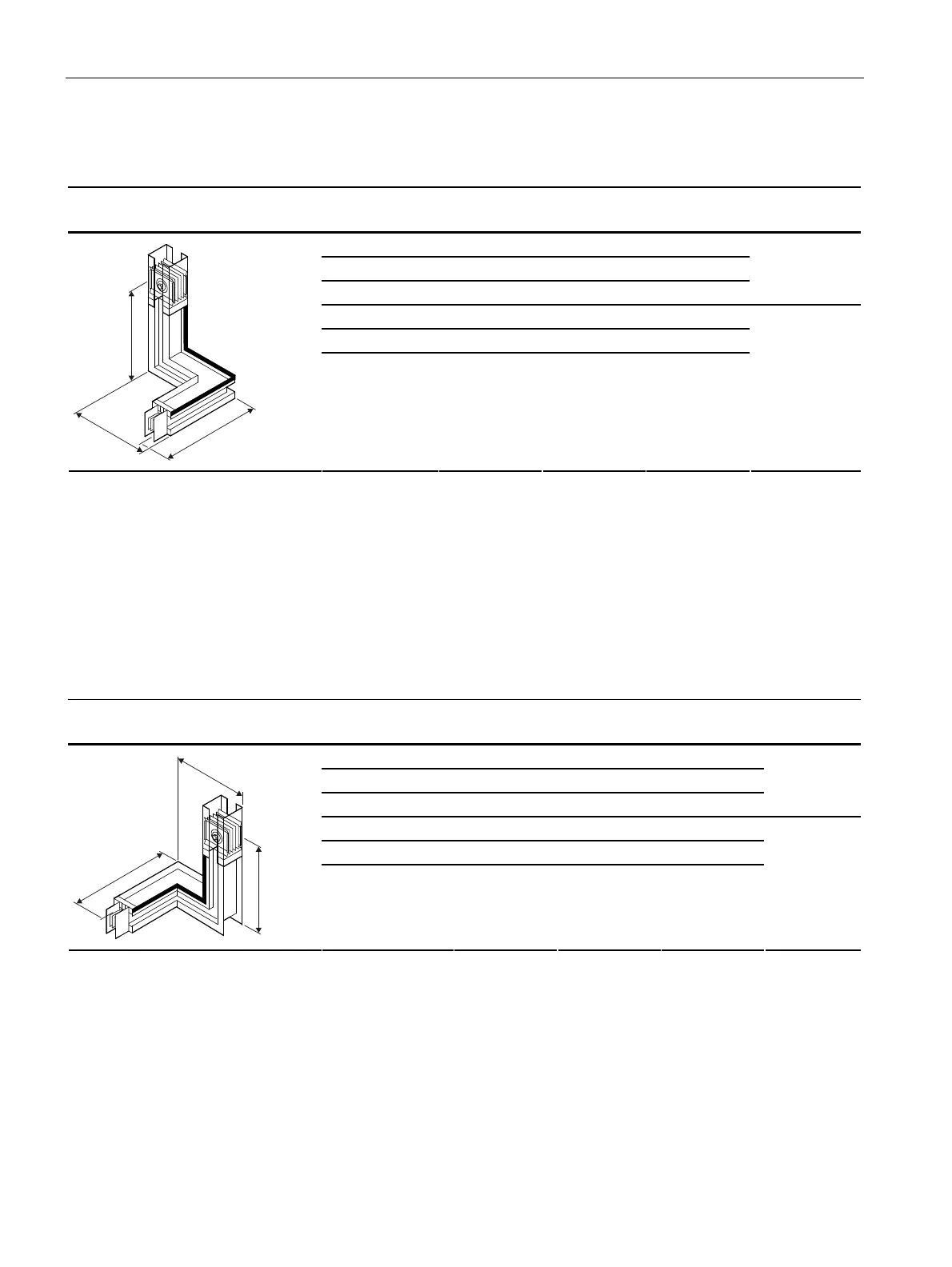

Knee offset, front left
System Length X
[m]
Length Y
[m]
Length Z
[m]
Type
1)
LX.01 to LX.04 0.35 0.35 0.40
LX.05 to LX.07 0.35 0.50 0.52
LX.08 to LX.10 0.35 0.80 0.84
LX… ..-LVL
LX.01 to LX.04 0.35
2)
…0.70 0.35
2)
…0.70 0.40
2)
…0.70
LX.05 to LX.07 0.35
2)
…0.70 0.50
2)
…0.85 0.52
2)
…0.85
<
;
=
LX.08 to LX.10 0.35
2)
…0.70 0.80
2)
…1.15 0.84
2)
…1.15
LX…..-LVL-
X*/Y*/Z*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions
(e.g. LX....-LVL-X0.40/Y0.56/Z0.60)
Knee offset, front right
System Length X
[m]
Length Y
[m]
Length Z
[m]
Type
1)
LX.01 to LX.04 0.35 0.35 0.40
LX.05 to LX.07 0.35 0.50 0.52
LX.08 to LX.10 0.35 0.80 0.84
LX… ..-LVR
LX.01 to LX.04 0.35
2)
…0.70 0.35
2)
…0.70 0.40
2)
…0.70
LX.05 to LX.07 0.35
2)
…0.70 0.50
2)
…0.85 0.52
2)
…0.85
<
;
=
LX.08 to LX.10 0.35
2)
…0.70 0.80
2)
…1.15 0.84
2)
…1.15
LX…..-LVR-
X*/Y*/Z*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions
(e.g. LX....-LVR-X0.40/Y0.56/Z0.60)
