Siemens SIVACON 8PS User Manual

Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
43

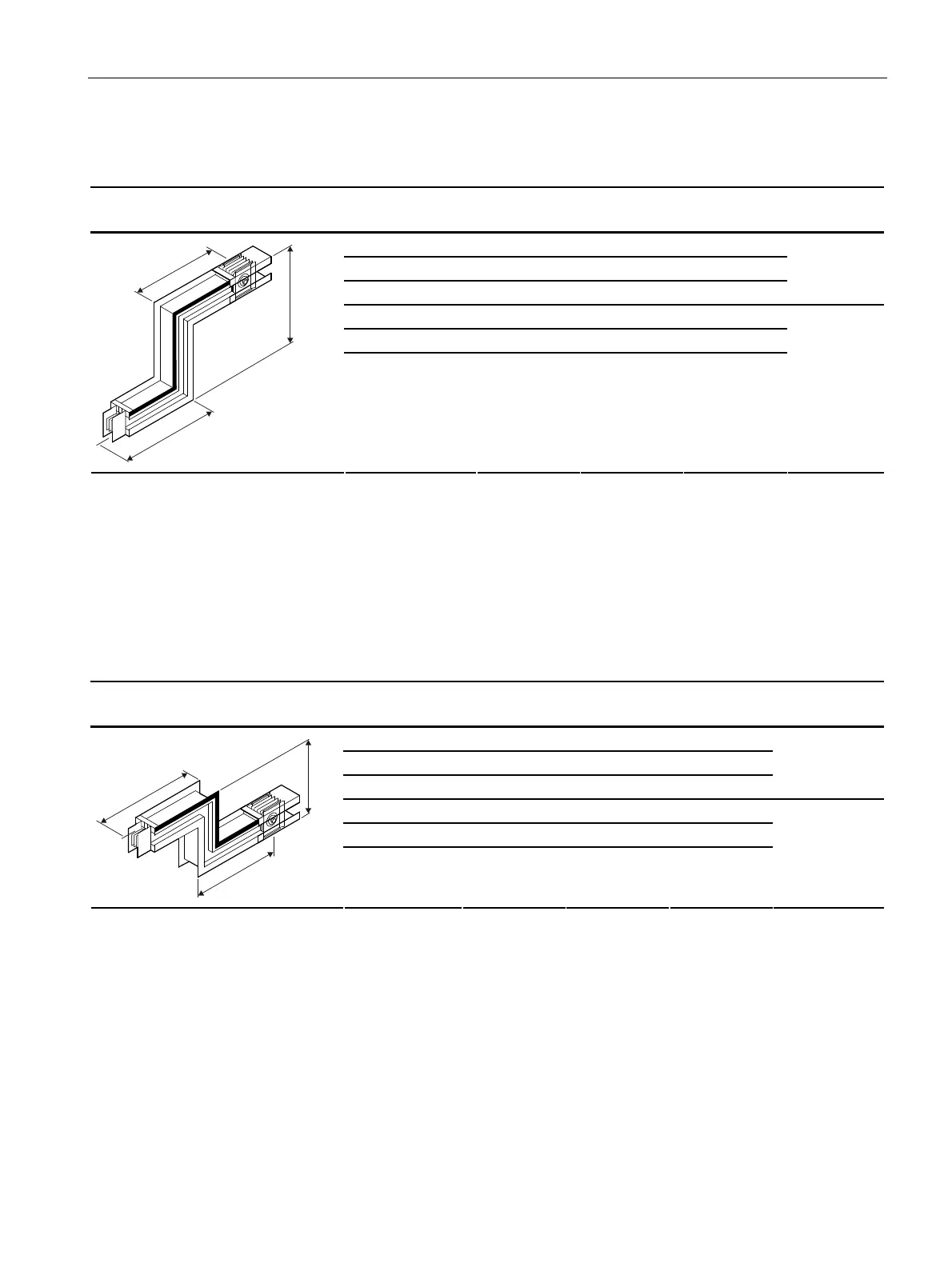

Z units edgewise front
System Length X
[m]
Length Y
[m]
Length Z
[m]
Type
1)
LX.01 to LX.04 0.35 0.35 0.40
2)
…0.70
LX.05 to LX.07 0.50 0.50 0.70
2)
…1.00
LX.08 to LX.10 0.80 0.80 1.33
2)
…1.60
LX…..-ZV-Z*
LX.01 to LX.04 0.35
2)
…0.70 0.35
2)
…0.70 0.40
2)
…0.70
LX.05 to LX.07 0.50
2)
…0.85 0.50
2)
…0.85 0.70
2)
…1.00
;
<
=
LX.08 to LX.10 0.80
2)
…1.15 0.80
2)
…1.15 1.33
2)
…1.60
LX…..-ZV-
X*/Y*/Z*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-ZV-X0.40/Y0.56/Z0.60)
Z units edgewise rear
System Length X
[m]
Length Y
[m]
Length Z
[m]
Type
1)
LX.01 to LX.04 0.35 0.35 0.40
2)
…0.70
LX.05 to LX.07 0.50 0.50 0.70
2)
…1.00
LX.08 to LX.10 0.80 0.80 1.33
2)
…1.60
LX…..-ZH-Z*
LX.01 to LX.04 0.35
2)
…0.70 0.35
2)
…0.70 0.40
2)
…0.70
LX.05 to LX.07 0.50
2)
…0.85 0.50
2)
…0.85 0.70
2)
…1.00
;
<
=
LX.08 to LX.10 0.80
2)
…1.15 0.80
2)
…1.15 1.33
2)
…1.60
LX…..-ZH-
X*/Y*/Z*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-ZH-X0.40/Y0.56/Z0.60)
