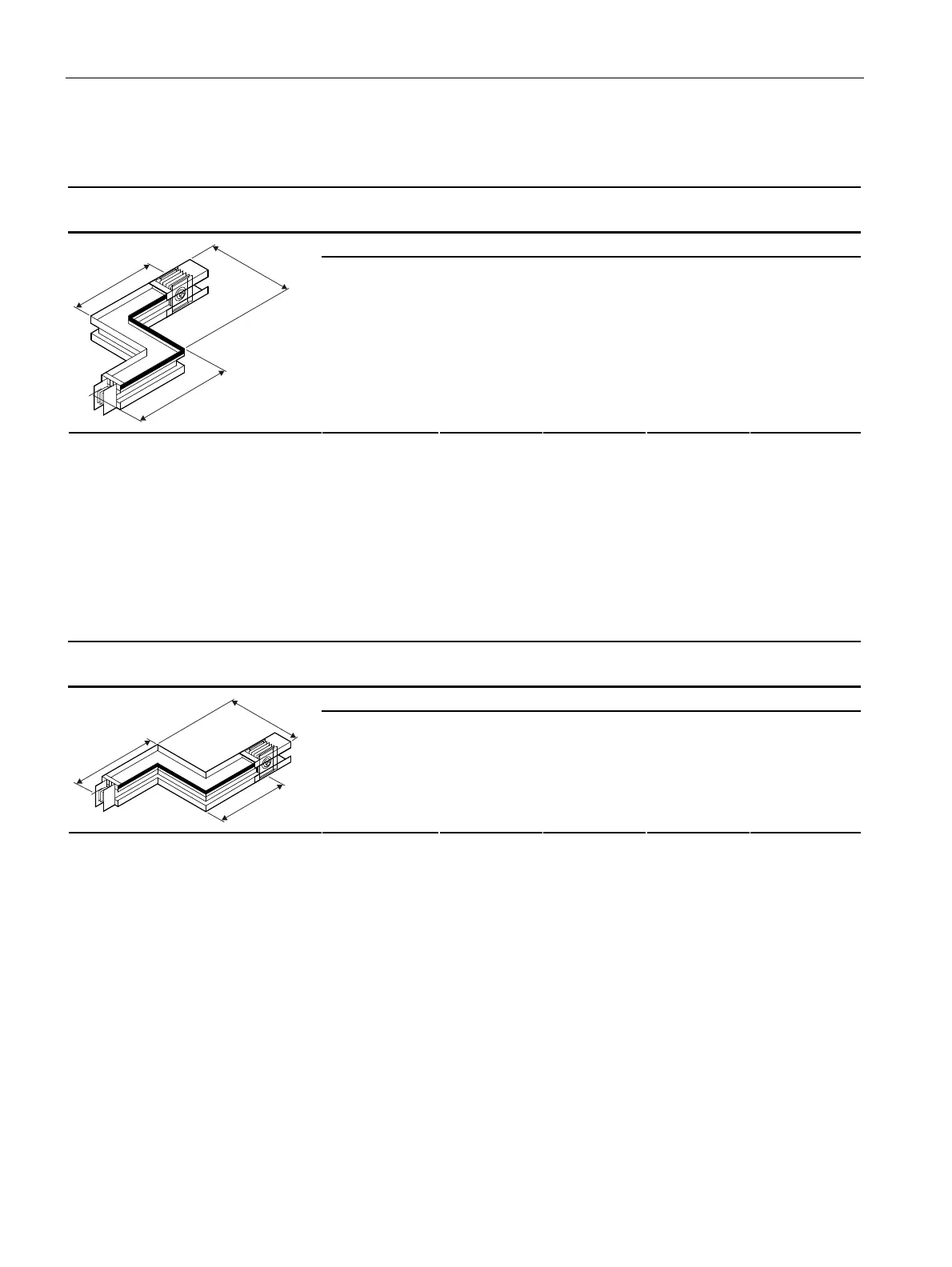

4.3 Selection tables
SIVACON 8PS - Configuring with LX system
44 Configuration Manual, 10/2011, A5E02194899-02
Z units flat left
System Length X
[m]
Length Y
[m]
Length Z
[m]
Type
1)
LX.01 to LX.10 0.35 0.35 0.40
2)
…0.70 LX…..-ZL-Z*
;
<
=
LX.01 to LX.10 0.35
2)
…0.70 0.35
2)
…0.70 0.40
2)
…0.70 LX…..-ZL-
X*/Y*/Z*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-ZL-X0.40/Y0.56/Z0.60)
Z units flat right
System Length X
[m]
Length Y
[m]
Length Z
[m]
Type
1)
LX.01 to LX.10 0.35 0.35 0.40
2)
…0.70 LX…..-ZR-Z*
<
;
=
LX.01 to LX.10 0.35
2)
…0.70 0.35
2)
…0.70 0.40
2)
…0.70 LX…..-ZR-
X*/Y*/Z*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-ZR-X0.40/Y0.56/Z0.60)
