Product selection
4.3 Selection tables
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
45

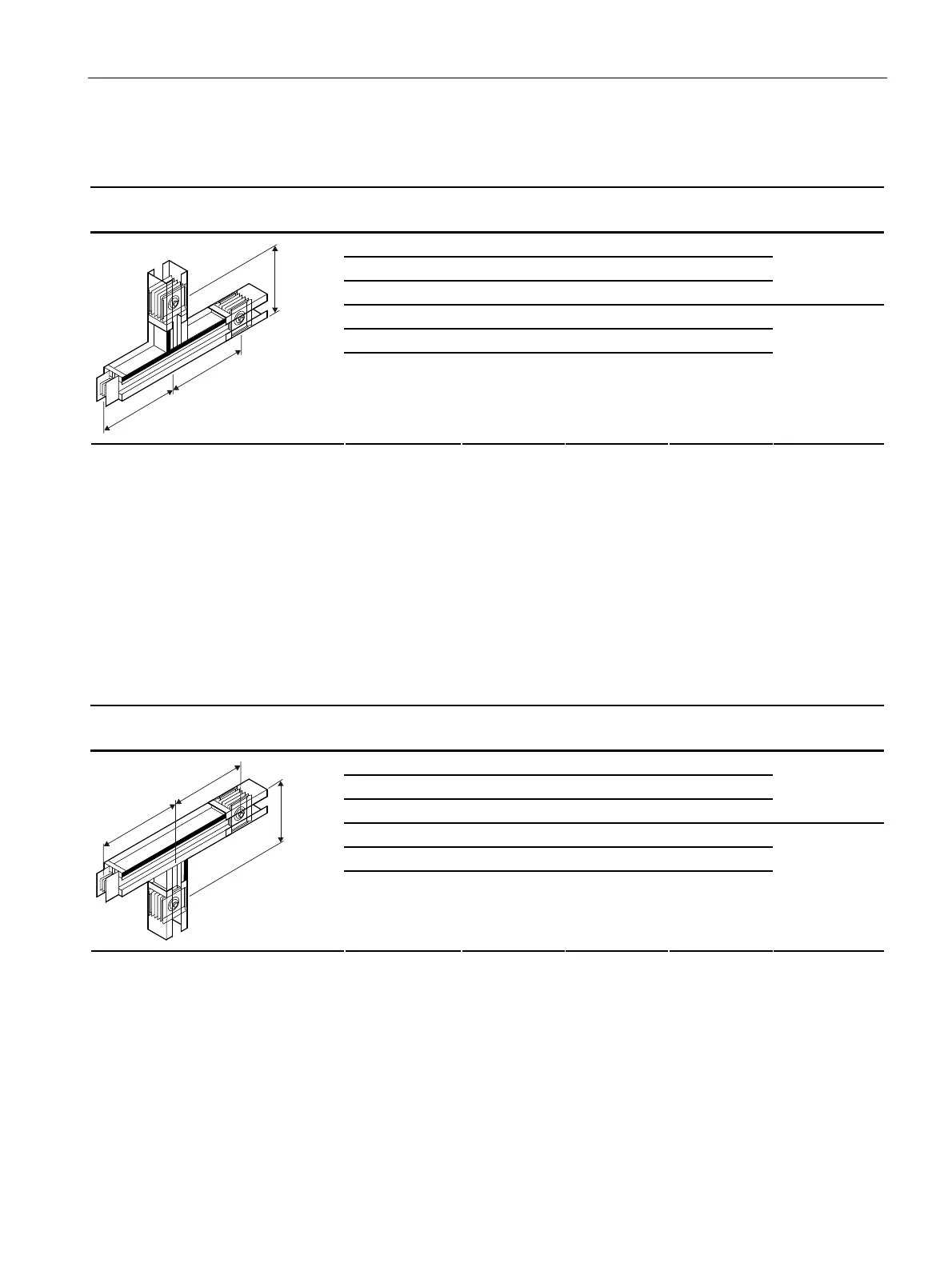

T units edgewise, T tap-off unit top
System Length X
[m]
Length Y
[m]
Length Z
[m]
Type
1)
LX.01 to LX.04 0.35 0.35 0.35
LX.05 to LX.07 0.50 0.50 0.50
LX.08 to LX.10 0.80 0.80 0.80
LX…..-TV-Z*
LX.01 to LX.04 0.35
2)
…0.70 0.35
2)
…0.70 0.35
2)
…0.70
LX.05 to LX.07 0.50
2)
…0.85 0.50
2)
…0.85 0.50
2)
…0.85
;
<
=
LX.08 to LX.10 0.80
2)
…1.15 0.80
2)
…1.15 0.80
2)
…1.15
LX…..-TV-
X*/Y*/Z*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-TV-X0.40/Y0.56/Z0.60)
T units edgewise, T tap-off unit bottom
System Length X
[m]
Length Y
[m]
Length Z
[m]
Type
1)
LX.01 to LX.04 0.35 0.35 0.35
LX.05 to LX.07 0.50 0.50 0.50
LX.08 to LX.10 0.80 0.80 0.80
LX…..-TH-Z*
LX.01 to LX.04 0.35
2)
…0.70 0.35
2)
…0.70 0.35
2)
…0.70
LX.05 to LX.07 0.50
2)
…0.85 0.50
2)
…0.85 0.50
2)
…0.85
;
<
=
LX.08 to LX.10 0.80
2)
…1.15 0.80
2)
…1.15 0.80
2)
…1.15
LX…..-TH-
X*/Y*/Z*
1)
See type code 1
2)
Shorter lengths on request
*
Complete type with relevant dimensions (e.g. LX....-TH-X0.40/Y0.56/Z0.60)
