Configuration
6.1 Basic knowledge for configuring
SIVACON 8PS - Configuring with LX system
80 Configuration Manual, 10/2011, A5E02194899-02

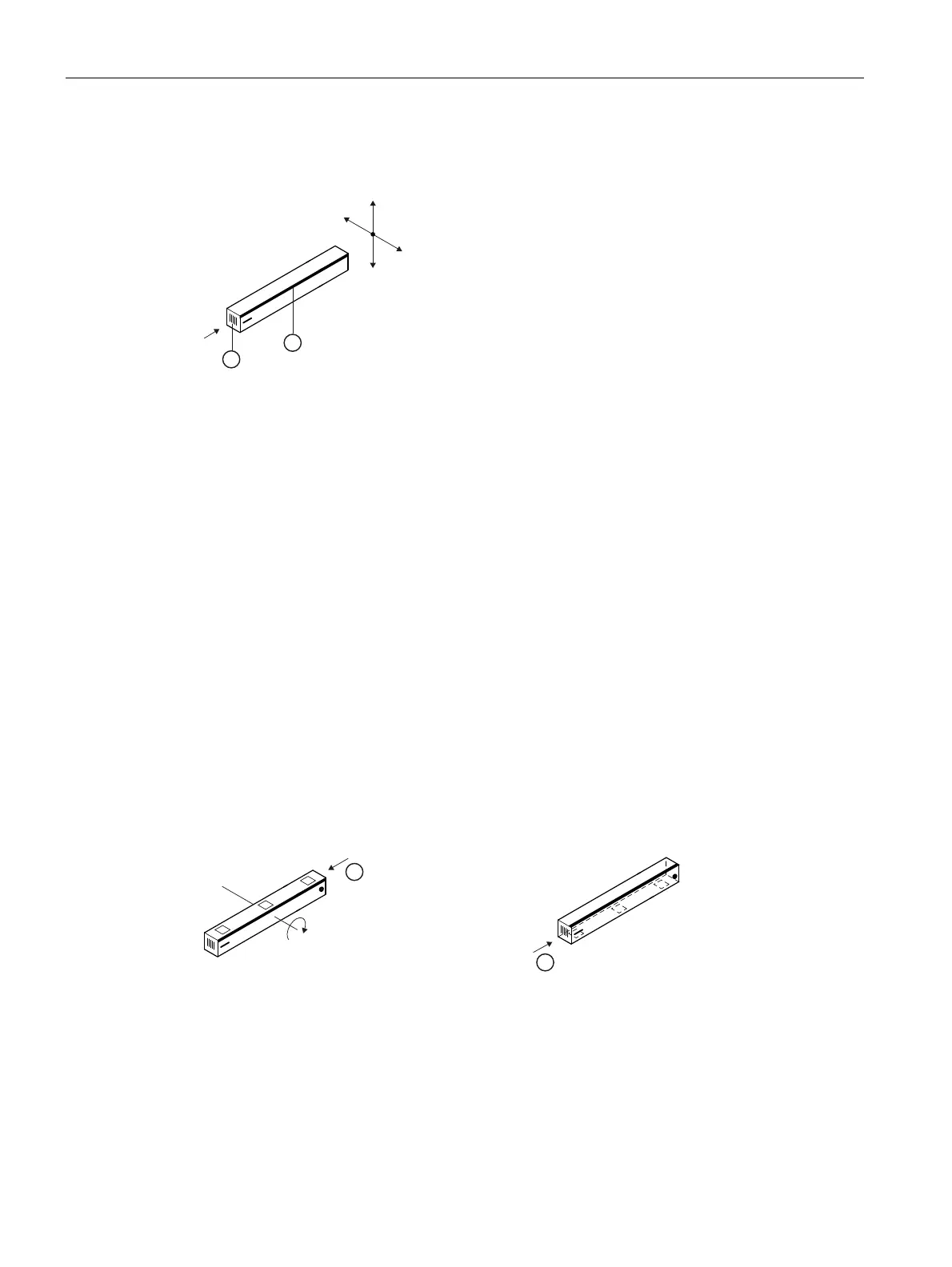

Basic junction units
9
+
/
5
V Change of direction to front
H Change of direction to rear
R Change of direction to right
L Change of direction to left
Tap-off points
The type is determined by specifying the trunking unit length (standard or optional length). In
the case of standard lengths, the position of the tap-off points is fixed. With optional lengths,
the tap-off point can be positioned within defined limits (see Chapter "LXA/LXC busbar
trunking units" – Selection and ordering data).
The position of the tap-off points on top can be modified by rotating the trunking unit around
the axis represented (see Chapter "LXA/LXC busbar trunking systems" – Selection and
ordering data).
The following must be taken into account for the method of viewing:
● Edgewise busbars
● View of the end of the trunking unit without joint block
● Position of the bold full line on the right
● Busbar runs away from viewer.
Tap-off points at top Tap-off points at bottom
①
Joint block
②
Joint block can be modified
