Configuration
6.1 Basic knowledge for configuring
SIVACON 8PS - Configuring with LX system
86 Configuration Manual, 10/2011, A5E02194899-02

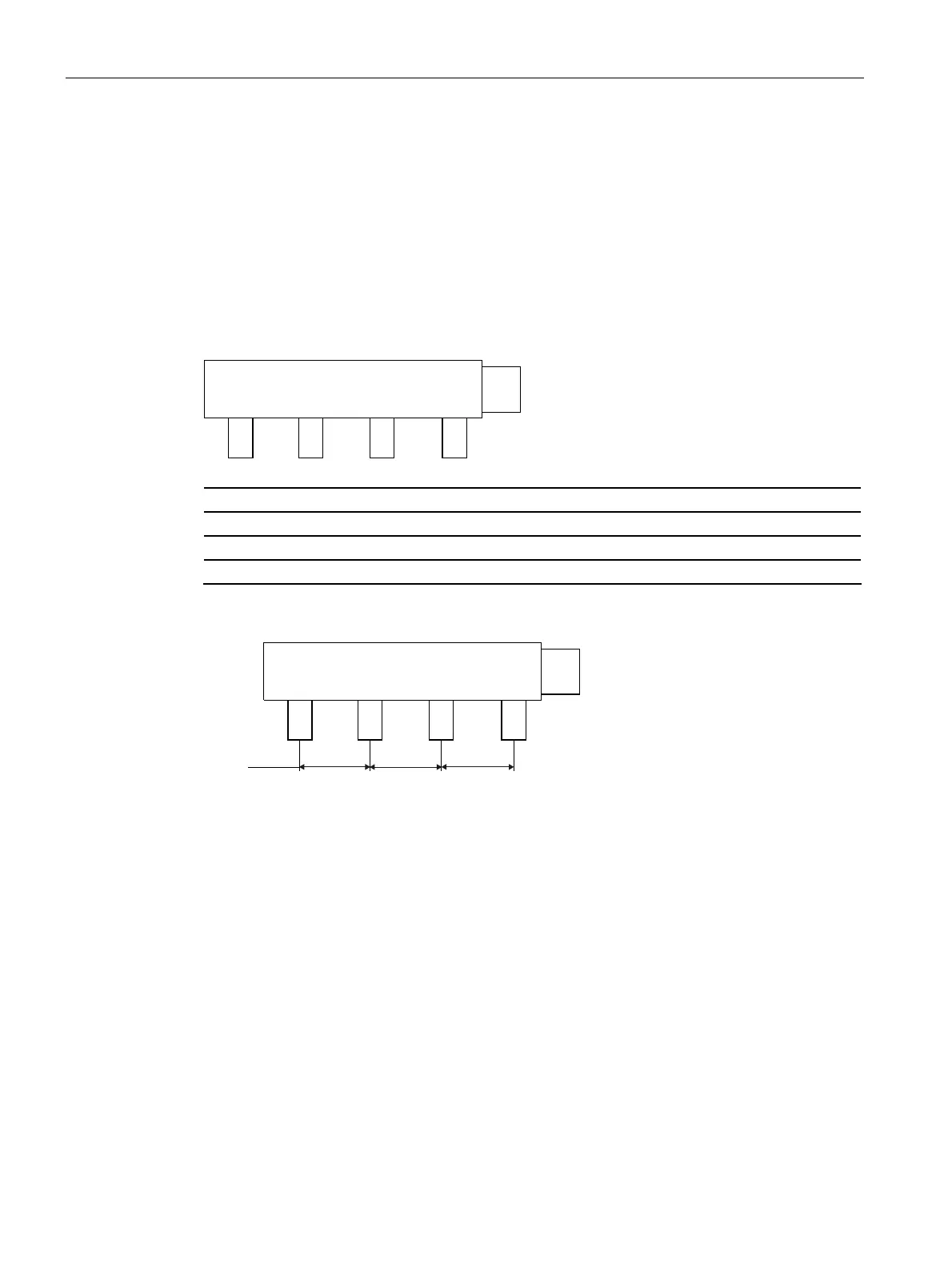

Phase sequence and phase distances
Three different types are available for configuring (distances specified in mm):
Type 1: LX...-AS1
● All tag distances (L1, L2, L3, PEN(N)) are identical: min. 115 mm, max. 400 mm
● The PEN(N) phase is always on the outside
Phase sequence
+LX-.A L1 L2 L3 PEN(N)
+LX-.B PEN(N) L3 L2 L1
+LX-.C L3 L2 L1 PEN(N)
+LX-.D PEN(N) L1 L2 L3
Tag distance (in mm)
  

PLQ
PD[  
/;3
Example for complete order type with tag distance 350 mm:
LXA0541-AS1+LX-1C+LX-P350
