Configuration
6.1 Basic knowledge for configuring
SIVACON 8PS - Configuring with LX system
Configuration Manual, 10/2011, A5E02194899-02
87

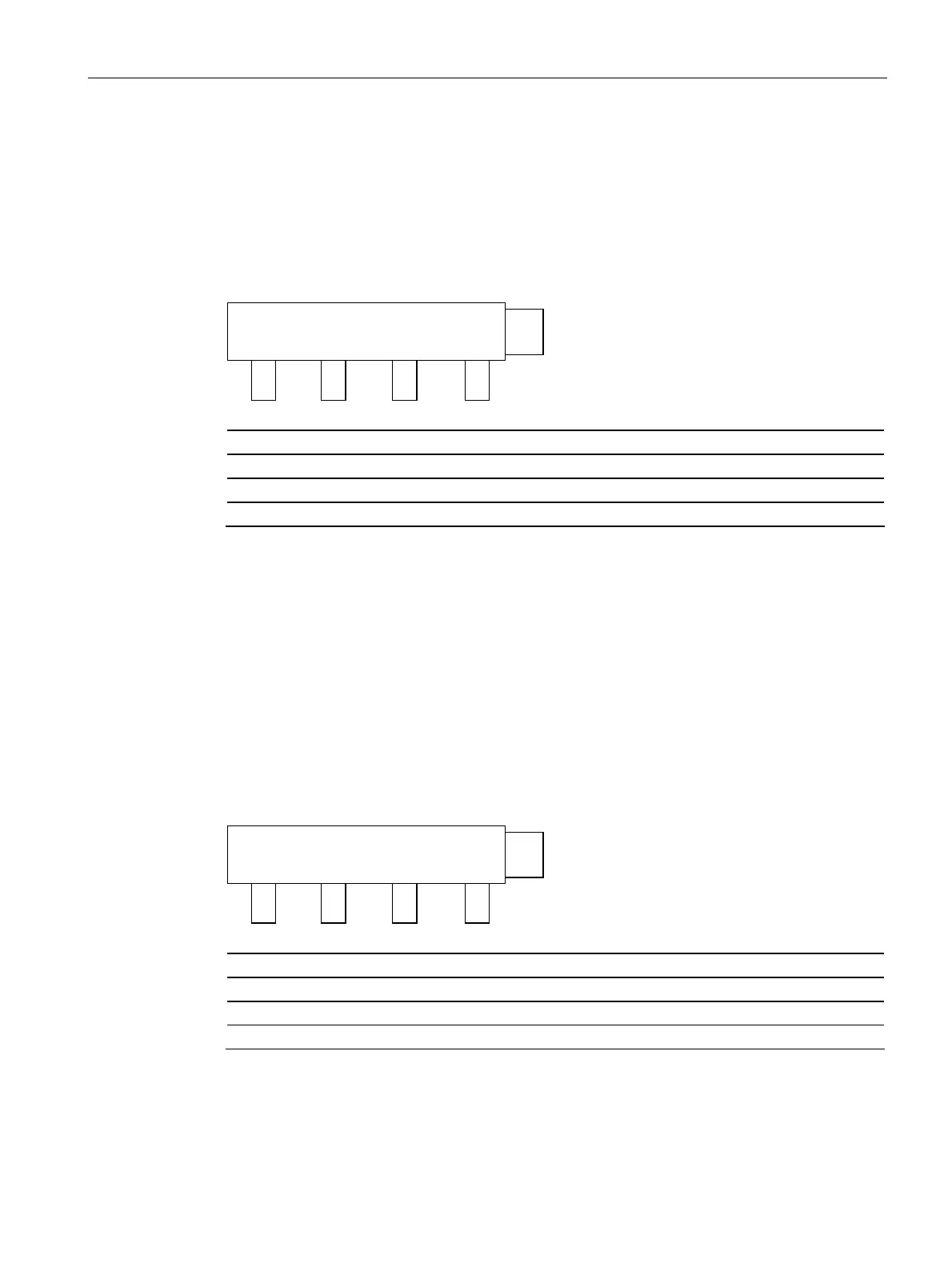

Type 2: LX...-AS2
● All tag distances between the external conductors are identical
● Distance dimension of PEN(N) variable
● The PEN(N) tag is arranged between the phases
Phase sequence
+LX-.E L1 L2 PEN(N) L3
+LX-.F L3 PEN(N) L2 L1
+LX-.G L3 L2 PEN(N) L1
+LX-.H L1 PEN(N) L2 L3
Tag distance +LX-P*/N*
● For P* (external conductor - external conductor) 450 to 750 mm
● For N* (external conductor L2 - PEN(N)) 150 to 405 mm
Type 3: LX...-AS3
● All tag distances of the external conductors are identical
● Distance dimension of PEN(N) variable
● PEN(N) tag external
Phase sequence
+LX-.A L1 L2 L3 PEN(N)
+LX-.B PEN(N) L3 L2 L1
+LX-.C L3 L2 L1 PEN(N)
+LX-.D PEN(N) L1 L2 L3
Tag distance +LX-P*/N*
● For P* (external conductor - external conductor) 450 to 750 mm
● For N* (external conductor PEN(N)) 150 to 400 mm
