Configuration
6.1 Basic knowledge for configuring
SIVACON 8PS - Configuring with LX system
88 Configuration Manual, 10/2011, A5E02194899-02

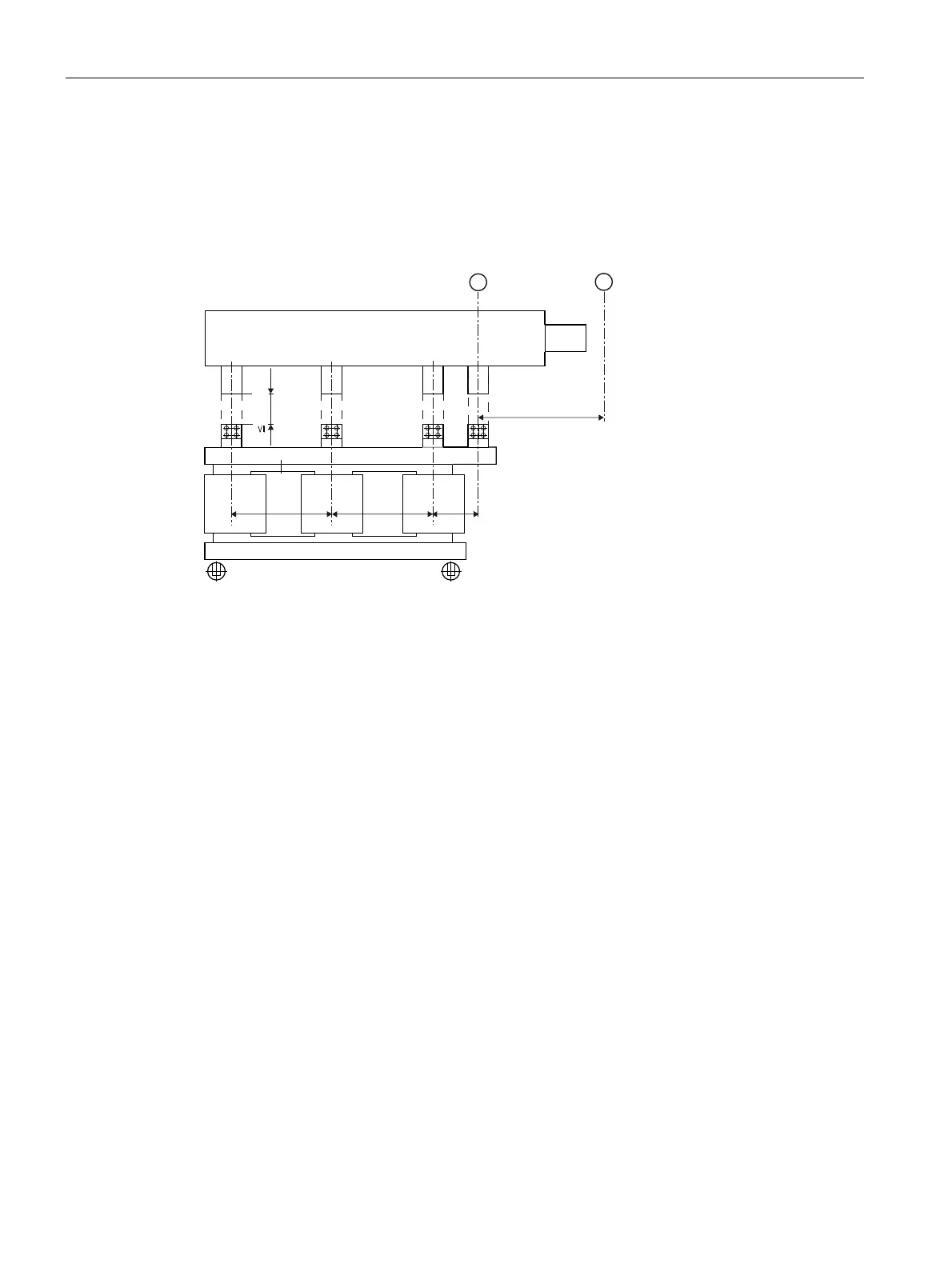

Positioning via transformers
The connection tags must always be positioned in the centre by means of the associated
connection tags of the transformer.
Configuring dimension a is decisive for configuring the remaining run. You can find type-
related dimension specifications for a under Dimension drawings (Page 159) .
D
3(11
PP
①
Centre of 1st connection tag
②
Centre of joint block
The transformer connection tags and the LX connection units are linked using flexible bands.
The bands must be provided by the customer.
