SDM3055 Series Digital Multimeter User Manual
94 int.siglent.com
Example 6: Thermocouple setting and measurement
Thermocouple is a common temperature sensor. Type, voltage and cold-side temperature are
required for thermocouple measurement.
The instrument can measure temperature of HI and LO terminals (cold-side), and calculate absolute
temperature of hot-side. Besides, only the relationship between thermocouple voltage and cold-side
temperature is need to be input according thermocouple type when you set the thermocouple sensor.
Operating Steps:
1. Please refer to “To Measure Temperature” in chapter 2 to know about the connection of Sensor.

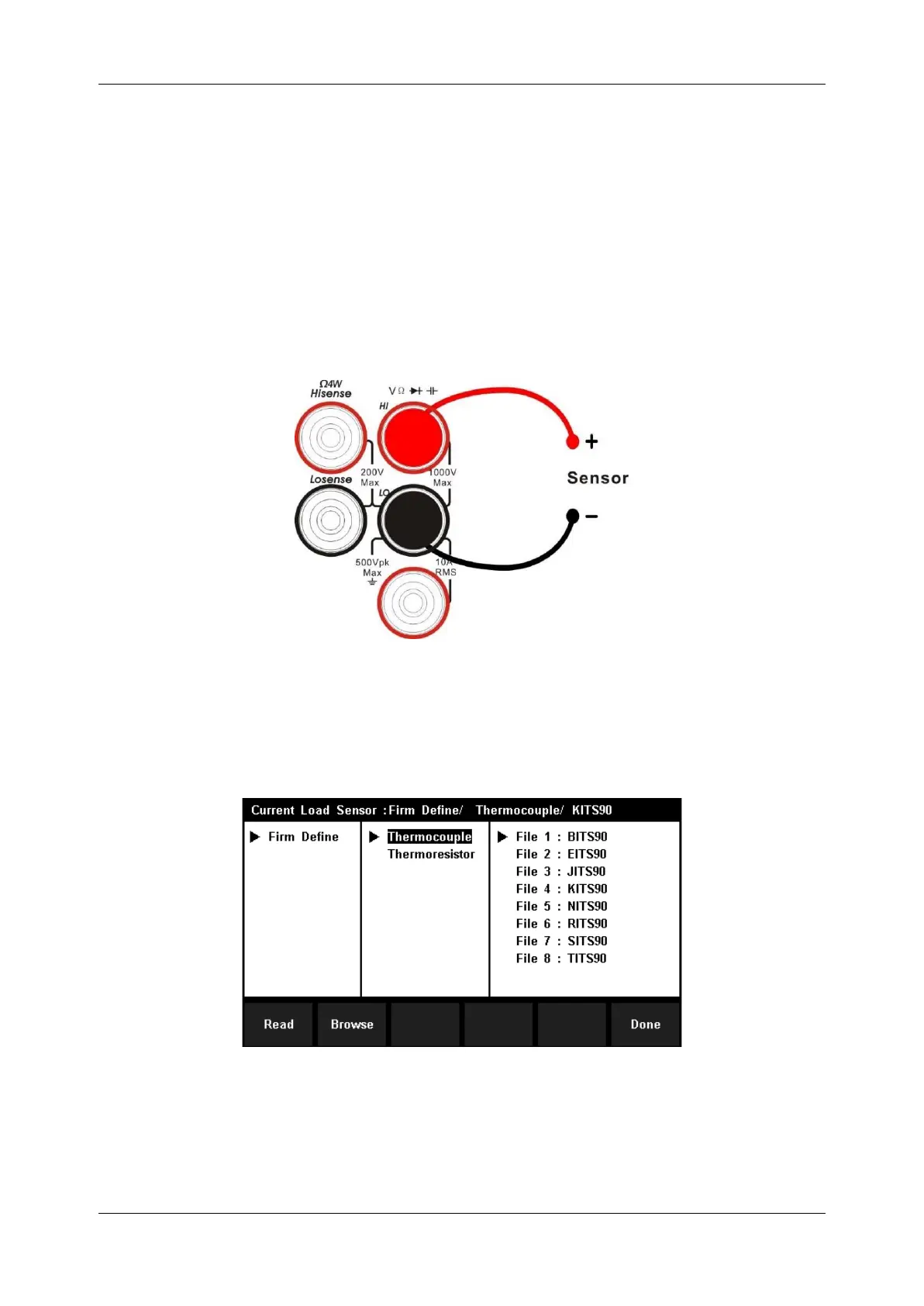

Diagram 3-13 Sketch map for connecting the sensor
2. Select the type of thermocouple.
Press [Load] and choose thermocouple measurement. The Multimeter supports 8 kinds of probe
type: B , E , J , K , N , R , S and T.
Diagram 3-14 Select the Type of Thermocouple
3. Use direction keys to select corresponding file and press [Read] to recall the sensor settings file.
