SDM3055 Series Digital Multimeter User Manual
int.siglent.com 31
To Measure AC Current
The Multimeter enables to measure AC Current up to 10A. The method to connect and measure AC
Current will be introduced in details as the following steps.
Operating Steps:

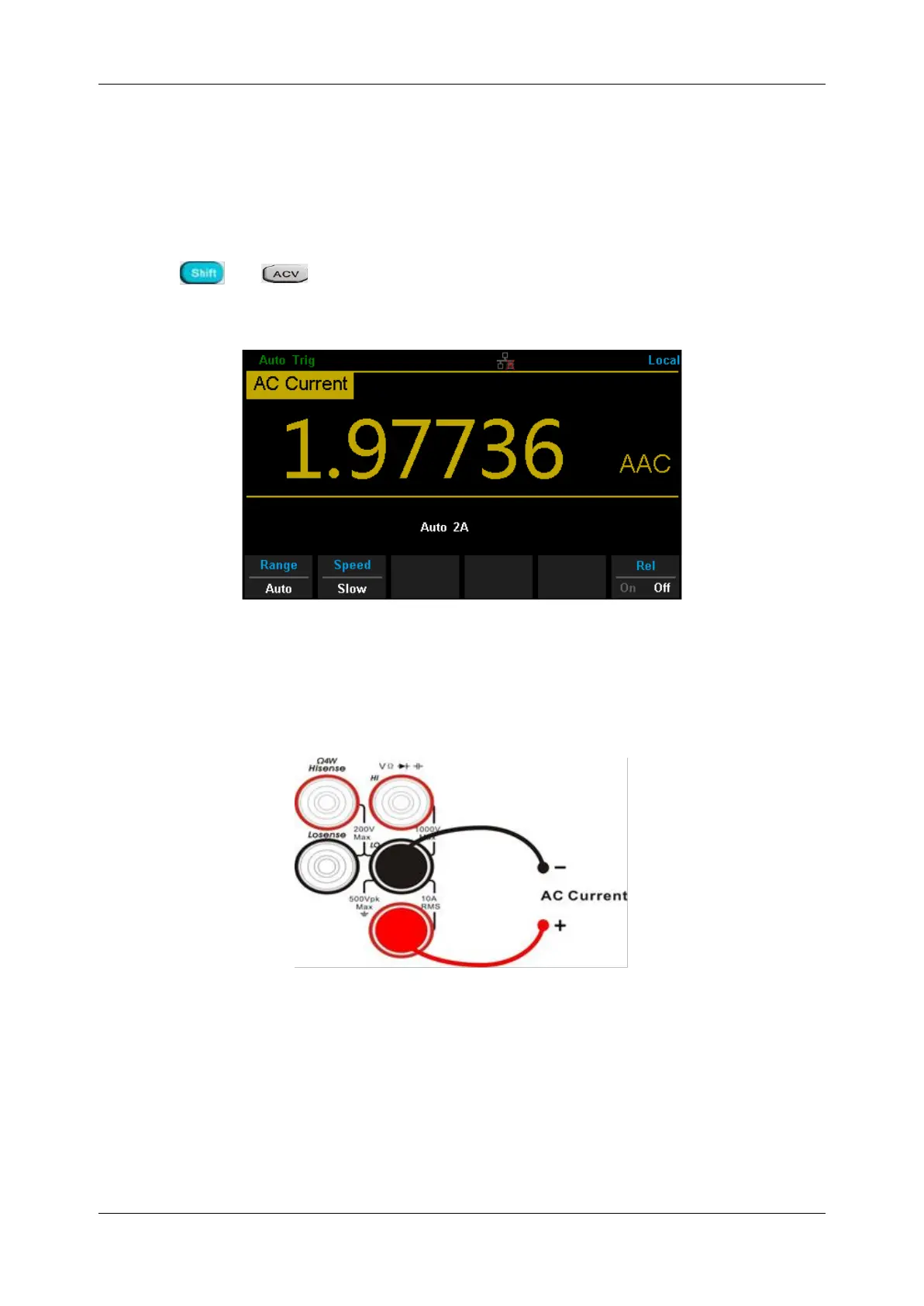

1. Press and on the front panel to enter the AC Current measurement interface, as
shown in Diagram 2-11.
Diagram 2-11 AC Voltage Measurement Interface
2. Connect the red lead to terminal Input-I and black lead to terminal Input-LO as the following
diagram.
Diagram 2-12 Sketch Map for Measuring AC Current
3. Choose a proper current range according to the measured circuit.
