To Measure Capacitance
The Multimeter enables to measure Capacitance up to 1000μF. The method to connect and measure
Capacitance will be introduced in details as the following steps.
Operating Steps:
1. Press on the front panel to enter the Capacitance measurement interface, as shown in
Diagram 2- 17.

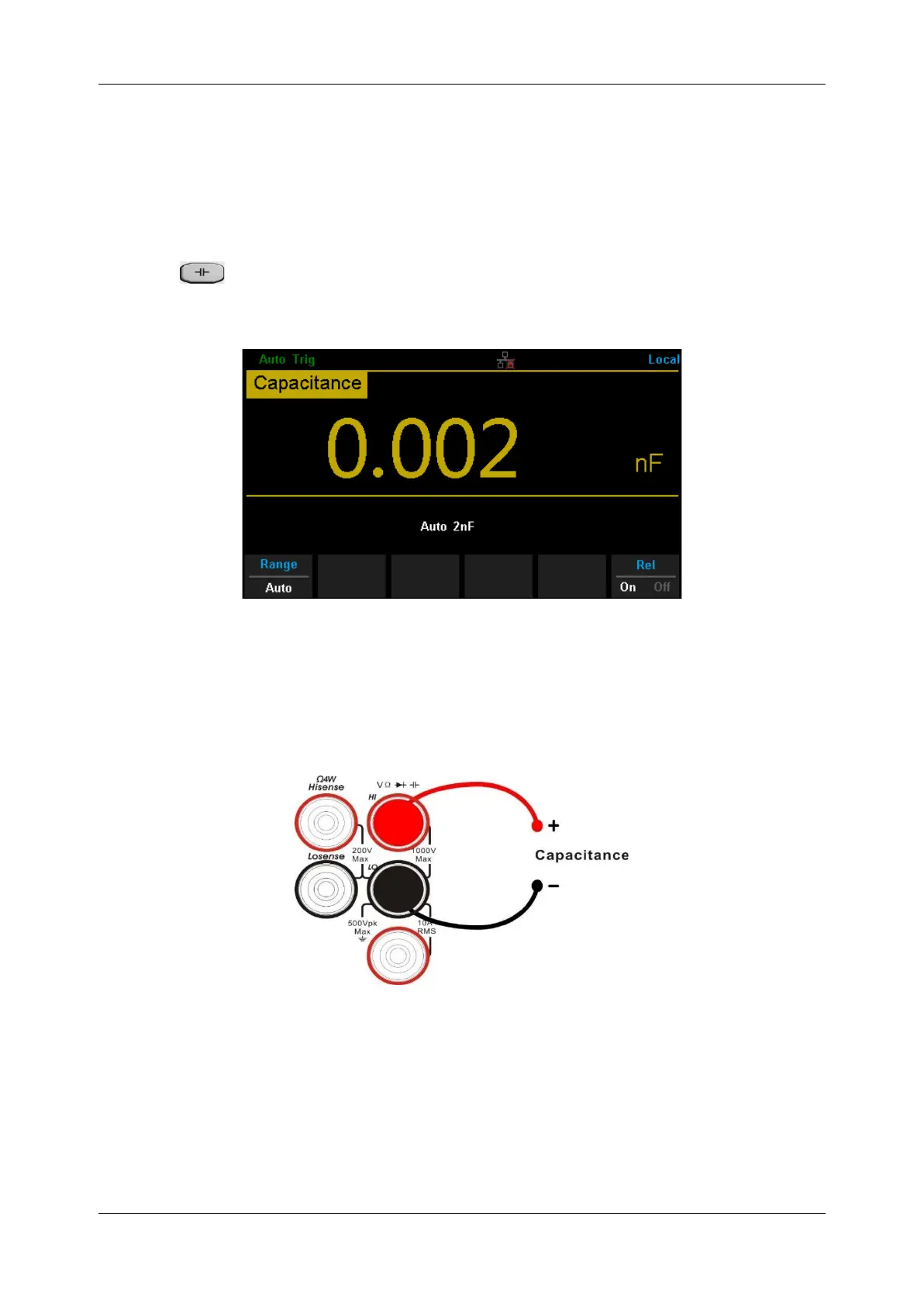

Diagram 2-17 Capacitance Measurement Interface
2. Connect the red lead to terminal Input-HI and black lead to terminal Input-LO as the following
diagram.
Diagram 2-18 Sketch Map for Measuring Capacitance
3. Choose a proper capacitance range according to the measured circuit.
