Example 2: To Eliminate Leads Impedance
Relative Operation could eliminate impedance errors from leads when measuring smaller resistance.
Operating Steps:
1. Press on the front panel to select 2-Wire Resistance measurement function.
2. Connect the red lead to terminal Input-HI and black lead to terminal Input-LO as Diagram 2-14.
3. Choose a proper resistance range according to the scope. The default is Auto Range.
4. Lead impedance will be shown on the screen as follow after connecting with two leads together.

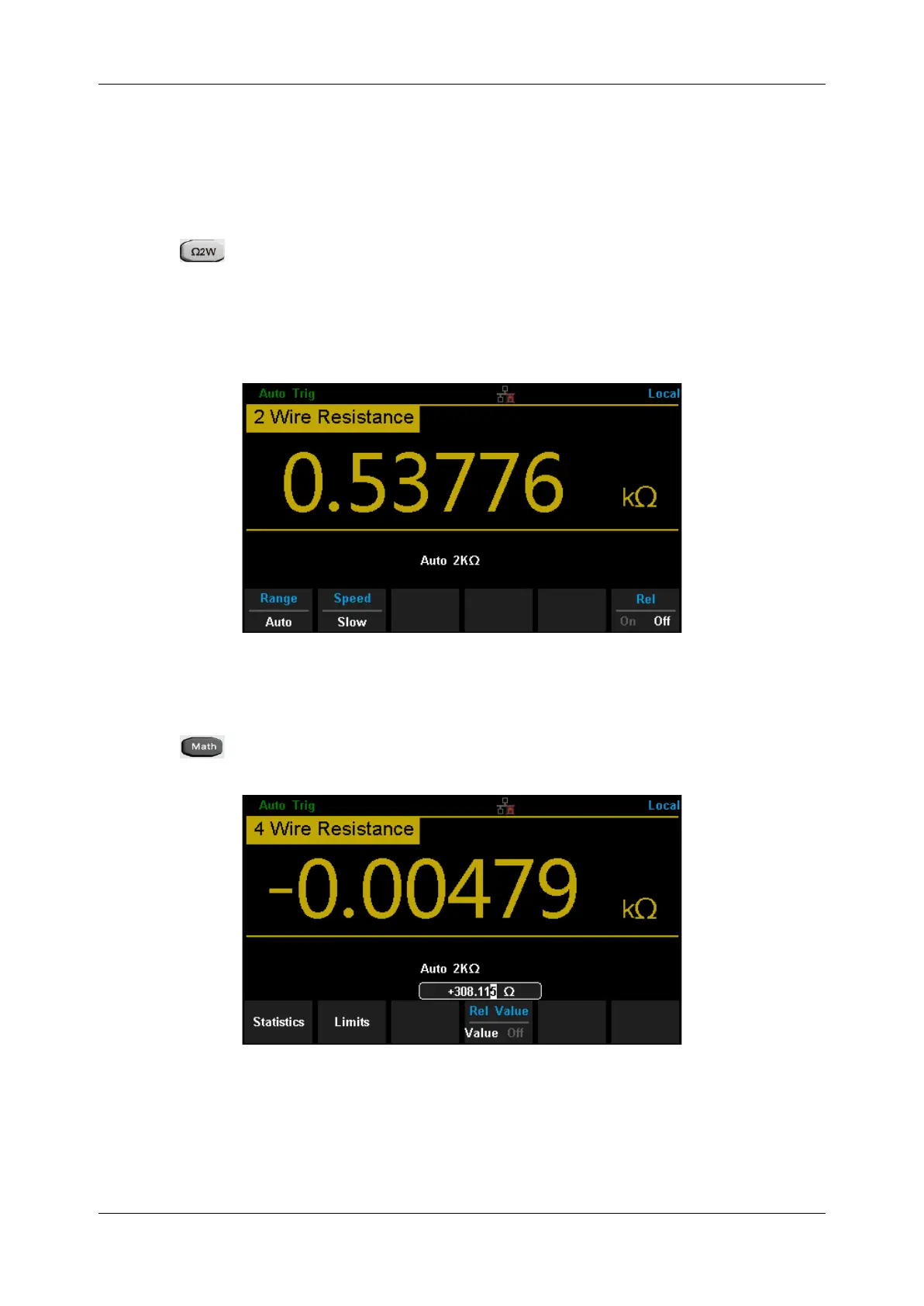

Diagram 3-3 Test Lead Impedance
5. Set parameters for Relative operation.
Press ā [Rel Value] set relative value as current measured value.
Diagram 3-4 Set Relative Value
6. Besides, pressing [Rel] on the softkey menu could also open Relative operation.
