SIGLENT TECHNOLOGIES SDM3055 Series User Manual

SDM3055 Series Digital Multimeter User Manual
96 int.siglent.com

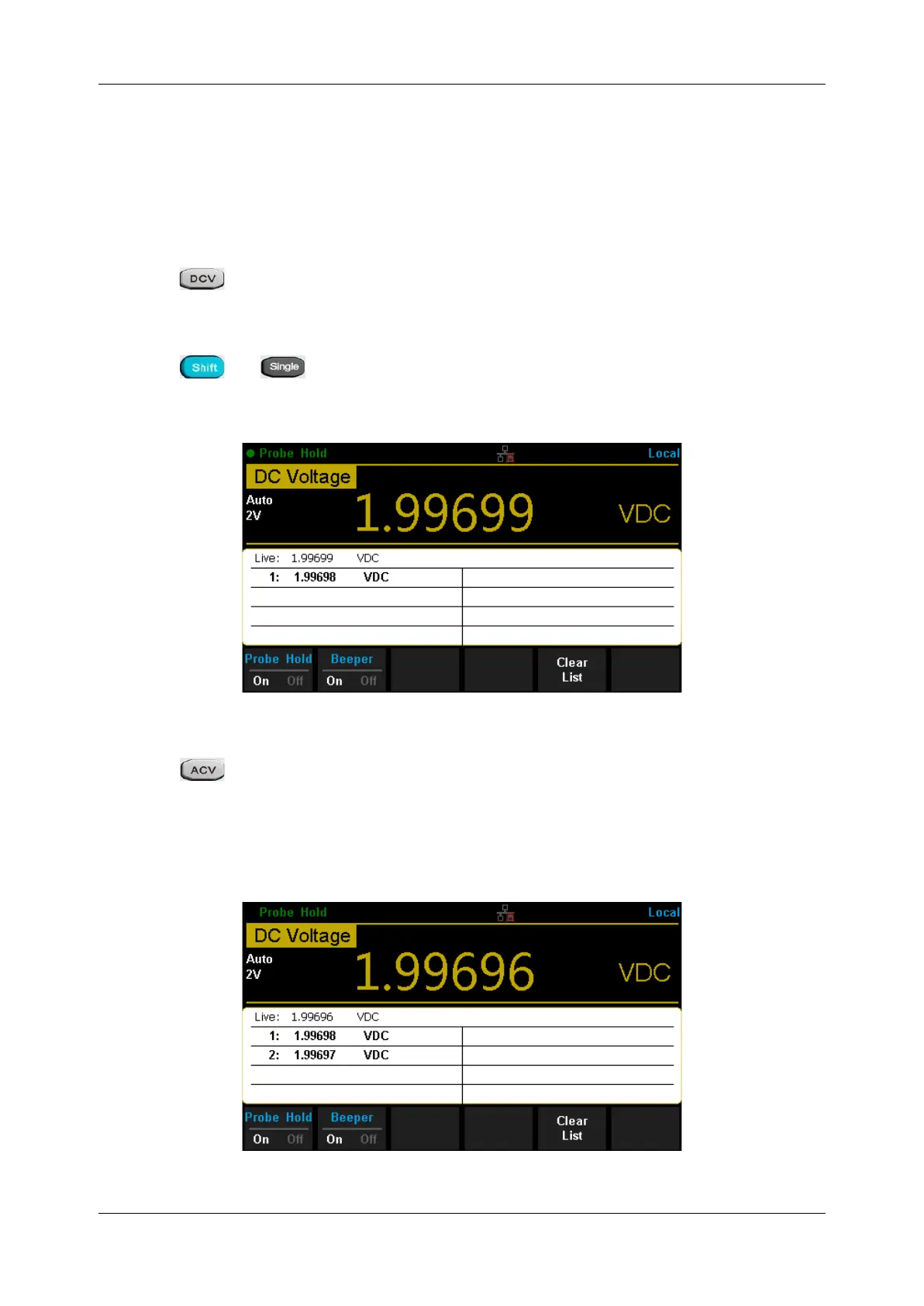

Example 7: To Use Hold Measurement Function
Reading Hold can help user to obtain a stable reading and hold it on the display of Front Panel. The
reading would be held all the same although testing pen had been moved away. Then we will
introduce how to keep the readings displayed on screen.
Operating Steps:
1. Press on the front panel to select DC Voltage measurement function and choose a proper
voltage range.
2. Connect the red lead to terminal Input-HI and black lead to terminal Input-LO as Diagram 2-4.
3. Press and to open Hold measurement function interface.
By the time, the screen will record the result of measuring DC voltage, as shown in the following
diagram.
Diagram 3-17 Result 1
4. Press on the front panel to select AC Voltage measurement function and choose a proper
voltage range.
5. Connect the red lead to terminal Input-HI and black lead to terminal Input-LO as Diagram 2-9. By
the time, the screen will record the result of measuring AC voltage, as shown in the following
diagram.
Diagram 3-18 Result 2
