SDM3055 Series Digital Multimeter User Manual
int.siglent.com 25
To Measure DC Voltage
The Multimeter enables to measure DC Voltage up to 1000V. The method to connect and measure
DC Voltage will be introduced in details as the following steps.
(
NOTE:
DC Voltage is always the selected function when the Multimeter is turned on)
Operating Steps:

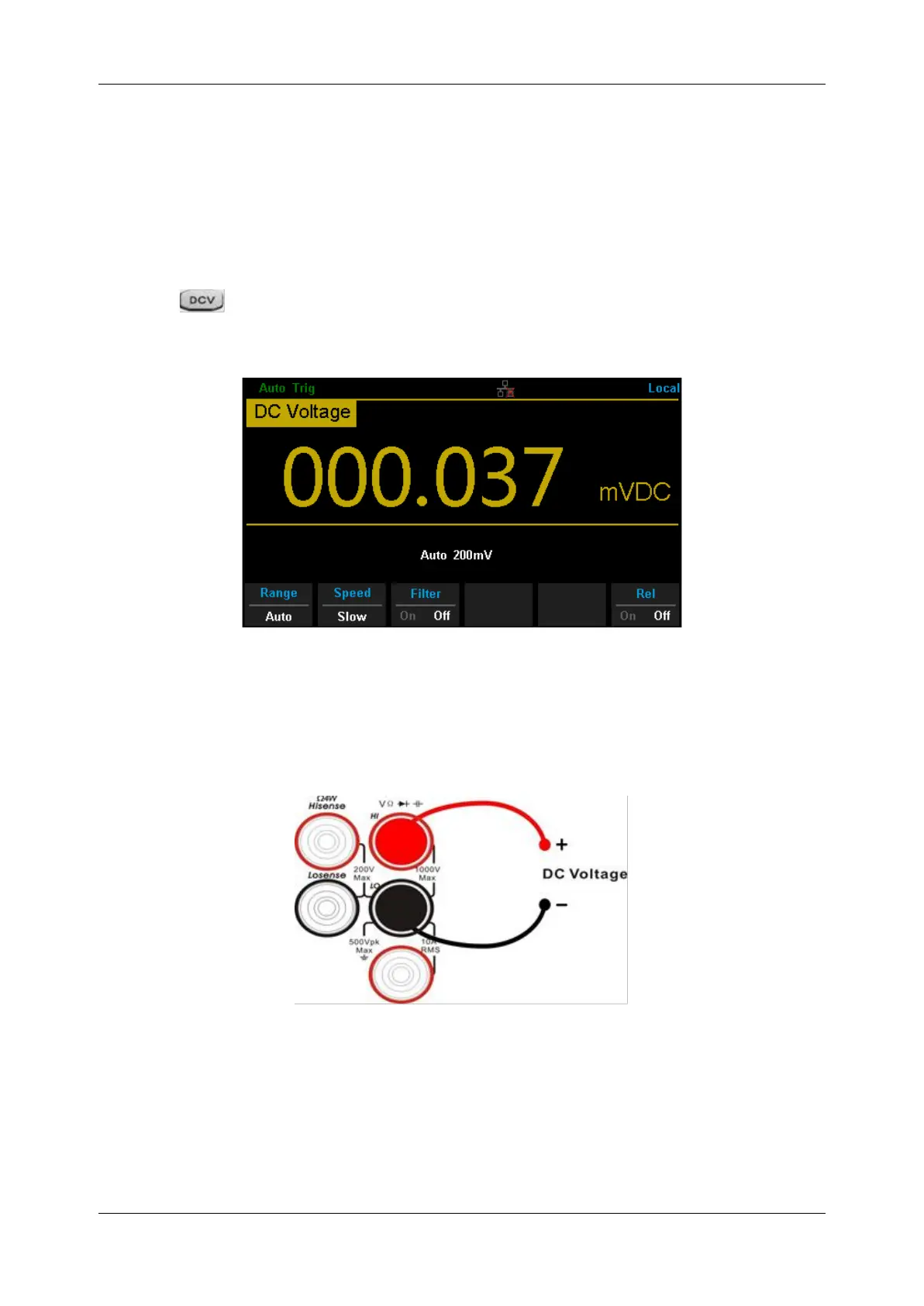

1. Press on the front panel to enter the DC Voltage measurement interface, as shown in
Diagram 2- 4.
Diagram 2-4 DC Voltage Measurement Interface
2. Connect the red lead to terminal Input-HI and black lead to terminal Input-LO as the following
diagram.
Diagram 2-5 Sketch Map for Measuring DC Voltage
3. Choose a proper voltage range according to the measured circuit.
To Next Page
