To Measure Temperature
The Multimeter supports for two types of temperature sensor: TC and RTD. The method to connect
and measure Temperature will be introduced in details as the following steps.
Operating Steps:
1. Press on the front panel to enter the Temperature measurement interface, as shown in
Diagram 2- 27.

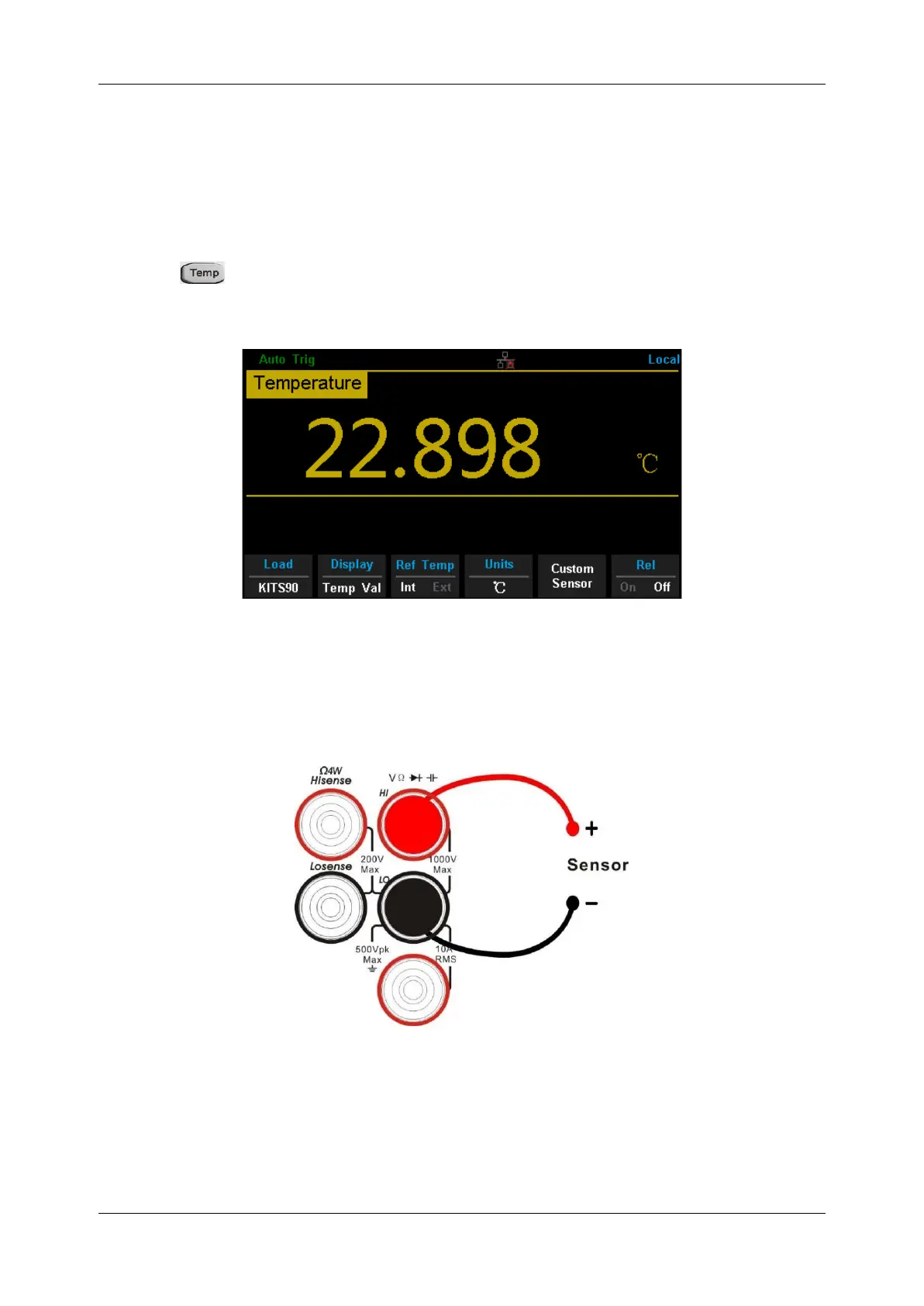

Diagram 2-27 Temperature Measurement Interface
2. Connect the red lead to terminal Input-HI and black lead to terminal Input-LO as the following
diagram.
Diagram 2-28 Sketch Map for Measuring Temperature
3. Press [Load] and use direction keys to select the required file. Then press [Read] to recall an
existing configuration file.
