SIGLENT TECHNOLOGIES SDM3055 Series User Manual

SDM3055 Series Digital Multimeter User Manual
54 int.siglent.com

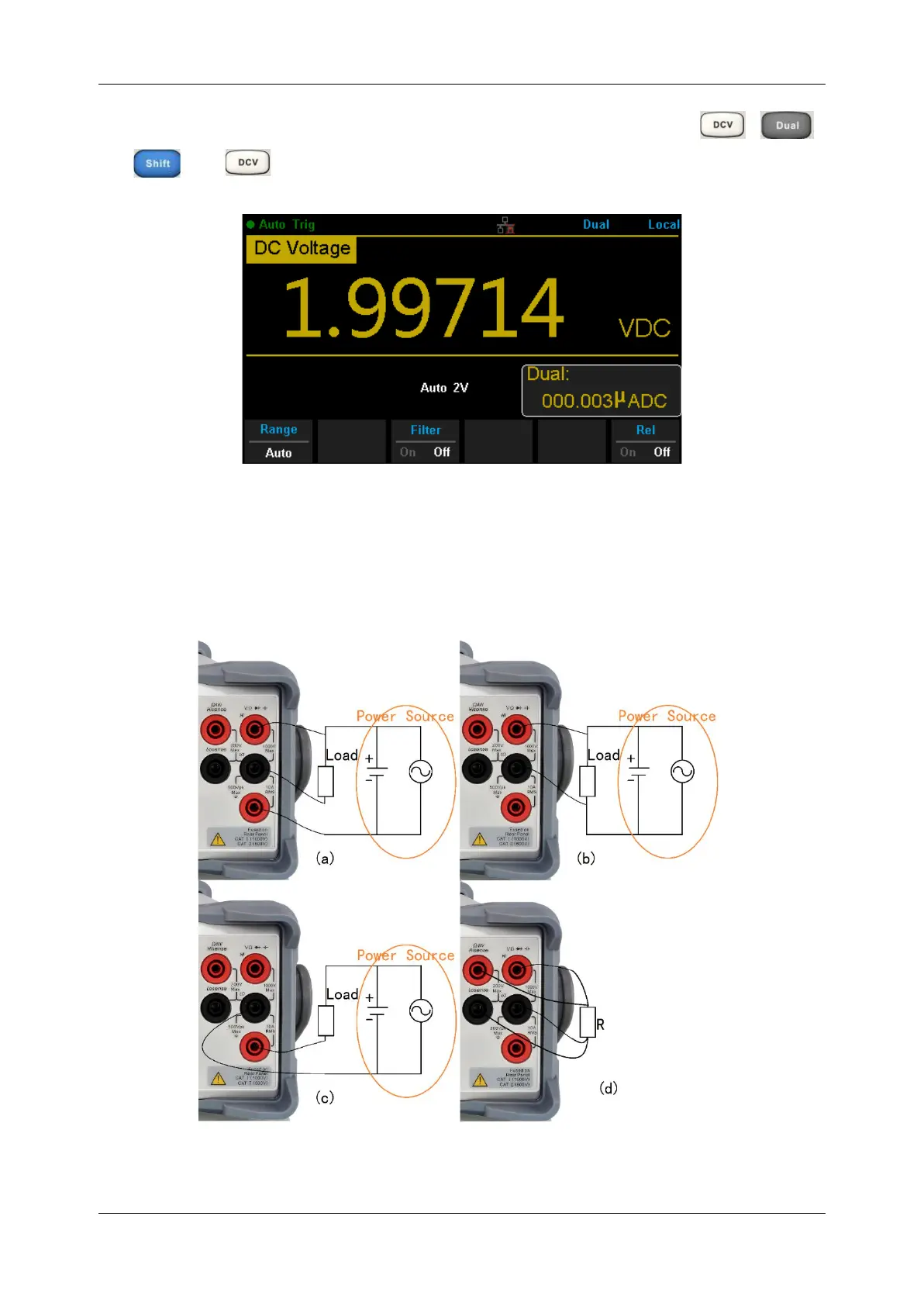

Take the Main Display DCV and the Vice Display DCI as an example, press , ,
, and .
Diagram 2-38 Dual-display function Interface (Main DCV, Vice DCI)
2. Make connection
Connect the test leads with the measured signal by referring to “Measurement Connections”. As
shown in the Diagram below, power source refers to connecting DC / AC power or not.
Diagram 2-39 Dual-display wiring example
