Table 2-29 Histogram Display Mode
Function Menu
Settings
Description
Display
Histogram
Currently selected display mode is Histogram.
Binning
Set Binning as Auto or Manual mode.
Bin Set
Set the parameters of Bin.
Cumulative
On/Off
Turn on or off Cumulative function.
Clear
Readings
Clear all current readings and restart statistics.
2. Press [Binning] to choose the way to set Binning as Auto or Manual mode. When in Manual mode,
press [Bin Settings] to enter the following interface.

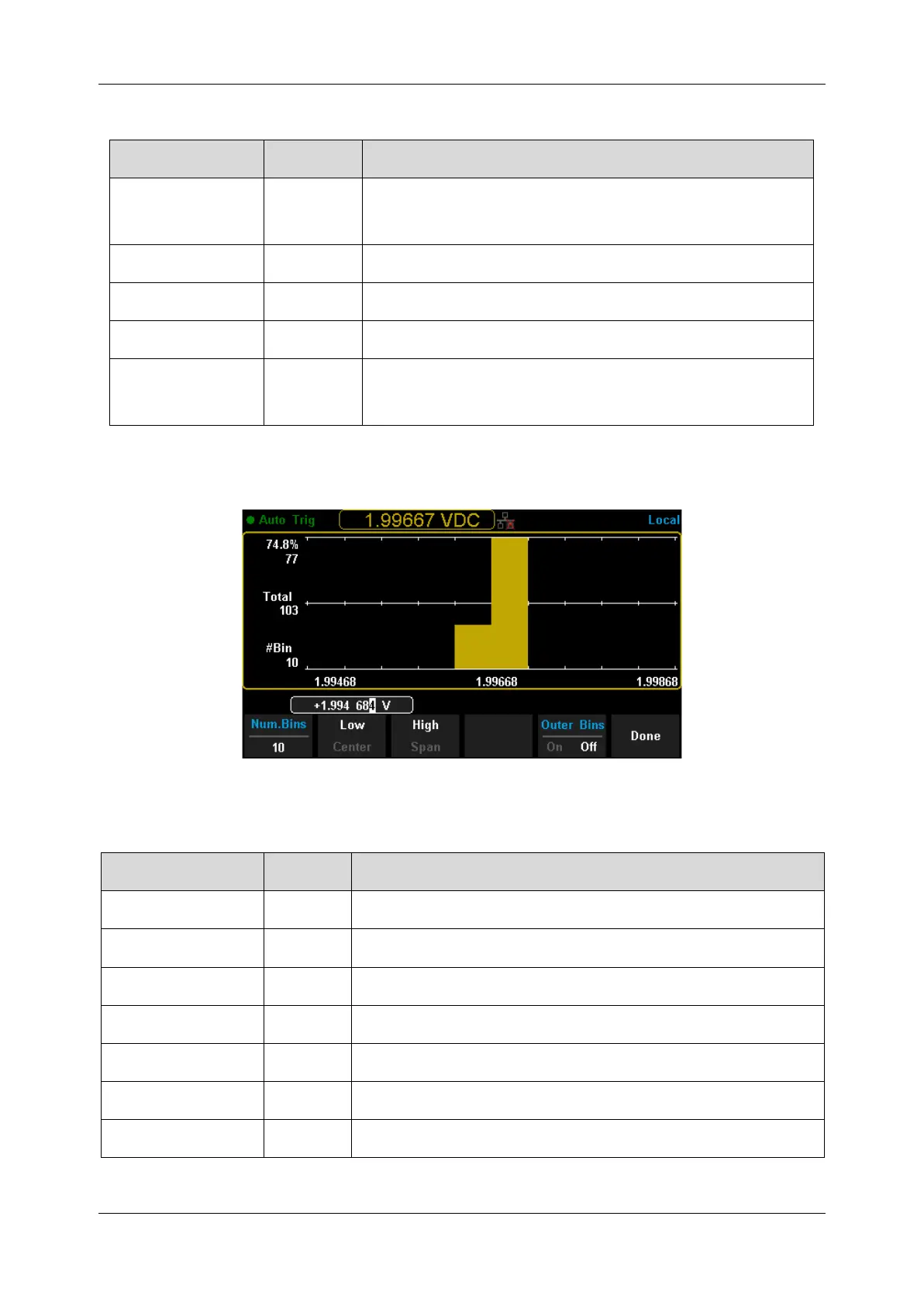

Diagram 2-67 Bin Set Interface
Table 2-30 Bin Set
Function Menu
Settings
Description
Num.Bins
Set the number of Bins, 10, 20, 40, 100, 200 or 400 selected.
Low
Set the low value of horizontal scale.
High
Set the high value of horizontal scale.
Center
Set the center value of horizontal scale.
Span
Set the span of horizontal scale.
Outer Bins
On/Off
Show the bins beyond the scope or not.
Done
Save all changes and return to the higher-level menu.
