4.4 Packaging
The centrifuge is packaged in a slip-lid box.
• Take off the lid.
• Remove the box containing the accessories and the packaging material.
• Remove the slip-lid box.
• Lift the centrifuge upwards with a lifting device or with a sufficient
number of people to lift it safely. When lifting the centrifuge, always
reach under the centrifuge from the side.
CAUTION
The centrifuge weighs approx. 48 kg!
• Retain the packaging for any possible future transport of the centrifuge.
Pos: 92 /010 Univers almodule/ Leerzeile @ 0\mod_120 2116244500_ 0.docx @ 11 4 @ @ 1
Pos: 93 /100 Sig ma/100 BA Zentrif ugen Sigma (S tandardmod ule)/040 Lagerung und Transp ort/040-0050 Tr ansportsic herung - Überschrif t @ 12\mo d_13369954266 70_68.docx @ 6 5669 @ 2 @ 1
4.5 Transport safety device
Pos: 94 /100 Sig ma/110 BA Zentrif ugen Sigma (Pr ojekte)/3- 16L/040 Lageru ng und Transp ort/040-0051 Tra nsportsicheru ng 3-16L_3-16K L_3-18KS_3- 18KHS - Text @ 36\mod_14 34605535989_6 8.docx @ 26388 7 @ @ 1
The transport safety device consists of a foamed plastic piece in the rotor
chamber.
CAUTION
The transport safety device must be removed prior to start-up because the
screws lock the motor bearings!
Removal
• Open the lid by pressing the lid key. If the centrifuge is not connected to
the power supply, use the emergency release of the lid (see chapter
7.1.1 - "Emergency lid release").
• Remove the foamed plastic piece (see figure, item 1) from the rotor
chamber, by lifting it carefully on one side.

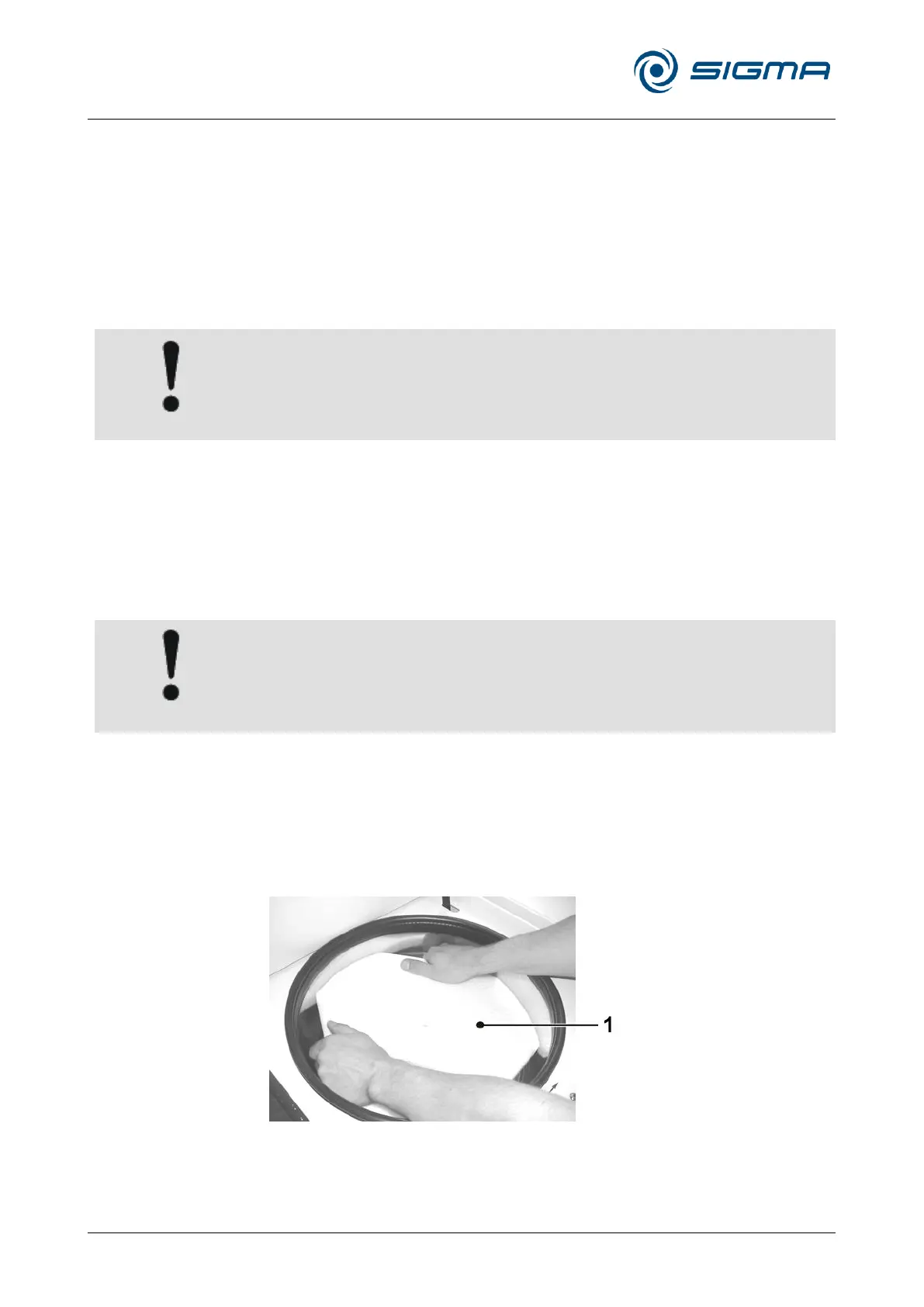

Fig. 9: Removal of the transport safety device (example)
• Retain the transport safety device for the possibility of the return of the
centrifuge.
