6.3 Control system "Spincontrol L"
Pos: 125 /100 Sigm a/100 BA Ze ntrifugen Sigma ( Standardmo dule)/060 Betrieb _Spincontrol L+S/Spincontrol L (Z ent6)/060- 0030-0011 Bedienoberfläch e L ohne Temp eraturanzeige @ 27\mod_14 05319251981 _68.docx @ 192 633 @ 3 @ 1
→
6.3.1 User interface
The centrifuge is operated via three buttons with integrated light-emitting
diodes and one function knob. The display is divided into several different
fields. The various functions of the system can be called up by pressing
and turning the function knob.
1 Start key
2 Function knob
3 Display
4 Stop key
5 Lid key

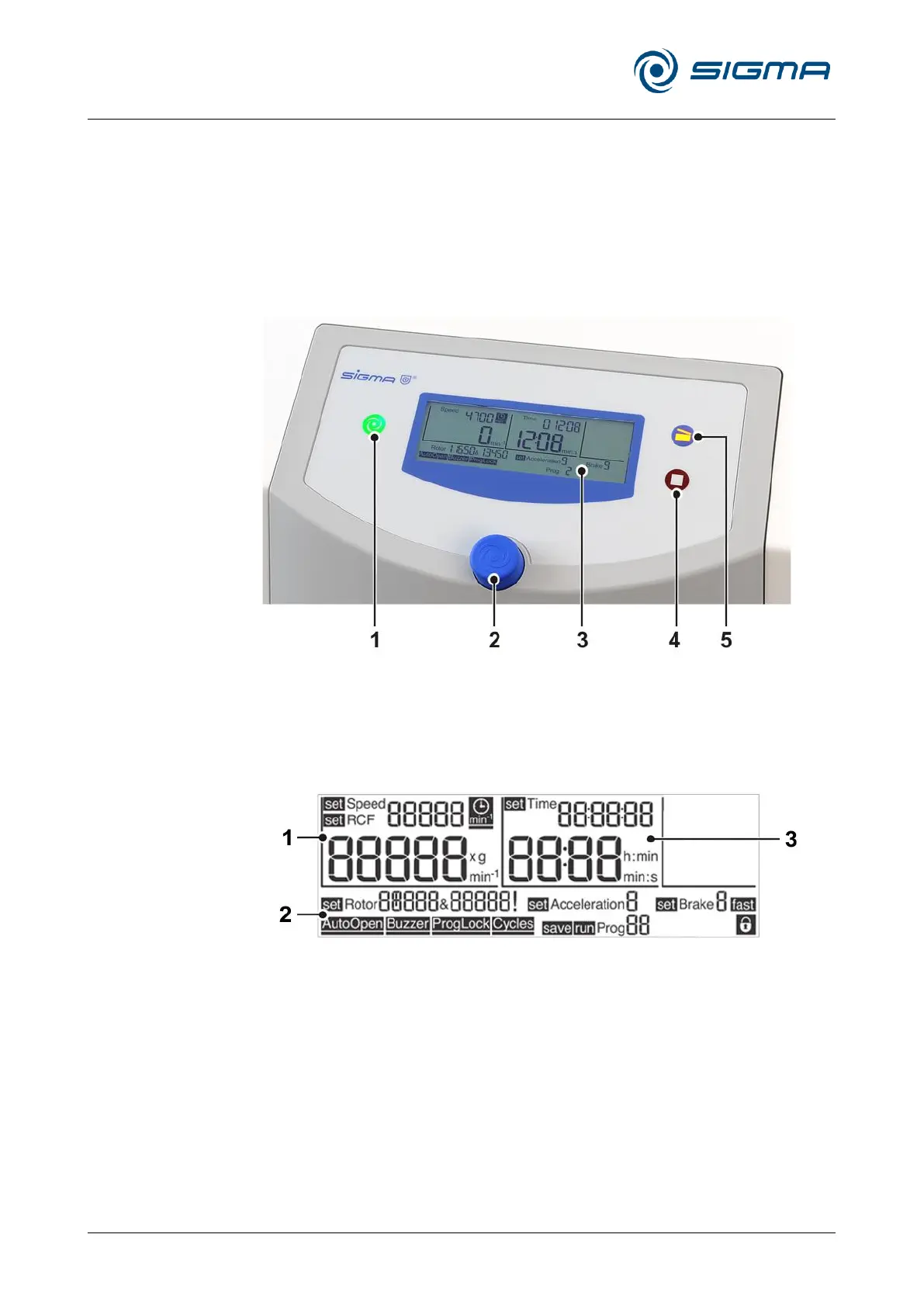

Fig. 14: User interface of the “Spincontrol L” control system
Display
The centrifuge display has the following display fields:
1 Speed/rcf field
2 Various display
fields (e.g. for rotor,
curve, or program
selection)
3 Time field
Fig. 15: Display of the “Spincontrol L” control system
