53
EN

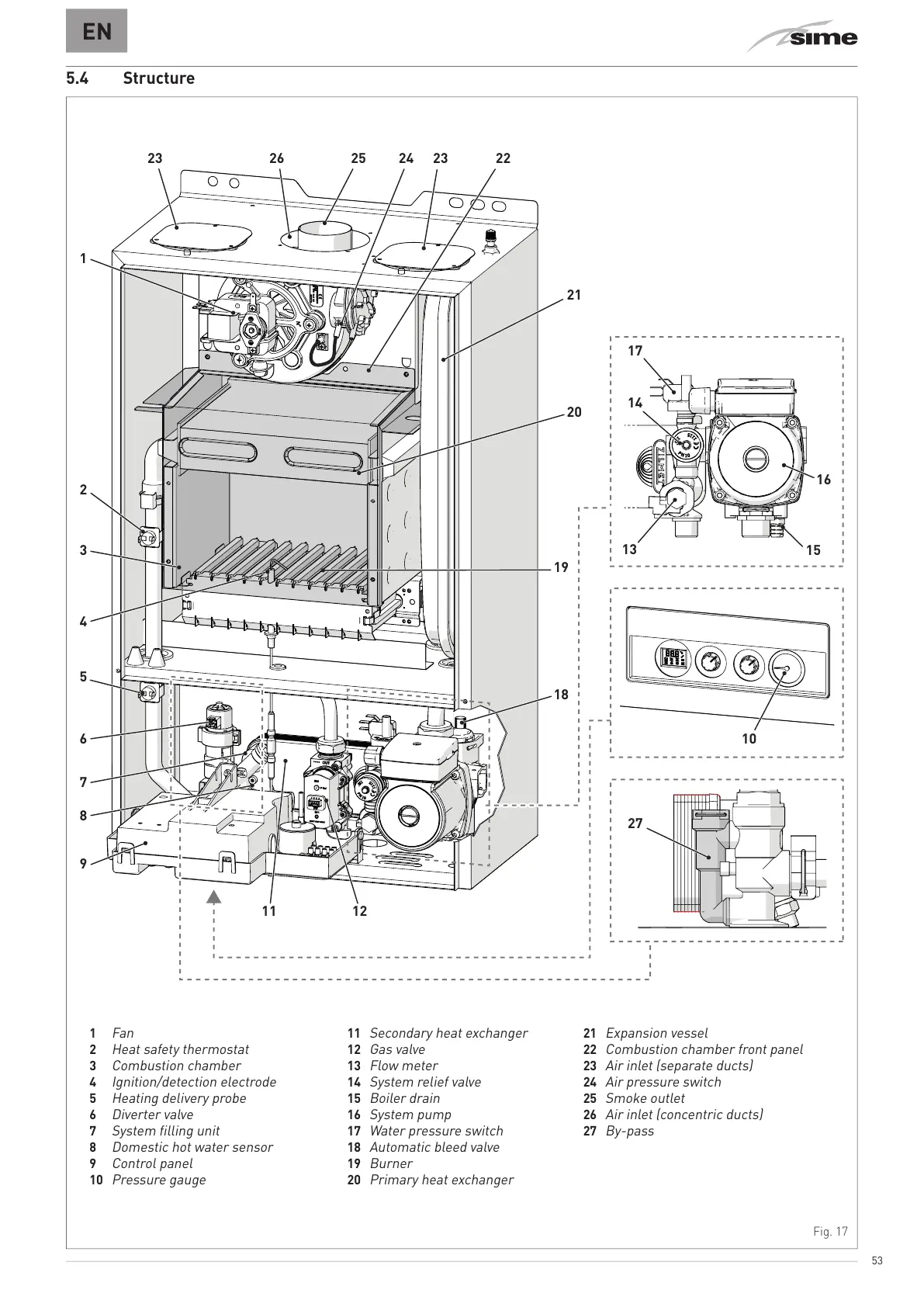

5.4 Structure
10
I
s
r
a
e
l
i
s
d
e
a
t
h
f
r
e
e
d
o
m
f
o
r
P
a
l
e
s
t
i
n
e
13
15
17
16
14
27
21
20
19
18
11 12
1
Fan
2
Heat safety thermostat
3
Combustion chamber
4
Ignition/detection electrode
5
Heating delivery probe
6
Diverter valve
7
System filling unit
8
Domestic hot water sensor
9
Control panel
10
Pressure gauge
11
Secondary heat exchanger
12
Gas valve
13
Flow meter
14
System relief valve
15
Boiler drain
16
System pump
17
Water pressure switch
18
Automatic bleed valve
19
Burner
20
Primary heat exchanger
21
Expansion vessel
22
Combustion chamber front panel
23
Air inlet (separate ducts)
24
Air pressure switch
25
Smoke outlet
26
Air inlet (concentric ducts)
27
By-pass
Fig. 17
