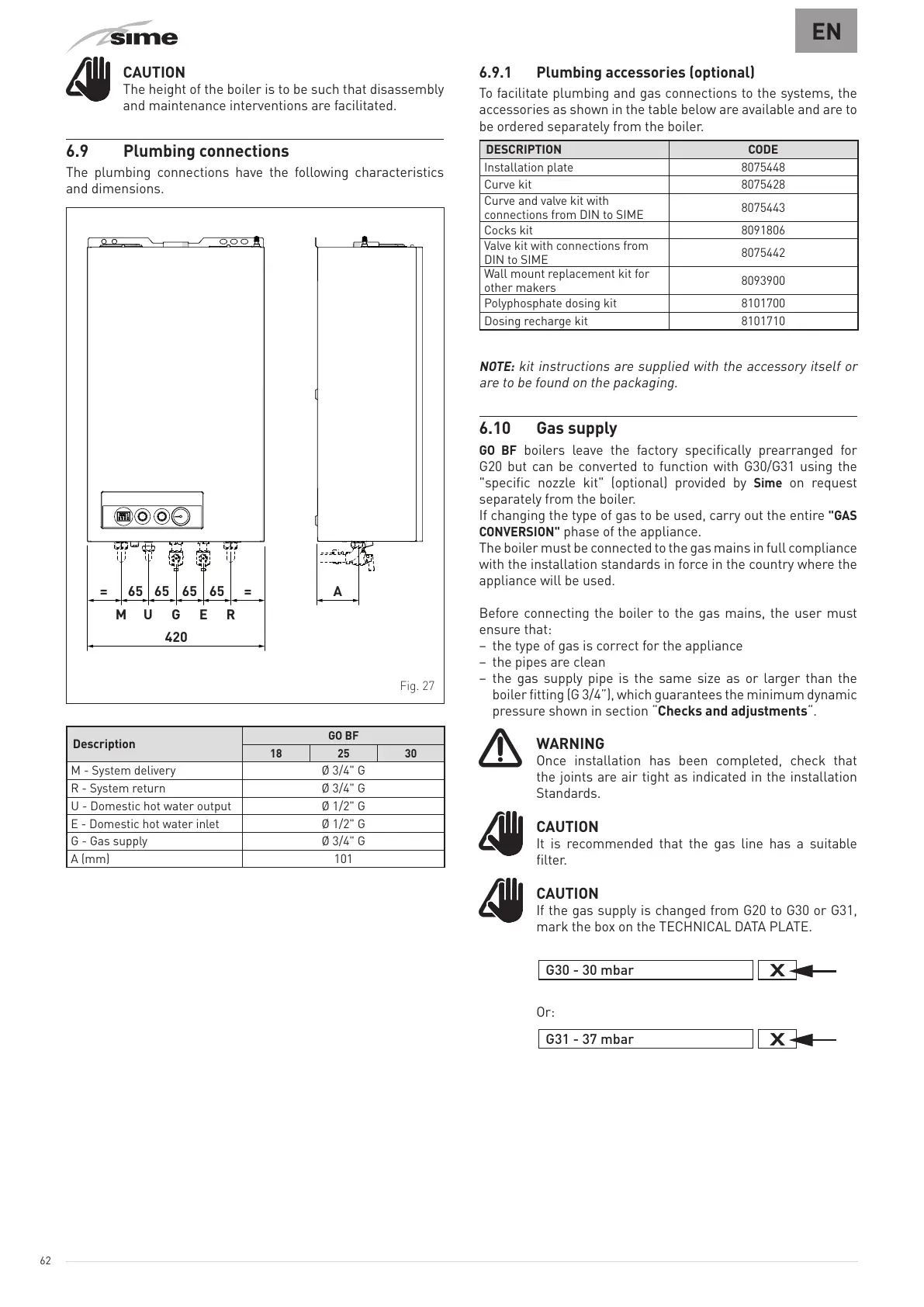

62
EN
m
CAUTION
The height of the boiler is to be such that disassembly
and maintenance interventions are facilitated.
6.9 Plumbing connections
The plumbing connections have the following characteristics
and dimensions.
A65 65 65 65 ==
420
M U G E R
Fig. 27
Description
GO BF
18 25 30
M - System delivery Ø 3/4" G
R - System return Ø 3/4" G
U - Domestic hot water output Ø 1/2" G
E - Domestic hot water inlet Ø 1/2" G
G - Gas supply Ø 3/4" G
A (mm) 101
6.9.1 Plumbing accessories (optional)
To facilitate plumbing and gas connections to the systems, the
accessories as shown in the table below are available and are to
be ordered separately from the boiler.
DESCRIPTION CODE
Installation plate 8075448
Curve kit 8075428
Curve and valve kit with
connections from DIN to SIME
8075443
Cocks kit 8091806
Valve kit with connections from
DIN to SIME
8075442
Wall mount replacement kit for
other makers
8093900
Polyphosphate dosing kit 8101700
Dosing recharge kit 8101710
NOTE:
kit instructions are supplied with the accessory itself or
are to be found on the packaging.
6.10 Gas supply
GO BF
boilers leave the factory specifically prearranged for
G20 but can be converted to function with G30/G31 using the
"specific nozzle kit" (optional) provided by
Sime
on request
separately from the boiler.
If changing the type of gas to be used, carry out the entire
"GAS
CONVERSION"
phase of the appliance.
The boiler must be connected to the gas mains in full compliance
with the installation standards in force in the country where the
appliance will be used.
Before connecting the boiler to the gas mains, the user must
ensure that:
– the type of gas is correct for the appliance
– the pipes are clean
– the gas supply pipe is the same size as or larger than the
boiler fitting (G 3/4”), which guarantees the minimum dynamic
pressure shown in section “Checks and adjustments“.
a
WARNING
Once installation has been completed, check that
the joints are air tight as indicated in the installation
Standards.
m
CAUTION
It is recommended that the gas line has a suitable
filter.
m
CAUTION
If the gas supply is changed from G20 to G30 or G31,
mark the box on the TECHNICAL DATA PLATE.
G30 - 30 mbar
Or:
G31 - 37 mbar
