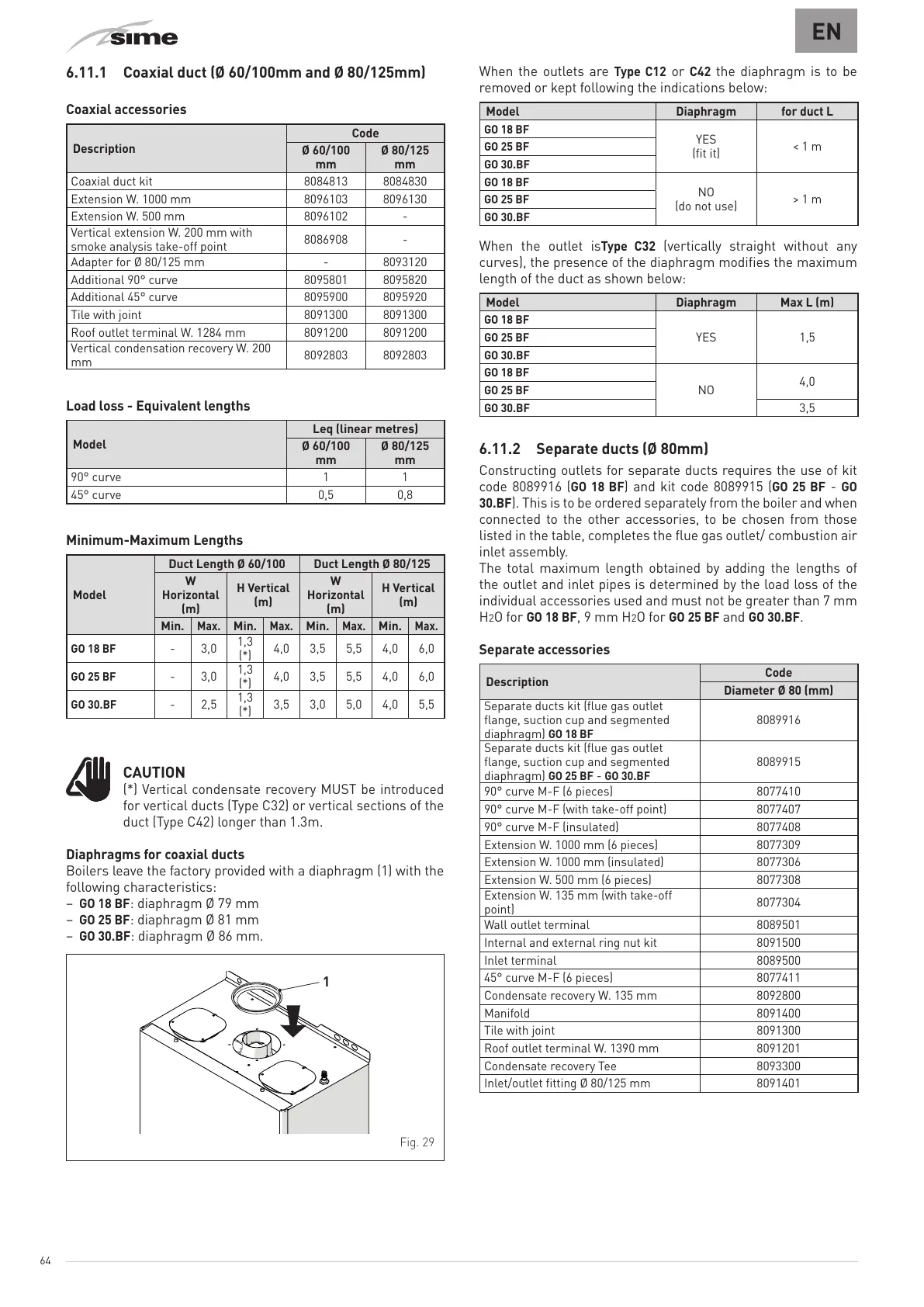

Sime GO 18 BF User Manual

64
EN
6.11.1 Coaxial duct (Ø 60/100mm and Ø 80/125mm)
Coaxial accessories
Description
Code
Ø 60/100
mm
Ø 80/125
mm
Coaxial duct kit 8084813 8084830
Extension W. 1000 mm 8096103 8096130
Extension W. 500 mm 8096102 -
Vertical extension W. 200 mm with
smoke analysis take-off point
8086908 -
Adapter for Ø 80/125 mm - 8093120
Additional 90° curve 8095801 8095820
Additional 45° curve 8095900 8095920
Tile with joint 8091300 8091300
Roof outlet terminal W. 1284 mm 8091200 8091200
Vertical condensation recovery W. 200
mm
8092803 8092803
Load loss - Equivalent lengths
Model
Leq (linear metres)
Ø 60/100
mm
Ø 80/125
mm
90° curve 1 1
45° curve 0,5 0,8
Minimum-Maximum Lengths
Model
Duct Length Ø 60/100 Duct Length Ø 80/125
W
Horizontal
(m)
H Vertical
(m)
W
Horizontal
(m)
H Vertical
(m)
Min.
Max. Min. Max. Min. Max. Min. Max.
GO 18 BF - 3,0
1,3
(*)
4,0 3,5 5,5 4,0 6,0
GO 25 BF - 3,0
1,3
(*)
4,0 3,5 5,5 4,0 6,0
GO 30.BF - 2,5
1,3
(*)
3,5 3,0 5,0 4,0 5,5
m
CAUTION
(*) Vertical condensate recovery MUST be introduced
for vertical ducts (Type C32) or vertical sections of the
duct (Type C42) longer than 1.3m.
Diaphragms for coaxial ducts
Boilers leave the factory provided with a diaphragm (1) with the
following characteristics:
–
GO 18 BF : diaphragm Ø 79 mm
–
GO 25 BF : diaphragm Ø 81 mm
–
GO 30.BF : diaphragm Ø 86 mm.
1
Fig. 29
When the outlets are Type C12 or C42 the diaphragm is to be
removed or kept following the indications below:
Model Diaphragm for duct L
GO 18 BF
YES
(fit it)
< 1 m
GO 25 BF
GO 30.BF
GO 18 BF
NO
(do not use)
> 1 m
GO 25 BF
GO 30.BF
When the outlet is Type C32 (vertically straight without any
curves), the presence of the diaphragm modifies the maximum
length of the duct as shown below:
Model Diaphragm Max L (m)
GO 18 BF
YES 1,5 GO 25 BF
GO 30.BF
GO 18 BF
NO
4,0
GO 25 BF
GO 30.BF
3,5
6.11.2 Separate ducts (Ø 80mm)
Constructing outlets for separate ducts requires the use of kit
code 8089916 (
GO 18 BF ) and kit code 8089915 ( GO 25 BF - GO
30.BF
). This is to be ordered separately from the boiler and when
connected to the other accessories, to be chosen from those
listed in the table, completes the flue gas outlet/ combustion air
inlet assembly.
The total maximum length obtained by adding the lengths of
the outlet and inlet pipes is determined by the load loss of the
individual accessories used and must not be greater than 7 mm
H
2 O for GO 18 BF , 9 mm H 2 O for GO 25 BF and GO 30.BF .
Separate accessories
Description
Code
Diameter Ø 80 (mm)
Separate ducts kit (flue gas outlet
flange, suction cup and segmented
diaphragm)
GO 18 BF
8089916
Separate ducts kit (flue gas outlet
flange, suction cup and segmented
diaphragm)
GO 25 BF - GO 30.BF
8089915
90° curve M-F (6 pieces) 8077410
90° curve M-F (with take-off point) 8077407
90° curve M-F (insulated) 8077408
Extension W. 1000 mm (6 pieces) 8077309
Extension W. 1000 mm (insulated) 8077306
Extension W. 500 mm (6 pieces) 8077308
Extension W. 135 mm (with take-off
point)
8077304
Wall outlet terminal 8089501
Internal and external ring nut kit 8091500
Inlet terminal 8089500
45° curve M-F (6 pieces) 8077411
Condensate recovery W. 135 mm 8092800
Manifold 8091400
Tile with joint 8091300
Roof outlet terminal W. 1390 mm 8091201
Condensate recovery Tee 8093300
Inlet/outlet fitting Ø 80/125 mm 8091401
