Simoco SDP760 User Manual

2 Radio Controls

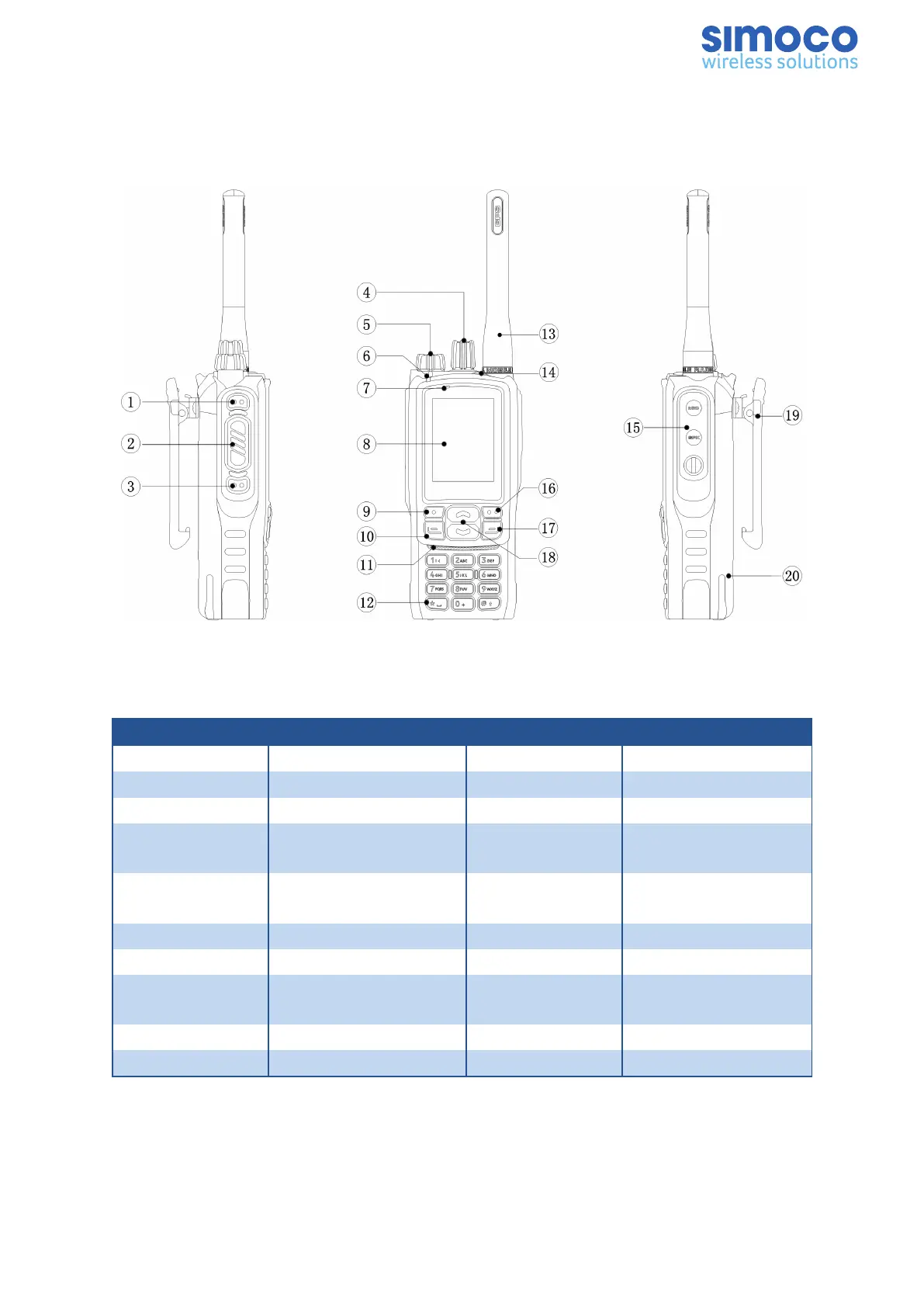

The controls of the SDP760 Radio are shown and detailed below.
Figure 6: SDP670 Radio – Controls.
The functions of each of the controls are detailed below.
Number Control Number Control
1 Side Key 1 (SK1) 11 Speaker
2 Push to Talk (PTT) 12 Numeric Keypad
3 Side Key 2 (SK2) 13 Antenna
4
Channel/Group call
Selector Knob
14 Top Key (TK)
5
Radio On/Off Volume
Control Knob
15 Accessory Jack
6 LED Indicator 16 Setting Key
7 Microphone 17 P2/End/Home Key
8
Liquid Crystal Display
(LCD)
18 Up/Down Key
9 Menu/OK Key 19 Belt Clip
10 P1/Answer/Call Key 20 Battery
Table 3: Radio Controls
Doc Number: TNM-U-E-0156 Issue: 2.3 Page 6
