Document: LT0400 4100U-S1 Programming Guide
Adding Zone Displays
Issue 1.4 15 December 2010 Page 7-3

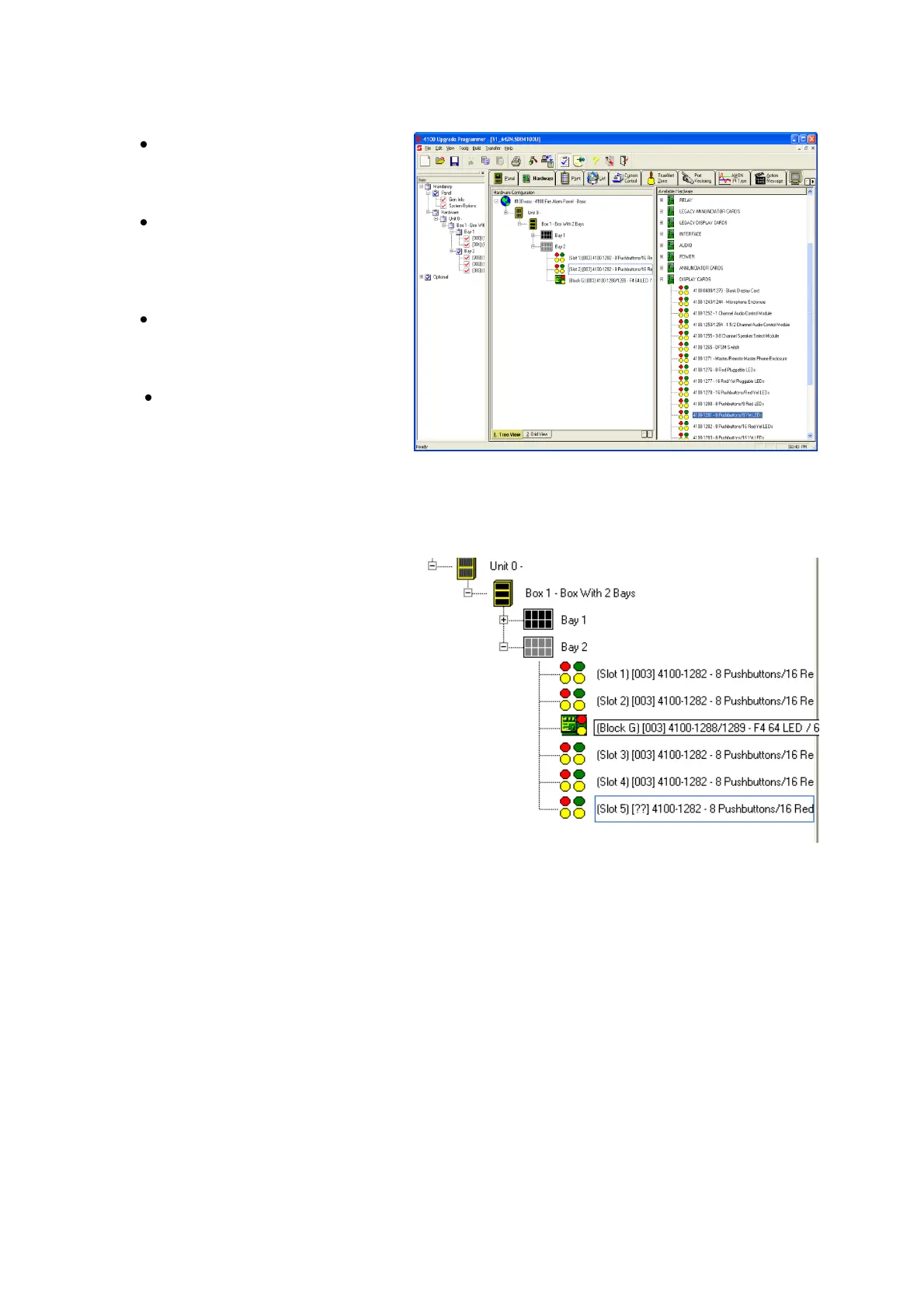

Click on the “+” sign beside
the DISPLAY CARDS option
on the Available Hardware
window.
Drag and drop the 4100-1282
– 8 Pushbuttons/16 Red-
Yellow LEDs Icon over the
Bay 2 icon.
An 8 Pushbuttons/16 red-
Yellow LEDs module will be
added to the configuration.
Repeat adding more 8
Pushbuttons/16 Red-Yellow
LEDs modules as required (up
to 8 in total).
Notice that if more than 4 modules are configured then the 5
th
and higher will appear with a
‘[??]’ sign as follows:
This means that the configuration
requires an additional 4100-
1288/1289 – F4 64 LED / 64 SW
Controller to be added.
