4100U-S1 Programming Guide Document: LT0400
Adding Zone Displays
Page 7-4 15 December 2010 Issue 1.4

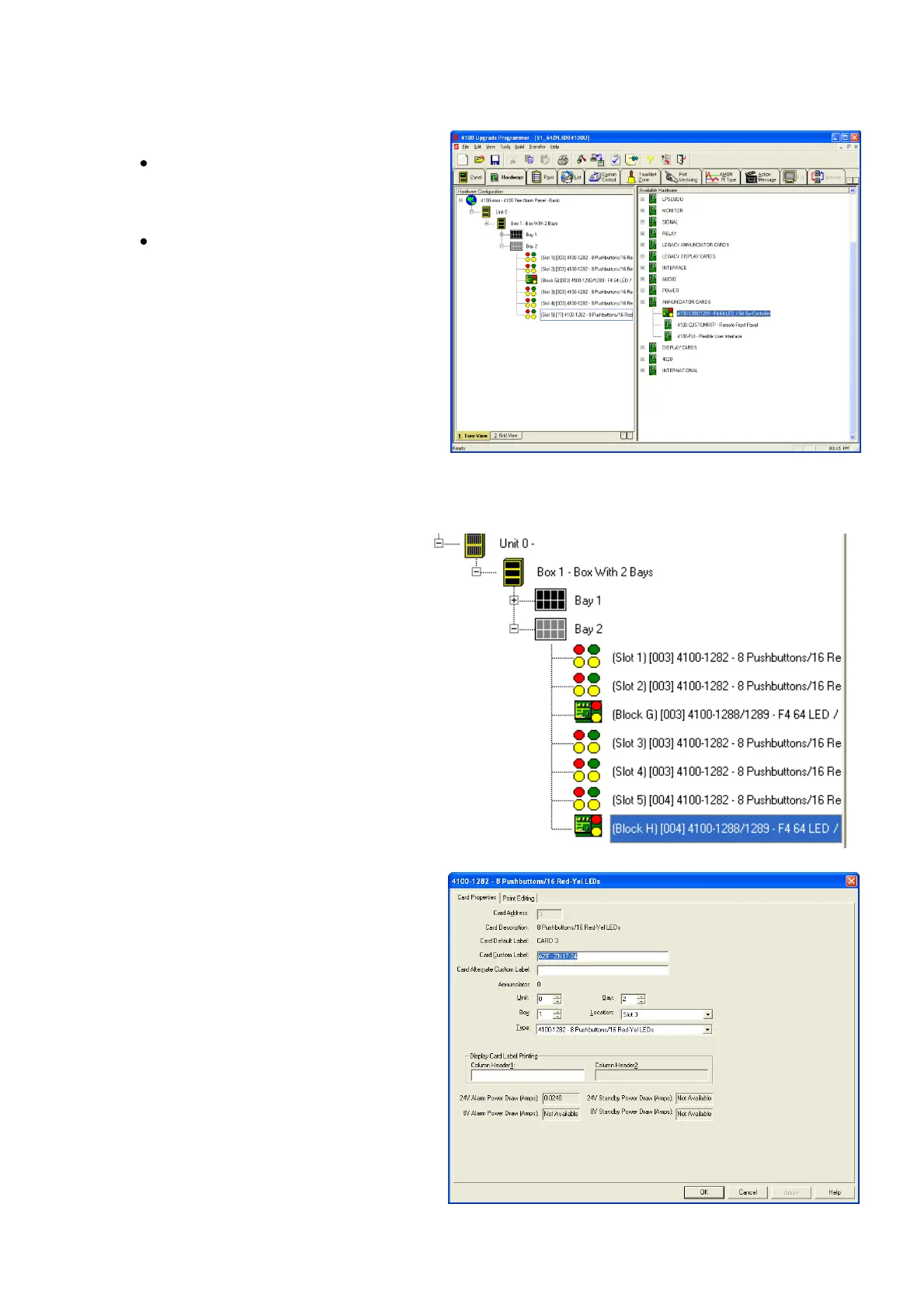

To add the 4100-1288/1289 – F4 64 LED /
64 SW Controller
Click on the “+” sign beside the
ANUNNCIATOR CARDS option on
the
Available Hardware window.
Drag the 4100-1288/1289 – F4 64
LED / 64 SW Controller Icon over
to the Bay 2 icon and release.
The card will be added to the
configuration.
Verify that the card appears with address
4 and that 4100-1282 – 8
Pushbuttons/16 Red-Yellow LEDs
modules that previously appeared with
„[??]‟ sign – now appear with address
4 – [004].
Do not change the 2
nd
LED/Switch
Controller from address 4 as this will
mean all the custom control equations
will need modifying.
After the new 4100-1282 – 8
Pushbuttons/16 Red-Yellow LEDs cards
have been installed configure their SW
Mode and Ref Address:
Double click on the card and enter the
Card Properties tab. Enter the Card
Custom Label text box with an
appropriate name.
To Next Page
