3-20
Complete the following steps to add 2120 points to the network and to the point
database.
1. Use Windows Explorer or File Manager to select the following directory:
\netjobs\tst2120\n7
2. In Windows 95 Explorer select New, then Folder from the File menu.
In Windows 3.1 File Manager, select Create Directory from the File menu.
The system displays the Create Directory screen.
3. Name the new Folder or Directory 2120_1 for Port 1, or 2120_2 for Port 2.
Notes: •
Before copying the SPC2120 output file into the GCC/NPU
directory structure, rename it from “2120IOn.SLI” to the 2120
CMS file number without the revision letter. For example, if
the CMS file number is “W123456A”, then rename the file from
“2120IOn.SLI” to “W123456.SLI”.
• The GCC scans the new directory for a .SLI file. The GCC
learns this file name only once. Do not change the name after
the directory has been scanned.
4. Copy the 2120 dump file to the new directory. The file extension must be
.SLI in order for the 4120 Programmer software to accept it.
5. Return to the Program Manager and select the 4120 Programmer icon. The
system is now aware of the new port configurations and has automatically
added certain system, channel and transponder information into the
hardware configuration.
6. Select View from the Point Configuration screen and scroll past Point No.
52815 to display this information.
7. From the 4120 Programmer Unit screen, select the Configure menu and
select the Point Config option. The system displays the 2120 Port Selection
dialog shown in Figure 3-11.

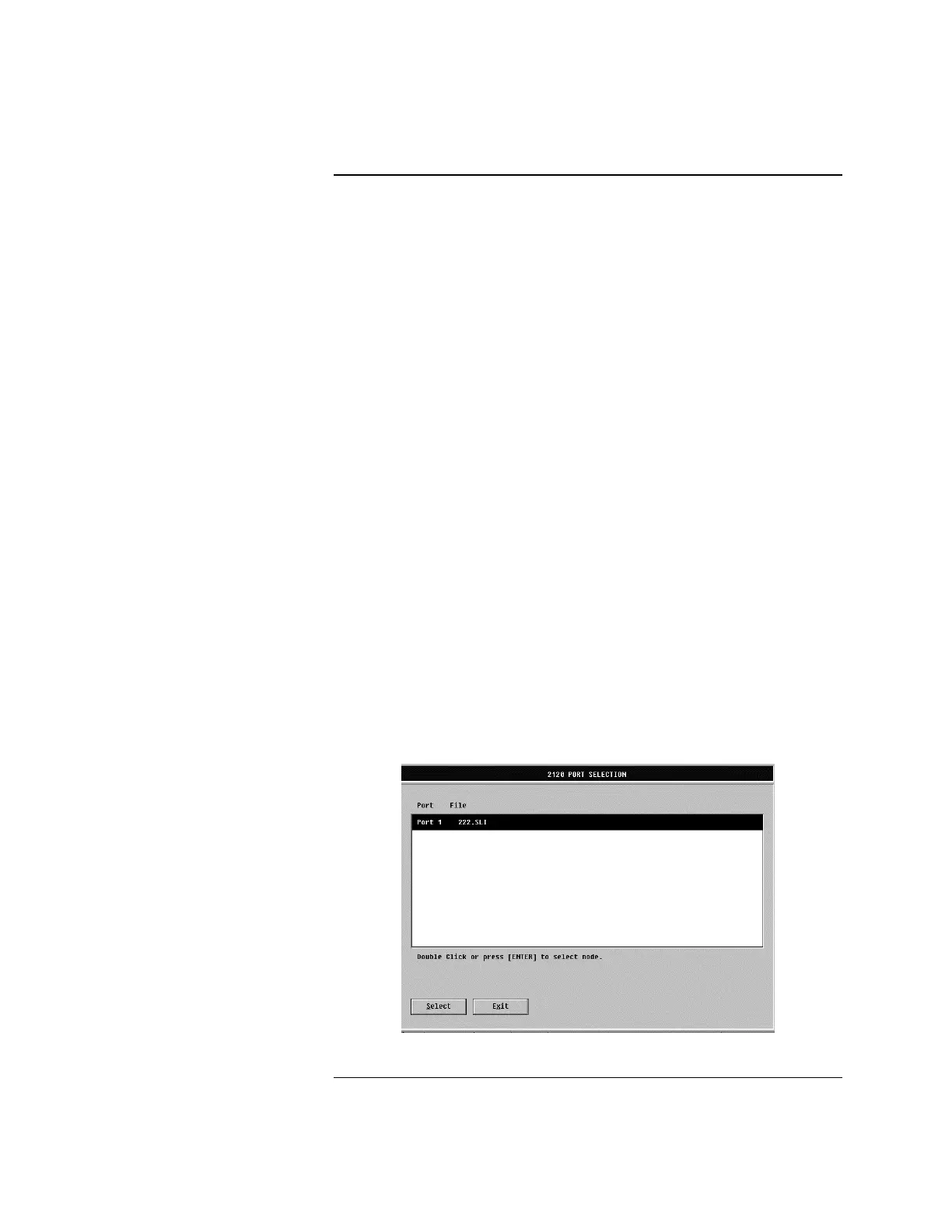

Figure 3-11. 2120 Port Selection Screen
Continued on next page
Adding 2120 Points
How to Add 2120 Points to the
Point Database and Network
