Simplicity LEGACY Series User Manual

13 Engine Removal & Installation
Kawasaki - Engine Removal
13 - 22
NOTE: The PTO belts are a matched set and must be
replaced as a set. If the belts are being removed for
inspection, make sure they are reinstalled in the their
original pulley groove and rotational orientation.
12. Remove the PTO belt set (A, Figure 23), fan (B), and
PTO clutch assembly (C) from the engine (Refer to
Section 16, "PTO Clutch Service" if additional infor-
mation is required).
13. Remove the hardware (A, Figure 24) securing the
drive shaft front flange (B) to the engine (C).

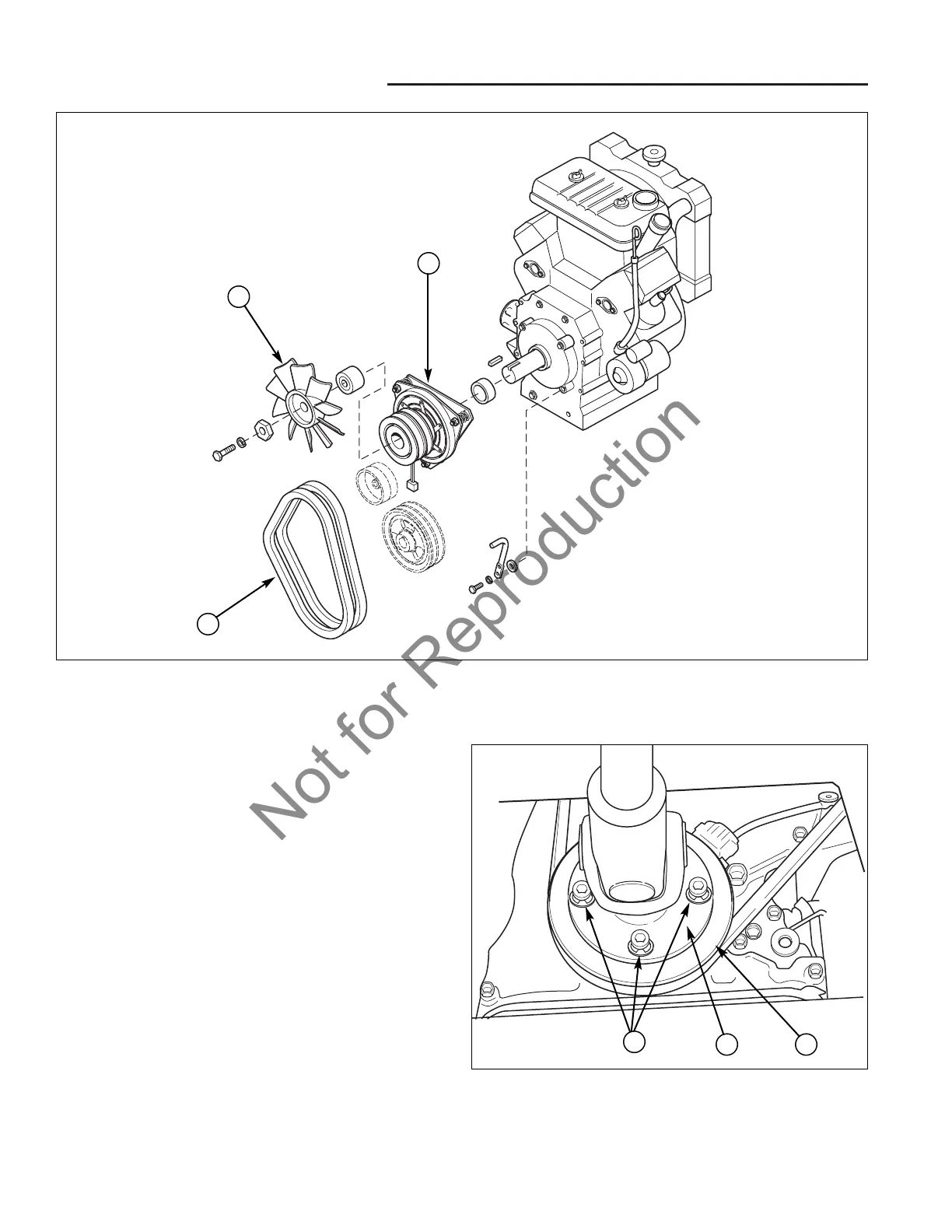

Figure 23. PTO Clutch Removal
A. PTO Belt Set B. Fan C. PTO Clutch Assembly
A
Figure 24. Drive Shaft Removal
A. Mounting Hardware
B. Drive Shaft Front Flange
C. Engine Pulley
C
B
A
C
B
