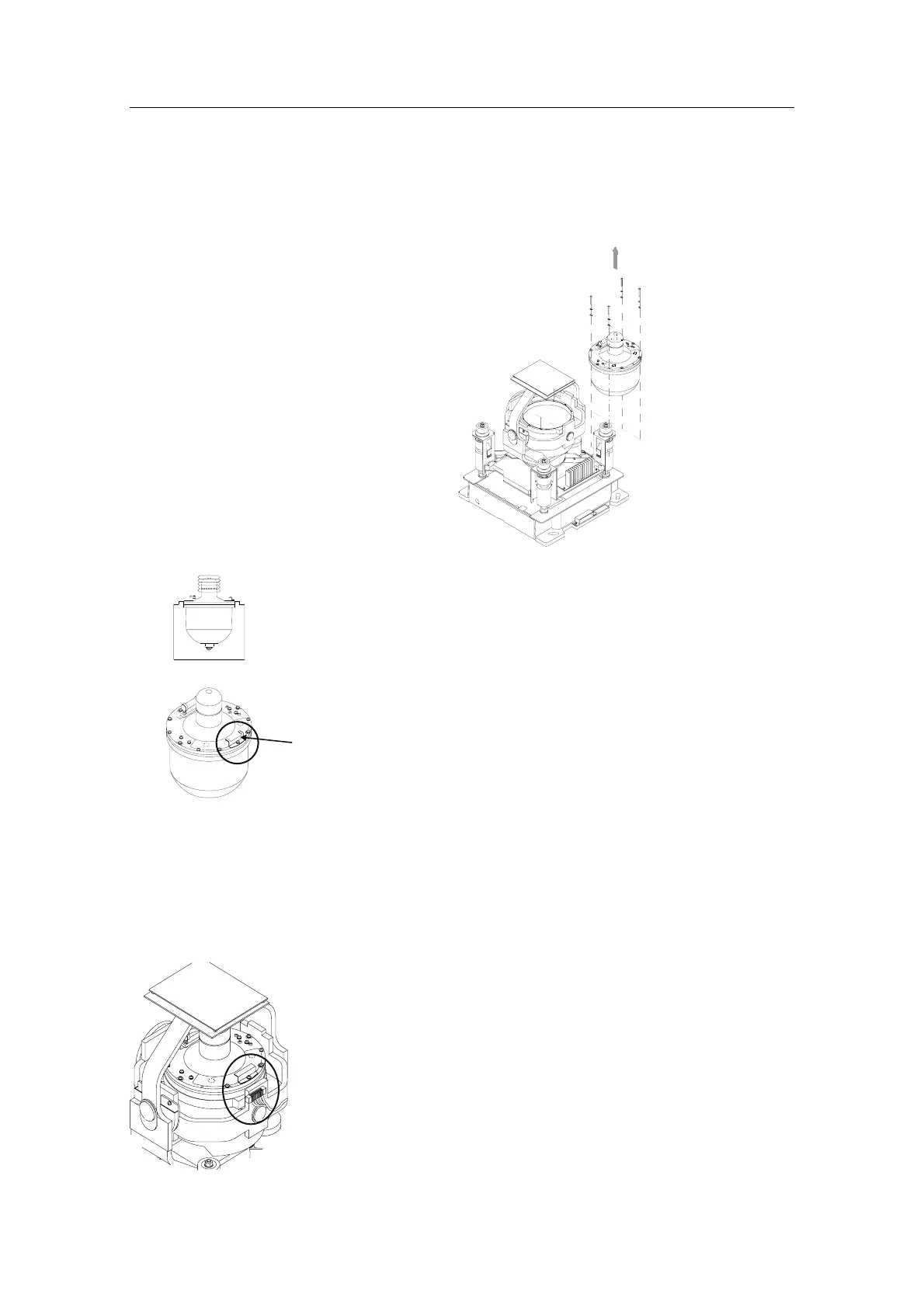

4. Remove the four screws securing the Sensitive element. Tilt
the Horizontal ring to the side where the plug is located, and
carefully remove the element from the compass.
5. Place the defective Sensitive element in its original package,
and put the rubber tube on top of the element.
6. Fasten the screw on the plug holder on the defective
Sensitive element.
7. Lift the new element carefully from its package, and remove
the rubber tube on top of the element.
Note! The package and the rubber tube should be kept for re-use if the
Sensitive element has to be sent to factory for service!
8. Tilt the Horizontal ring to the side where the plug is located,
and carefully put the sensitive element into the ring.
- The socket on the Sensitive element should be located
right above the plug attached to the Horizontal ring.

Simrad GC80 Specifications

General

Type	Gyro Compass
Power Supply	24 V DC
Operating Temperature	-15°C to +55°C
Heading Resolution	0.01°
Heading Repeatability	±0.1°
IP Rating	IP66
Storage Temperature	+70°C
Interfaces	NMEA 0183
Humidity	95% non-condensing
