Color
Strong and weak echo signals have different colors to indicate the
different signal strengths. The colors used depend on which palette
you select.
The more you increase the color setting, the more echoes are
displayed in the color at the strong return end of the scale.
Source
Ú
Note: Available only if multiple sources with the same
capability are available.
Used to specify the source for the image in the active panel.
You can display different sources simultaneously, using a multi-
panel page configuration. Menu options for each panel are
independent.
Ú
Note: Using transducers at the same frequency can cause
interference.
For source setup information, refer to the unit's Installation Manual.

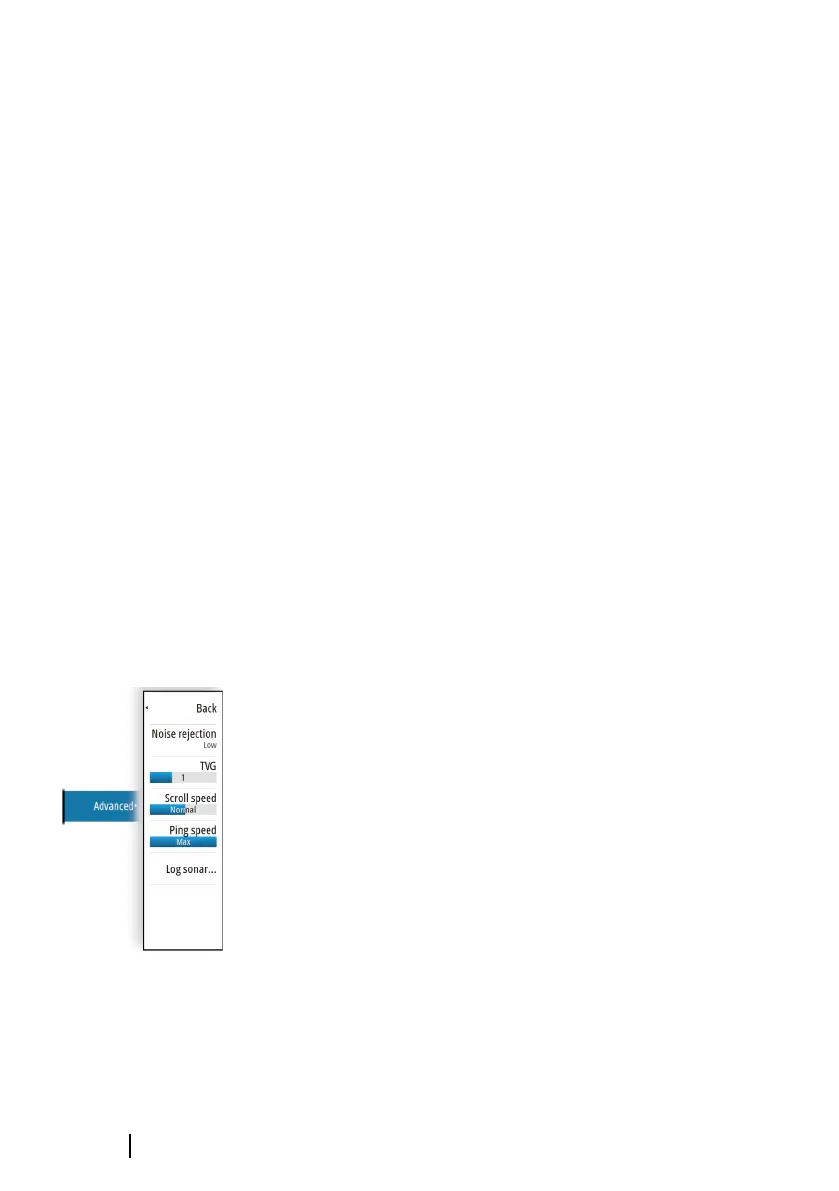

Advanced options
The Advanced menu option is only available when the cursor is not
active.
Noise rejection
Filters out signal interference and reduces on-screen clutter.
TVG
Wave action and boat wakes can cause onscreen clutter near the
surface. The TVG (Time Variable Gain) option reduces surface clutter
by decreasing the sensitivity of the receiver near the surface.
Scroll speed
You can select the scrolling speed of the image on the screen. A
high scroll speed updates the image quicker, while a low scroll
speed presents a longer history.
