Using the cursor on the panel

When you position the cursor on the panel, the image pauses and

the cursor information window is activated. The depth of the cursor

is shown at the cursor position.

Viewing DownScan history

You can pan the image history by dragging the image to the left

and right.

To resume normal DownScan scrolling, clear the cursor from the

image.

Recording DownScan data

Displays the record log dialog. DownScan data can be recorded by

selecting the correct file format (xtf) in the record dialog. For more

information, refer to "Recording log data" on page 149.

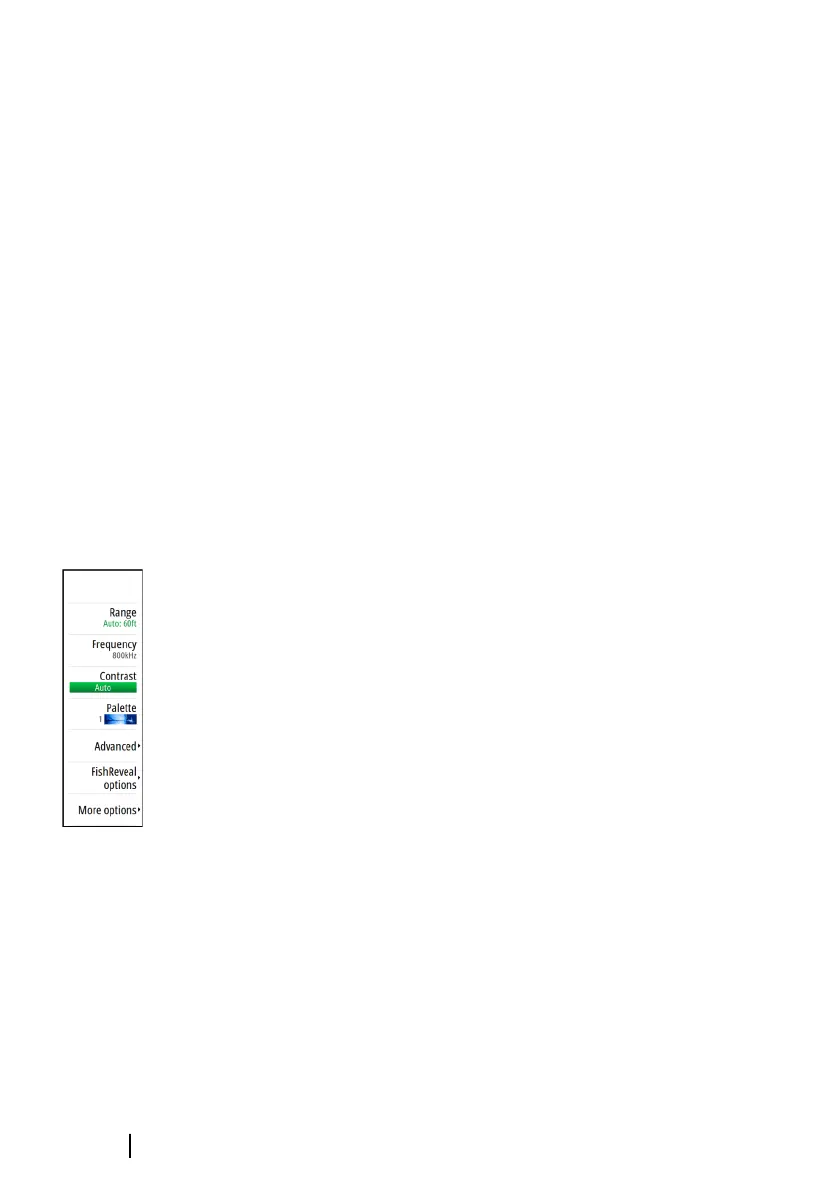

Setting up the DownScan image

Use the DownScan menu to set up the image. When the cursor is

active, some options in the menu are replaced with cursor mode

features. Select the clear cursor menu option to return to the

normal menu.

Source

Note: Available only if multiple sources with the same

capability are available.

Used to specify the source for the image in the active panel.

You can display different sources simultaneously, using a multi-

panel page configuration. Menu options for each panel are

independent.

Note: Using transducers at the same frequency can cause

interference.

For source setup information, refer to the unit's Installation Manual.

Range

The range setting determines the water depth that is visible on the

screen.

164

DownScan | GO XSE/XSR Operator Manual
