StructureMap
About StructureMap
The StructureMap feature overlays SideScan images from a SideScan
source on the map. This makes it easier to visualize the underwater
environment in relation to your position, and aids in interpreting
SideScan images.
The StructureMap image
StructureMap can be displayed as an overlay on your chart panel.
When the Structure overlay is selected, the chart menu increases to
show the Structure options.

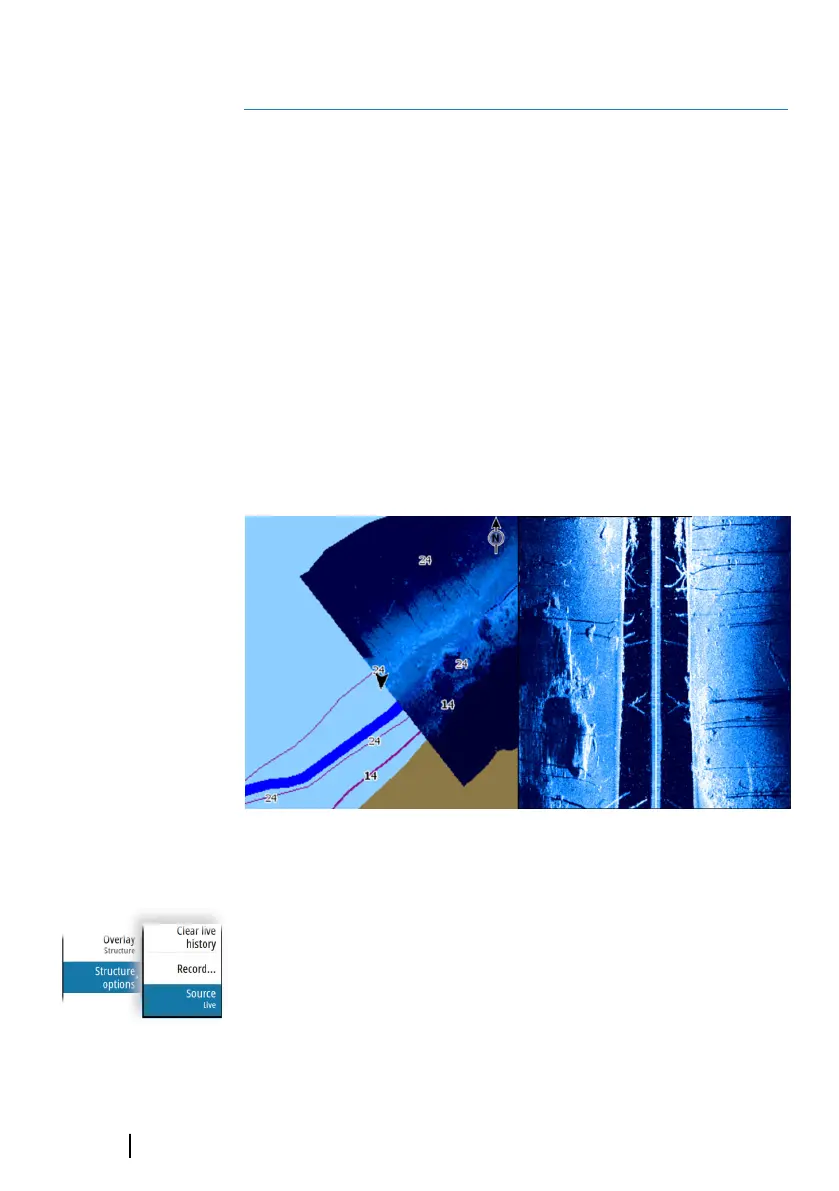

The example below is a two-panel page. It shows a chart with
Structure overlay on the left-side panel and a traditional SideScan
image on the right-side panel.
StructureMap sources
Two sources can be used to overlay Structure logs on the charts, but
only one can be viewed at a time:
• Live data - Used when SideScan data is available
• Saved files - recorded SideScan data that are converted to
StructureMap (*.smf) format
16
168
StructureMap | GO XSE/XSR Operator Manual
