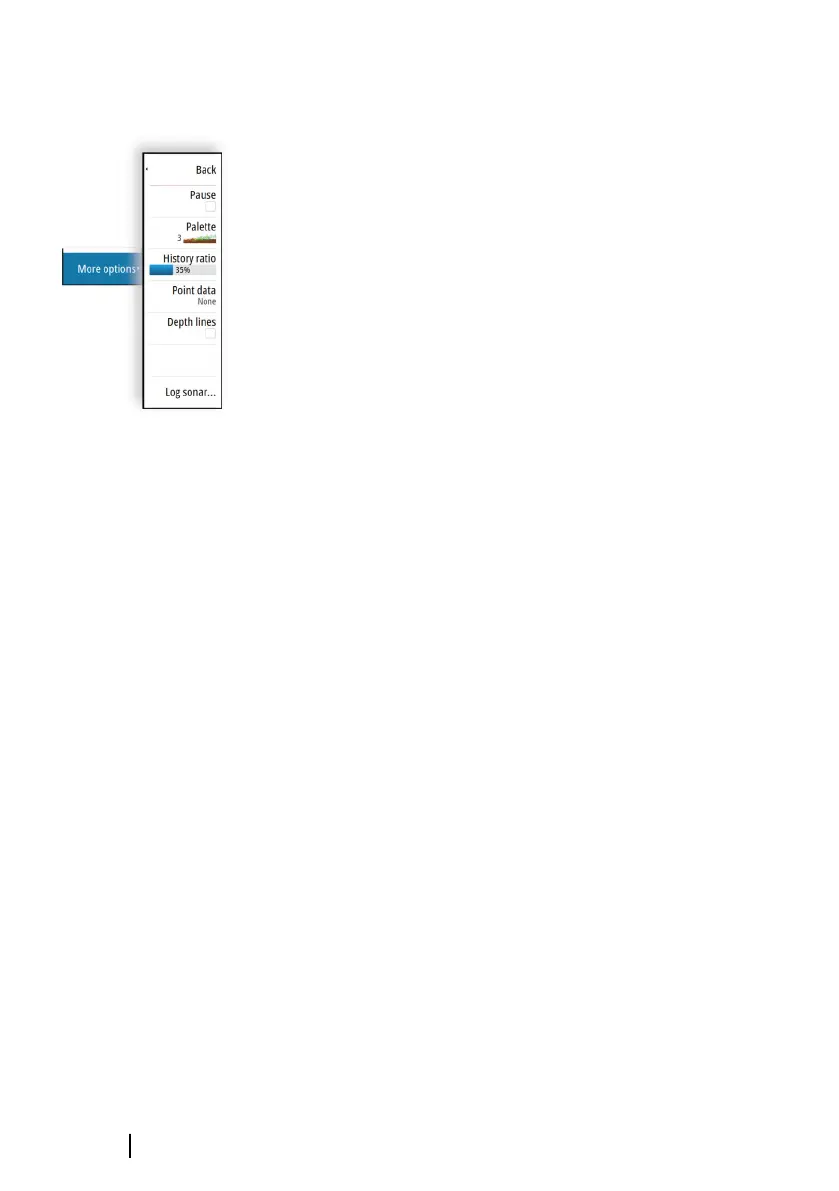

More options
Pause
Pauses the image, allowing you to examine the image in detail.
The pause function stops the echosounder from pinging. The
system is not collecting data when paused in this manner.
Palettes
Use for selecting the image's color palette.
History ratio
Controls how much sounder history is shown behind the boat. The
higher the ratio, the more history will be shown.
Point data
By default, ForwardScan only shows the bottom. Select this option
to specify to view no sounder data points, all data points, or only
points (objects) in the water column.
Depth lines
Displays lines on the screen that make it easier to quickly estimate
depth and the underwater objects.
Recording ForwardScan data
Displays the record dialog. ForwardScan log data can be recorded
by selecting the correct file format (sl3) in the record dialog. For
more information, refer to "Recording log data" on page 149.
Heading extension
Use the chart heading extension to monitor ForwardScan on the
chart panel. Heading extension colors are based on the
ForwardScan alarm values.
174
ForwardScan | GO XSE/XSR Operator Manual
