High resolution bathymetry
Enables and disables higher concentration of contour lines.
Chart detail
• Full - displays all available information for the chart in use.
• Medium - displays minimum information sufficient for
navigation.
• Low - displays basic level of information that cannot be removed,
and includes information that is required in all geographic areas.
It is not intended to be sufficient for safe navigation.
Chart categories
Several categories and sub-categories are included. You can turn
on/off individually depending on which information you want to
see.
The categories listed in the dialog are dependent on the charts
used.
Shaded relief
Shades seabed terrain.
No contours
Removes contour lines from the chart.

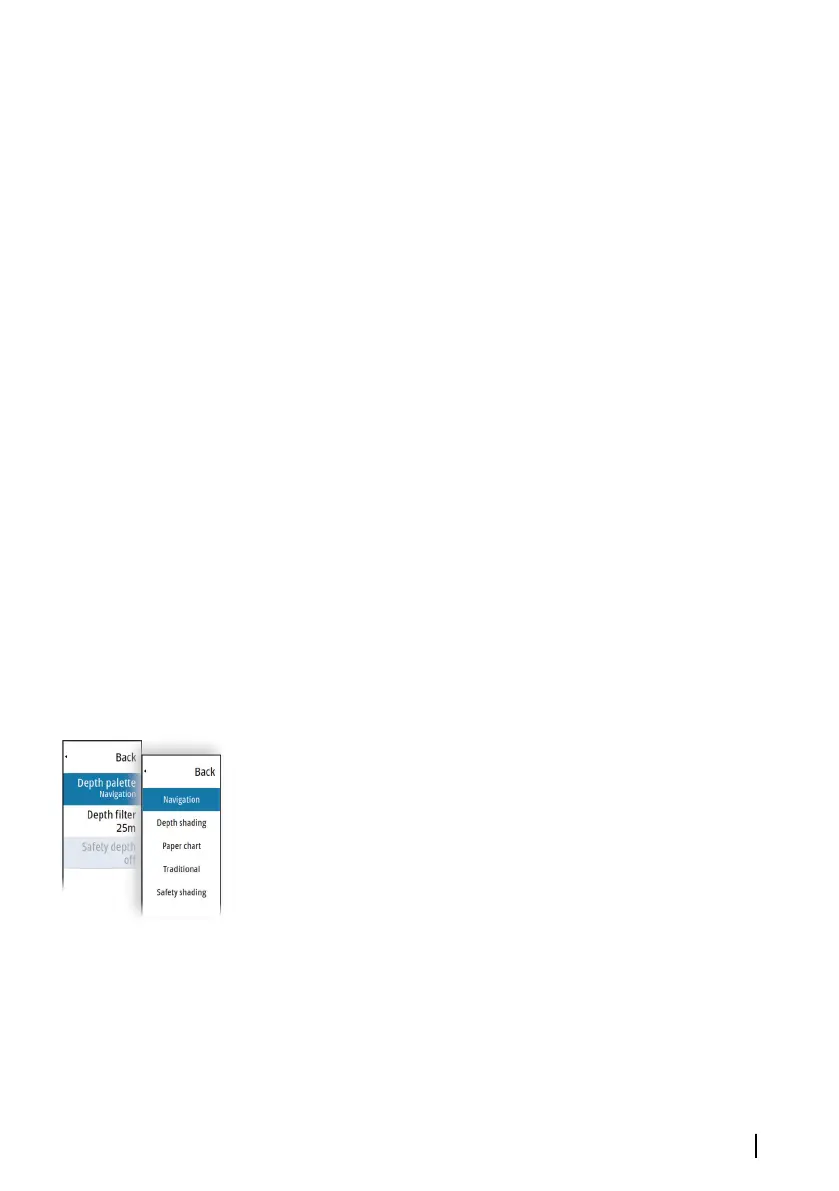

Depth palette
Controls the Depth palette used on the map.
Navigation
Color shades depth areas based on depth range values set by the
system. If the depth is within a certain range the system will select
the exact color of that range. It colors darker shades of blue in
shallower water and whiter in deeper water.
Depth shading
Color shades depth areas based on the depth value of the depth
range shade. The system will interpolate a color based on the depth
within the range. It colors darker shades of blue in deeper water and
whiter in shallower water.
Charts | GO XSE/XSR Operator Manual
