Turn patterns
The system includes a number of turn patterns, available when the
autopilot is in auto mode. The number of turn patterns depend on
autopilot computer.
Ú
Note: Turn patterns are not available if the boat type is set to
sail.

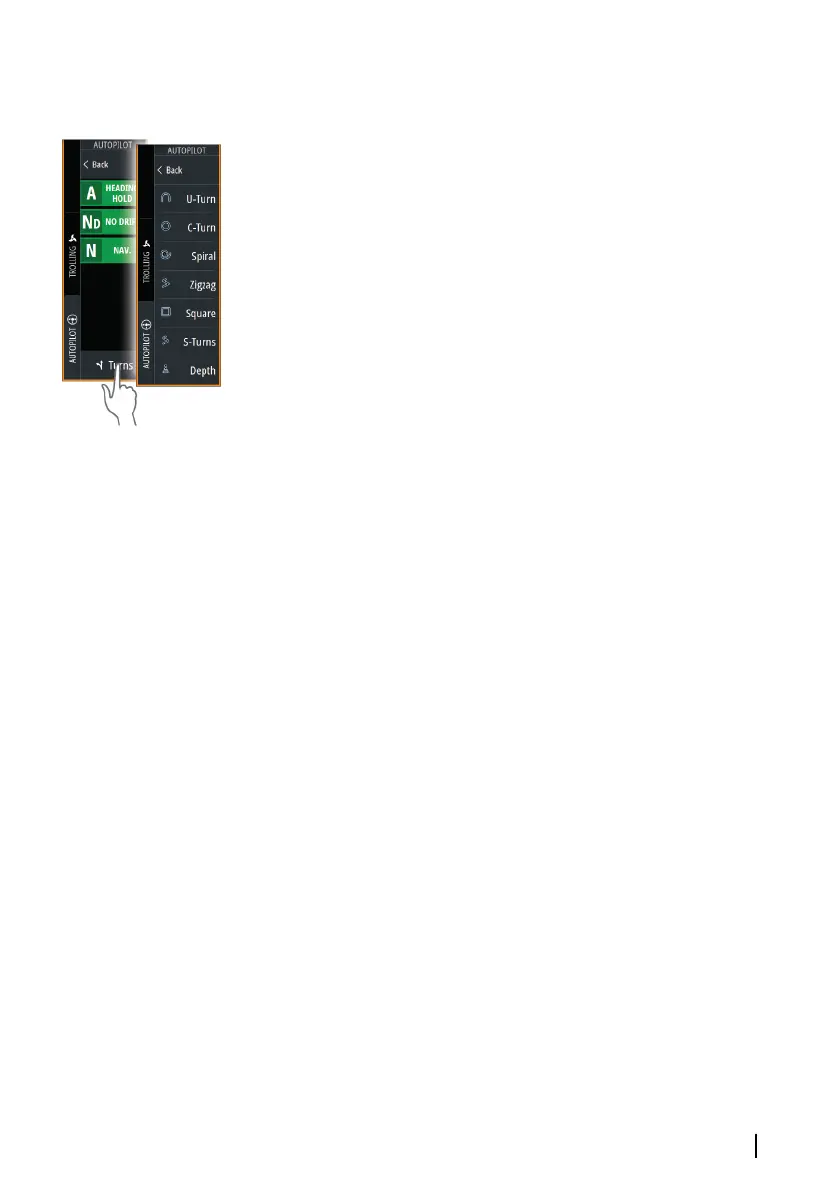

To start a turn
Select the port or starboard options in the turn dialog.
Turn variables
All turn patterns, except the U-turn, have settings that you can
adjust before you start a turn, or at any time when the boat is in a
turn.
U-turn
Changes the current set heading by 180°. When activated, the
autopilot is switched to Auto mode.
The turn rate is identical to Turn rate setting.
C-turn
Steers the vessel in a circle.
Turn variable:
• Rate of turn. Increasing the value makes the vessel turn a smaller
circle.
Spiral
Makes the vessel turn in a spiral with a decreasing or increasing
radius.
Turn variables:
• Initial radius
• Change/turn. If this value is set to zero, the boat will turn in a
circle. Negative values indicate decreasing radius while positive
values indicate increasing radius
Zigzag
Steers the vessel in a zigzag pattern.
Autopilot | GO XSE/XSR Operator Manual
81
