7.2.1 Minimum assembly dimensions
Make sure there is sufficient space for prod-
uct maintenance and possible disassembly
by adding a clearance of at least 50 mm to
each of the stated dimensions.
7.2.2 Mounting
Fasten the pumps 40PGAP and 40PGAS
with four M6 screws, 40PGAA-4L with four
M8 screws and 40PGAA-10L with eight M8
screws. The minimum allowable property
class for the fastening screws is 8.8.
Figure 6

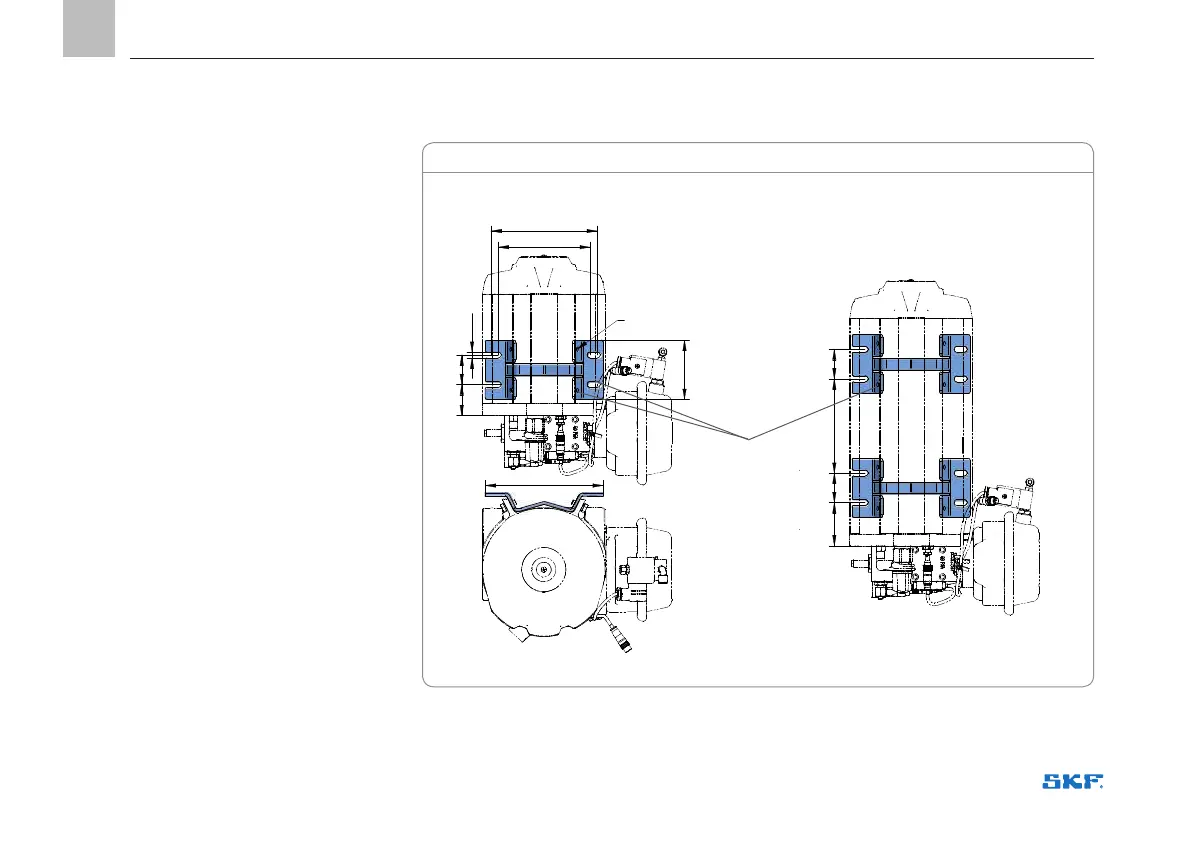

Installation details and tightening torques for 40PGAA
50 5016073
156
50
10
53
M8
200
100
180
160136
M8 max. 20 Nm
