8. Commissioning
EN
8. Commissioning
8.2 Using a refilling device
1. Make sure that the area surrounding of
the pumping unit is clean. Impurities in the
system prevent trouble-free operation and
cause damage at the lubrication point.
2. Remove the lubricant barrel’s (1) original
lid.
3. Place the lid (2) on top of the lubricant
barrel. Using fasteners (3) and wing screws
(4), fasten the lid onto the lubricant barrel.
4. Pass the pump (5) through the suction
port at the centre of the lid (6).
5. Connect the lubricant hose (7) to the
pump.
6. Fill the lubricant hose by pumping by
hand.
7. Connect the quick connector (8) to the
lubricant hose.
8. Connect the quick connector to the pump-
ing unit filling connector.
9. Fill the lubricant reservoir of the pumping
unit by pumping slowly by hand (A).
10. To prevent overfilling, the pumping unit
is equipped with a safety valve.
11. Turn the pump handle (9) to an upright
position (B), allowing the pressure to dis-
charge to the lubricant barrel.

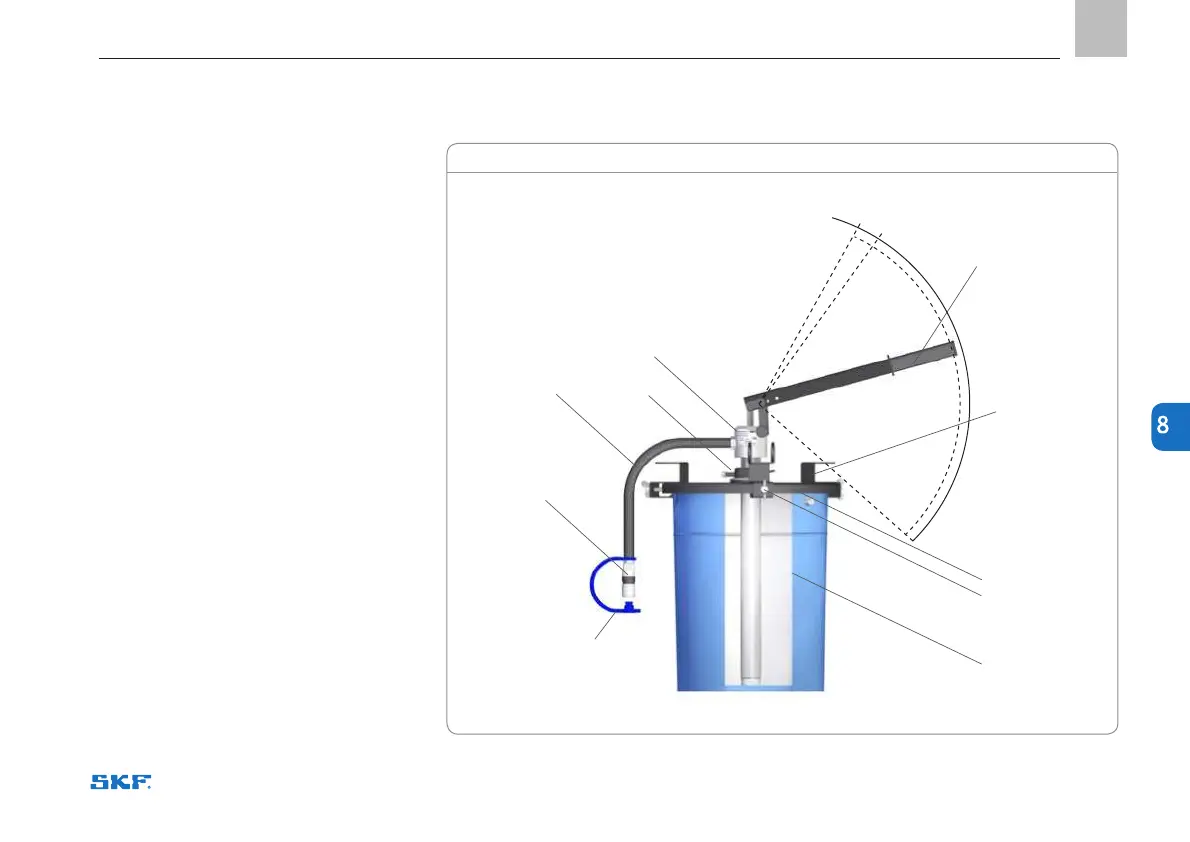

Figure 7
Filling device
Order code for the SKF filling device: 11600330
9
3
5
6
7
8
10
2
1
4
B ~5°
A ~100°
