8. Commissioning
EN
8. Commissioning
Figure 8

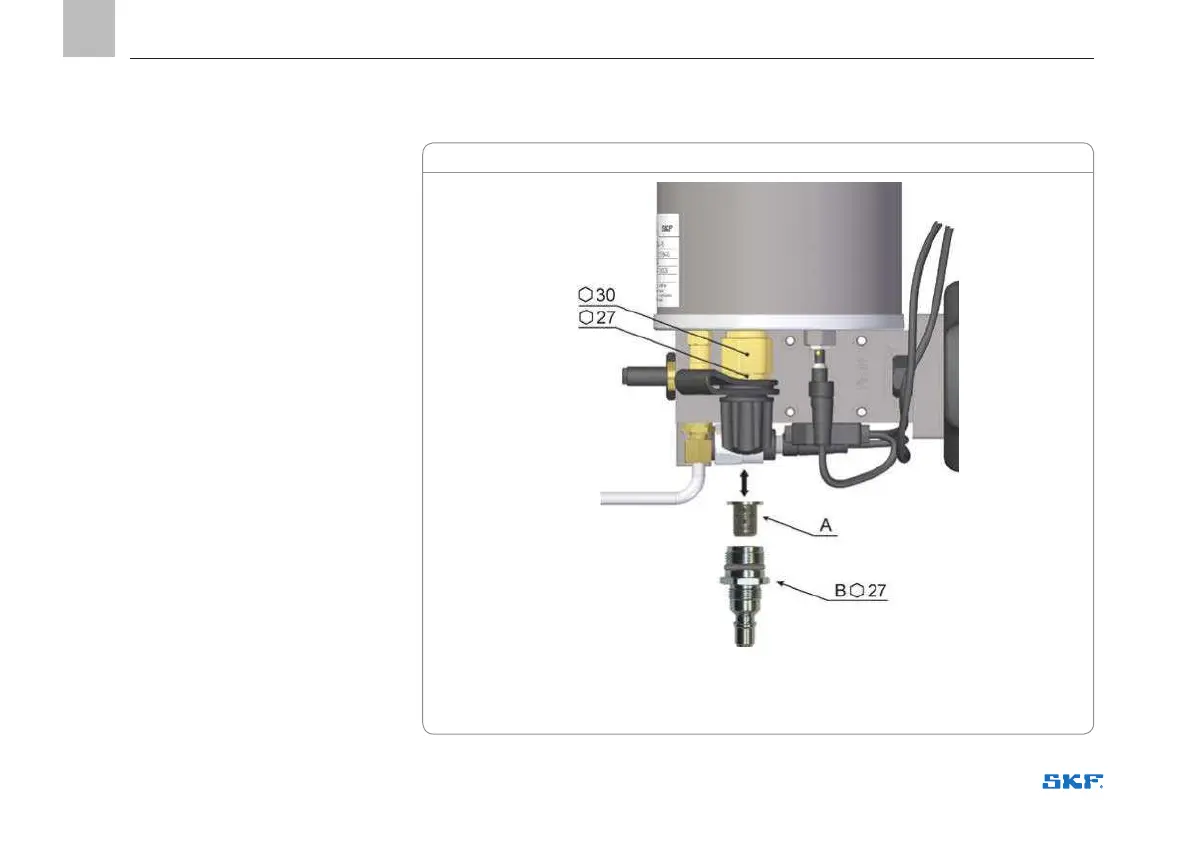

The figure shows the filling inlet screwed off the body (AV 30 and AV27), filter (A) and filling
inlet (B).
12. Disconnect the quick connector from the
pumping unit filling connector.
13. Fasten the protective cap onto the
pumping unit filling connector.
14. Fasten the protective cap (10) onto the
filling device quick connector.
15. Coil the hose onto the three fasteners
(3).
16. If there are problems when filling the
reservoir, it is likely that impurities in the
grease have clogged the filter (A) connected
to the filling nipple. Remove the filter by un-
screwing the filling connector from the body
as shown in figure 8 and clean or replace
the filter. It is recommended that the filter be
cleaned or replaced twice a year.
Barrel pump
• Suitable for pumping NLGI-000...NLGI-1
greases
• Output: approximately 25 cm3 per stroke
• Suitable for 18 kg barrels
Filling connector
