3. General description
3.1 SKF ST-102 control centre
The ST-102 control centre is used for con-
trolling the MonoFlex, DuoFlex or ProFlex
lubrication system to which it is connected.
The control centre is configured for use in
the relevant lubrication system using jumper
switches on its circuit board.
CAUTION
Please read and follow the safety instruc-
tions included this manual and the Safety
and general instructions in the manual for
SKF lubrication systems. Failure to follow
these instructions may result in serious
injury or damage to the lubrication system
or the lubricated equipment.
The ST-102 control centre also includes a
function button for controlling the lubrication
system and accessing various monitoring
functions. There are three LED indicators
above the function button: line indicators 1
and 2 and pump indicator P. These indicators
indicate the current stage of the lubrication
cycle. The lubrication cycle, maximum pres-
surisation time and other lubrication system
timing parameters are also set using either
the function button and the LED indicators
or rotary switches on the circuit board.
The ST-102 control centre includes a power
failure memory. Therefore, if there is a pow-
er outage, the program will continue from
the stage at which it was when the outage
occurred. Furthermore, if the control centre
is in alarm mode during the outage, the line
which generated the alarm will automatic-
ally be lubricated. This way, the system can
recover automatically from alarm status
without being reset by the user.

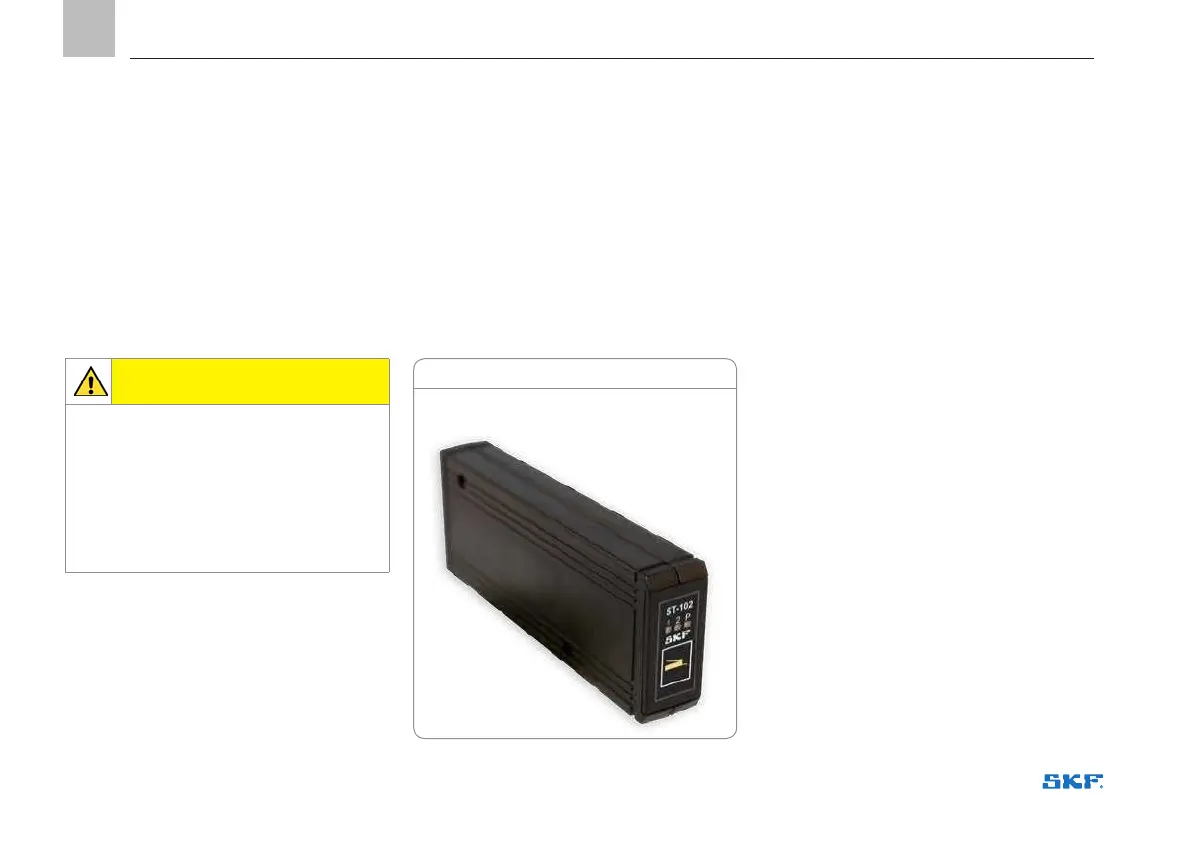

Figure 1
ST-102 control centre
