INTEGRATION WITH SKF @PTITUDE OBSERVER
IMx-1 system configuration
SKF Enlight Collect IMx-1 System
User Manual
Revision F
Dynamic measurement interval alarm will measure on:
Tuesday and Friday. Over-night from 13:30 to 04:00, Every 12 hours.
[13:30, 01:30]
If the measurement starts on Tuesday or Friday, all measurements planed after
midnight (00:00) will execute on Wednesday or Saturday, although these days are
not marked in the user interface.
If the measurement starts on any other day, the 01:30 measurement on Tuesday and
Friday will not be executed because Monday and Thursday are not marked.
It’s not possible to configure a schedule with no dynamic measurements.
As soon as an alarm is triggered, the gateway will switch to the alarm schedules.
Note that the ‘Every hour’ selection for dynamic data is only available where the user
has selected the same setting for the respective, Interval or Interval Alarm Trend
storage setting.
If ‘Every 24 hours’ selection is made on all available options in Trend and Dynamic
measurements, the user must set the time in the Active time period. The
measurement is performed in the time specified.
Be aware that the frequency of data collection affects sensor power usage and that
shorter acquisition intervals will always tend to reduce battery life.
Operating condition:
Amplitude gating: To reduce the total amount of data sent from sensors, amplitude
gating in the gateway checks the overall acceleration value received from a sensor
after a scheduled measurement request. If the amplitude is below a configurable
threshold, the gateway does not retrieve any associated time waveforms from the
sensor. Values accepted in the Gating threshold field range between 0 and 50 g.

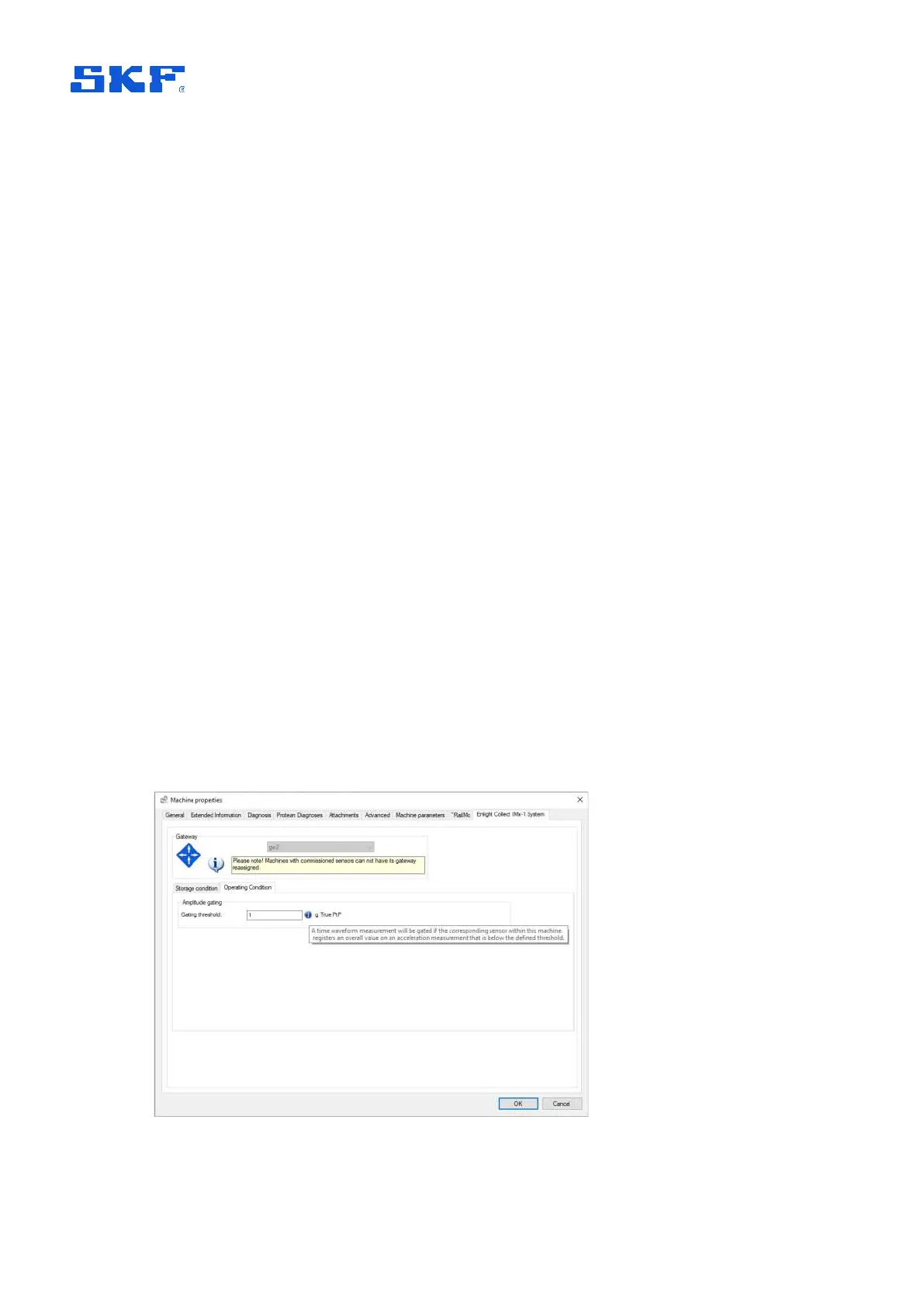

Figure 24 Machine properties, Enlight Collect IMx-1 System tab example Operating condition
