CONTROLS, INSTRUMENTS AND EQUIPMENT

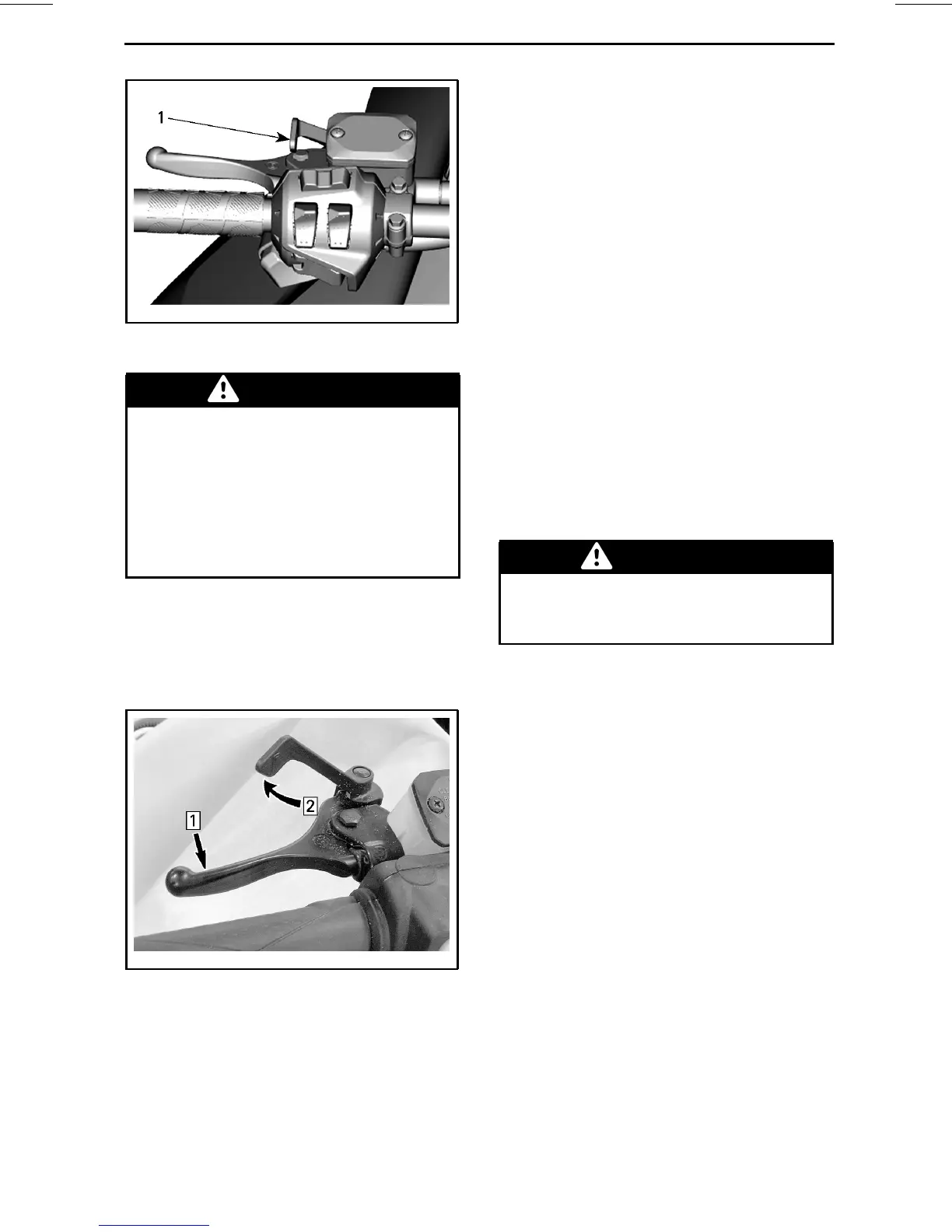

mmo2014-004-001_b
TYPICAL
1. Parking brake lever
WARNING
Make sure parking brake is fully
disengaged before operating the
snowmobile. When you ride the
vehicle, brake pads that are caused
to drag by a continuous pressure
on the lever m ay cause damage to
the brake system and cause loss of
braking capacity and/or fire.
To Engage Parking Brake
Apply and hold brake, then lock brake
lever u sing the parking brake lever as
shown.
mmo2009-005-006_a
TYPICAL — E N GAGE MECHANISM
Step 1: Apply and hold regular brake
Step 2: Lock brake lever usi
ng pa rking bra ke
lever
To Release Parking Brake
Squeeze brake lever. Parking brake
lever will auto matically re turn to its
original position. Always release park-
ing brake before riding.
6) Engine Cut-Off Switch
The engine cut-off switch is located to
on the LH side of console.
The tether cord cap must b e securely
snapped to the engine cut-off switch
to allow vehicle operation.
NOTE: After engine starting, 2 short
beeps should be heard if a pro-
grammed D.E.S.S. key (tether cord
cap) is correctly snapped on engine
cut-off switch. If another beep code
is heard, refer to
MONITORING SYS-
TEM
for D.E.S.S. malfunction codes
information.
WARNING
Always attach the tether cord eye-
let to clothing before start ing the
engine.
Pulling the tether cord cap from the
engine cut-off switch shuts the engine
off.
D.E.S.S. (Digitally Encoded Security
System)
The tether cord cap has an integrated
D.E.S.S. key to provide you and your
snowmobile with the equivalent secu-
rity of a conventional lock key.
The D.E.S.S.keycontains an electronic
chip which features a unique perma-
nently memorized digital code.
Your a utho r ized Ski-Doo dealer has pro-
gramed the D.E.S.S. of your snowmo-
bile to recognize the D.E.S.S. key in the
tether cord cap to allow vehicle opera-
tion.
If another tether cord is used without
programming the D.E.S .S., the eng ine
will start b ut will not reach drive pulley
engagement speed to move vehicle.
