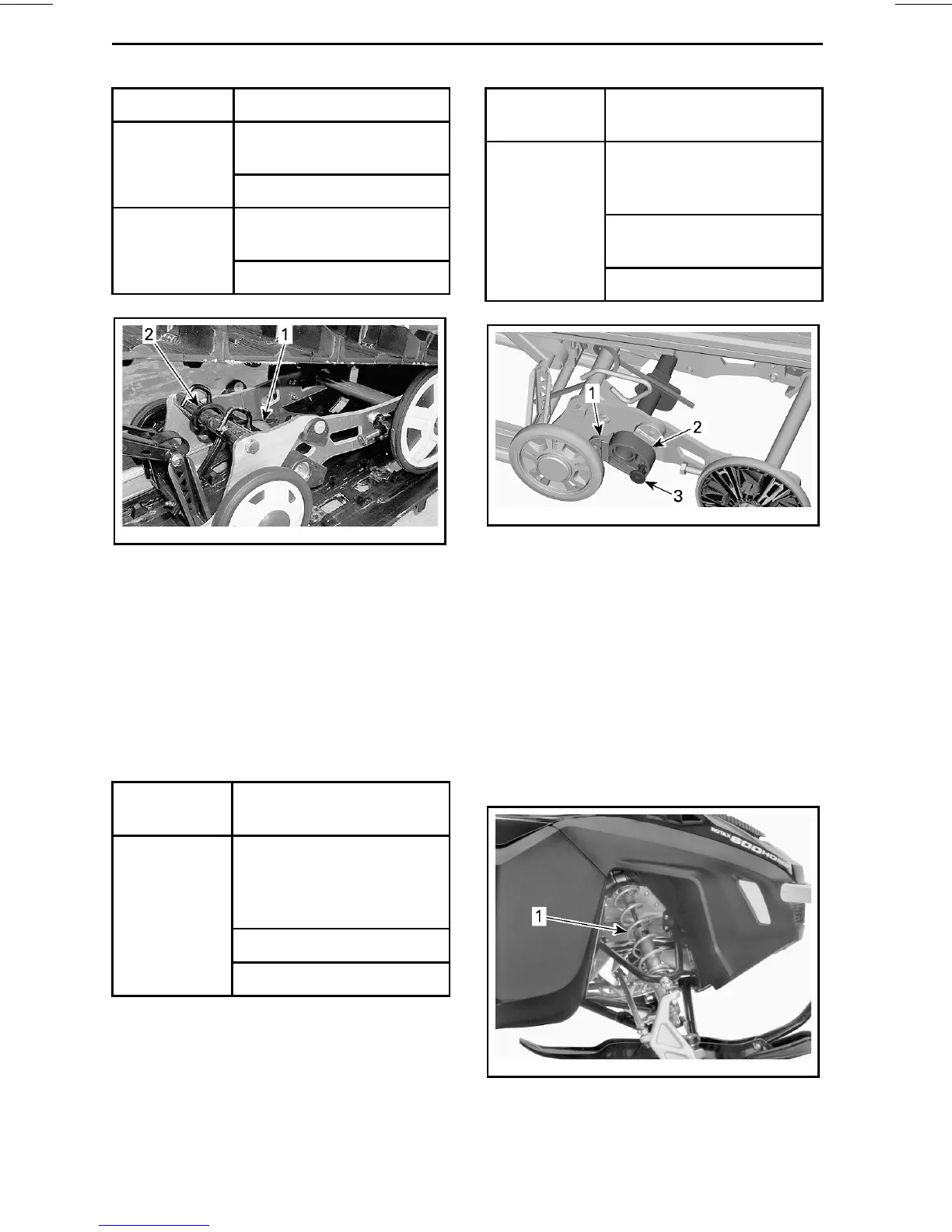

Ski-Doo Expedition LE - Front Suspension Adjustment

TUNE YOUR RIDE
ACTION RESULT
More track surface on
the groun d
Increasing
preload
Less extension l ift
Better reverse capability
especially in deep snow
Decreasing
preload
More extens ion lift
mmo2008-005-019_a
TYPICAL
1. Spring
2. Adjustment cam
Rear Suspension Extension
Stabilize r Cams
Stabilizer cam is used to control the
suspension extension stroke.
Stabilizer cam setting has an effect on
manoe uvrability, traction and revers e
capab ility.
CAM
SETTING
RESULT
Allows free movement
of the suspension
extension on its entire
stroke
General use
Free
Good reverse capability
CAM
SETTING
RESULT
Locks the suspension
extensioninlinewiththe
suspension rails
Better traction, full track
contact surface
Locked
Better towing capability
mbl2012-004-001_a
1. Stop block
2. Stabilizer cam
3. Lock
Front Suspension
Adjustment
Front Springs
Front spring preload has an effect on
front suspension firmness.
Front spring preload also ha s an effect
on the ste ering behavior.
mmo2009-004-031_a
TYPICAL - FRONT SUSPENSION
1. Front springs for handling
