Ski-Doo Expedition LE - 25 Storage Box (Expedition SE Model)

CONTROLS, INSTRUMENTS AND E QUIPMENT

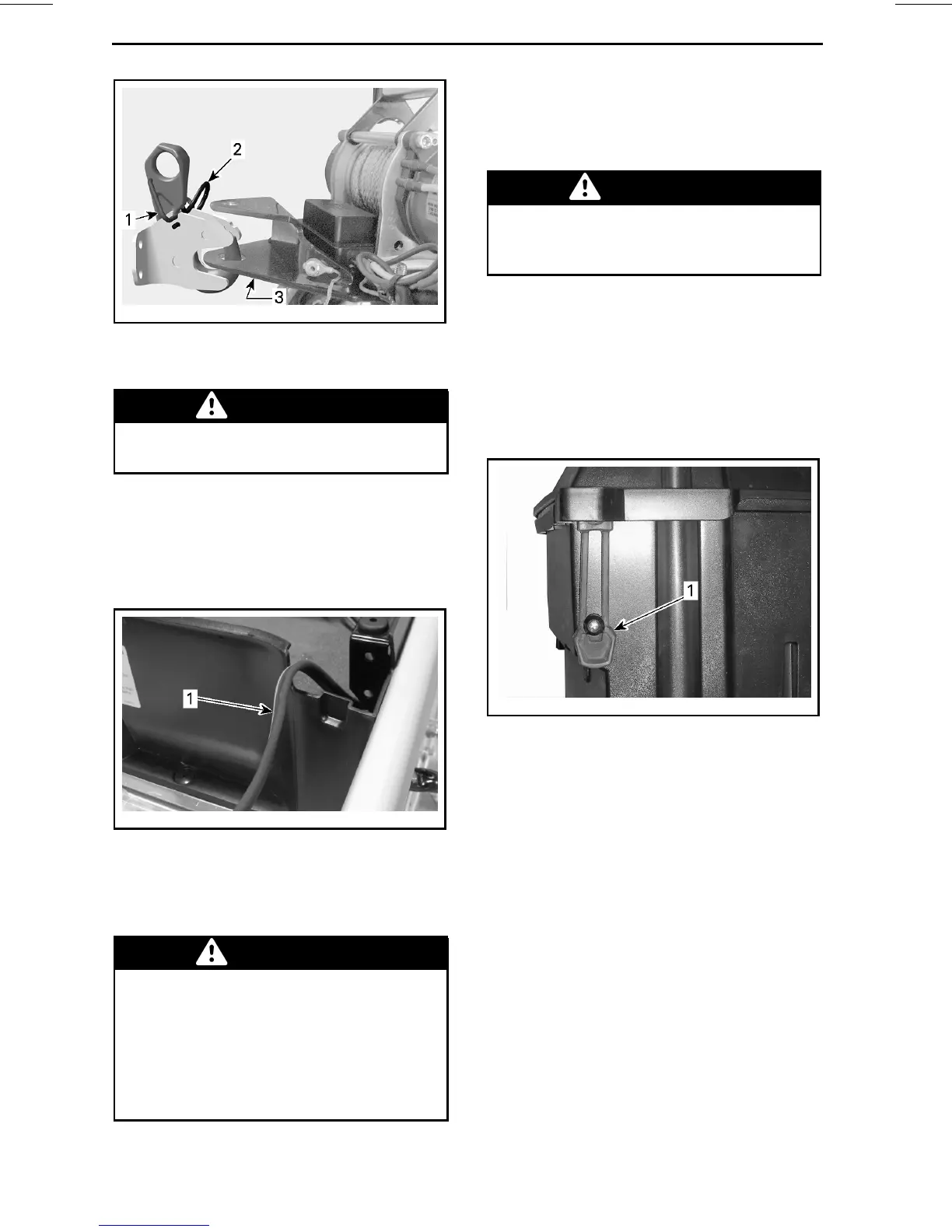

mmo2011-006-013_a
1. Lock mechanism
2. Winch lower mounting plate
3. Hairpin clip
WARNING
Never operate winch without the
hitch hook securely locked.
Winch Electrical Connection
1. Pass the vehicle electrical wire over
the recess on the RH rear of storage
compartment.
mmo2010-002-007_a
REAR OF STORAGE COMPARTMENT
1. Vehicle electrical wire
2. Connect the vehicle and winch elec-
trical wires together.
WARNING
Refer to the manufacturer's man
-
uals (
INSTALLATION GUIDE AND
THE BASIC GUIDE TO WINCHIN G
TECHNIQUES
)providedwit
h your
snowmobile. Always follow safety
measures as per manuals safety
messages.
Winch Operation
Refer to t he winch m anufac turer man-
uals.
WARNING
Always follow safety measures as
per winch manufacturer manuals
safety messages.
25) Storage Box
(Expedition SE M odel)
Storage Box Opening/Closing
To open storage box lid, release both
rubber ties, then lift lid up.
mmo2010-002-011_a
1. Rubber tie
To close, push lid down in order to in-
sert the lid pins into the box grommets.
Attach the rubber ties.
Storage Box Removal/Installation
To remove storage box from vehicle,
open lid and remove the four screws
retaining storage box to the rear rack.
Keep the screws for installation.
62
