Ski-Doo Expedition LE - Page 63

CONTROLS, INSTRUMENTS AND EQUIPMENT

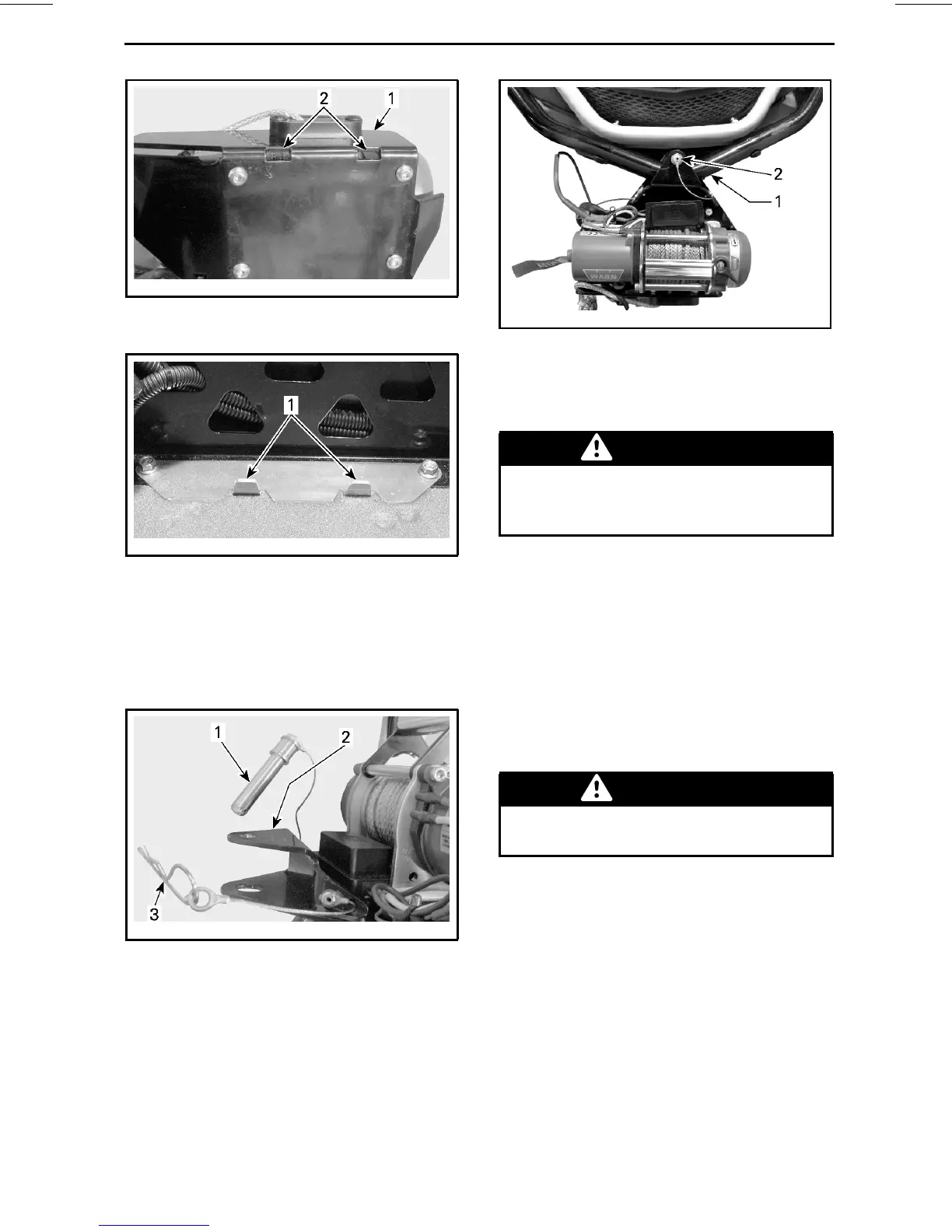

mmo2010-002-008_a
1. Mounting plate
2. Slots
mmo2010-002-009_a
INSIDE STORAGE COMPARTMENT
1. Tabs
3. Close storage compartment lid se-
curely.
Winch Installation on the Vehicle
mmo2010-002-005_a
1. Pin
2. Mounting plates
3. Hairpin clip
Winch Installation at Front
1. Place the front bumper between
the upper and lower winch m ount-
ing plates.
2. Insert pin through mounting plate
holes behind bumper bar.
mmo2010-002-006_a
FRONT INSTALLATION
1. Front bumper
2. Pin
3. Lock pin using the hairpin clip.
WARNING
Never operate winch without the
pin securely locked with the hair-
pin clip.
Winch Installation at Rear
Except European M odels
1. Place the hitch tab between the
winch upper and lower m ounting
plates.
2. Insert pin through winch m ounting
plate holes and hitch tab hole.
3. Lock pin using the hairpin clip.
WARNING
Never operate winch without the
pin securely locked.
European Models
Attach the winch lower mounting plate
to the hitch. Refer to
HITCH in this s ub-
sectionfor proper attaching procedure.
_______________
61
