Ski-Doo Expedition LE - 29 Upper Side Panels; 30 Lower Side Panels

CONTROLS, INSTRUMENTS AND EQUIPMENT
3. Hook the rubber ties.
29) Upper Side Panels
WARNING
Never operate engine with side
panels opened or removed from
vehicle.

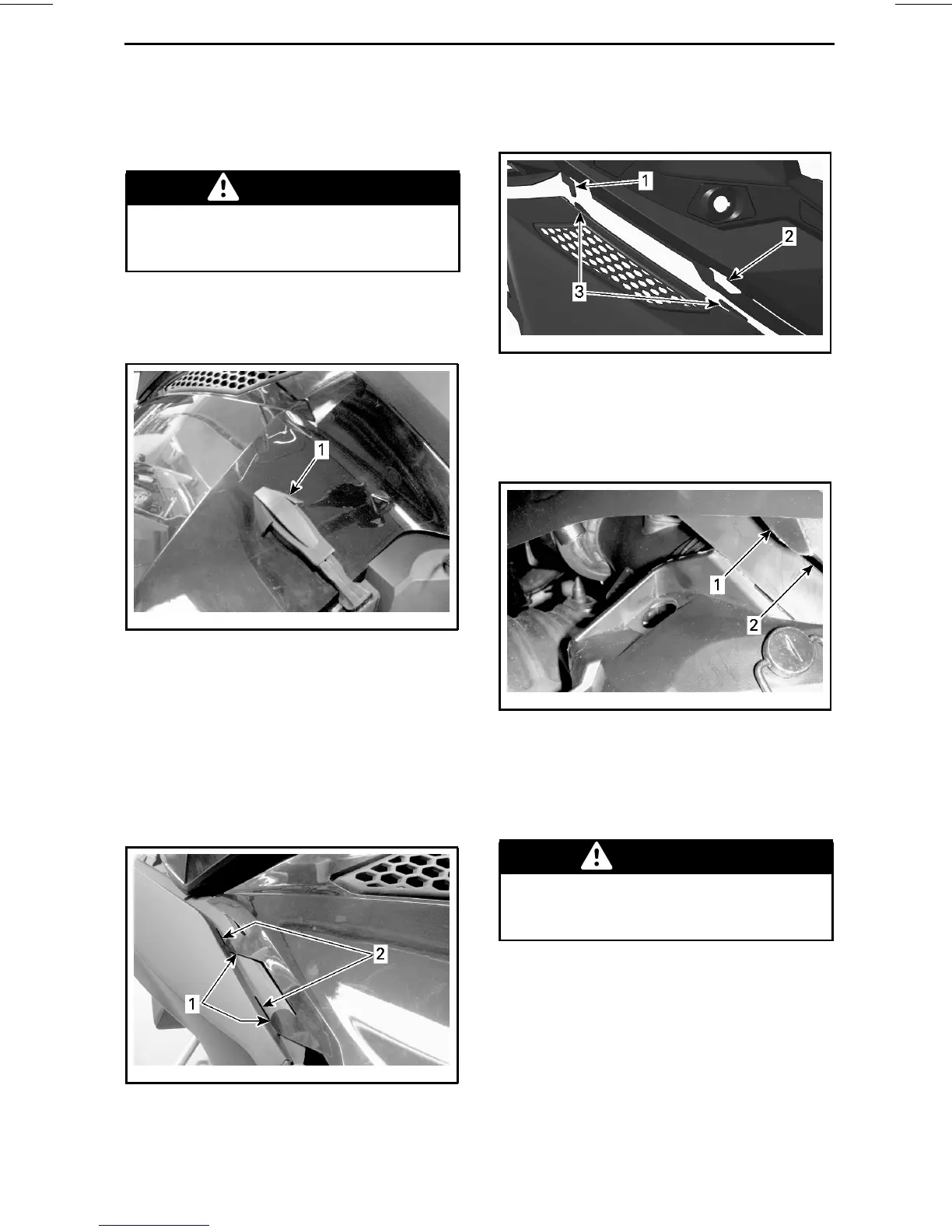

Upper Side Panel Removal
1. Unhook the rubber tie.
mmo2009-004-040_a
1. Rubber tie
2. Lift the rear portion of panel to free
the plastic tab f rom the cons ole.
3. Slide panel towards rear.
Upper Side P anel Installation
1. Insert the panel lower tabs into the
bottom pan slots.
mmo2009-004-042_a
1. Panel lower tabs
2. Bottom pan slots
2. Hook the panel top center tabs to
the console.
mmo2011-006-100_a
1. Console hook
2. Console slot
3. Panel center tabs
3. Insert the rear tab into the console
slot.
mmo2009-004-041_a
1. Rear tab
2. Console slot
4. Hook rubber tie.
30) Lower Side Panels
WARNING
Never operate engine with side
panels opened or removed from
vehicle.
Lower Side Panel Opening
1. Remove upper side panel as
ex-
plained above.
2. Unhook the rubber tie.
_______________
65
